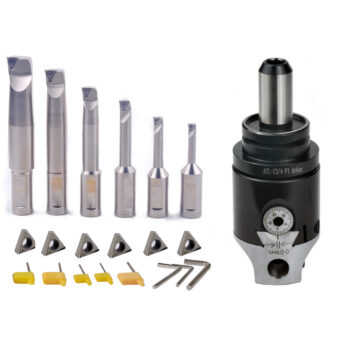

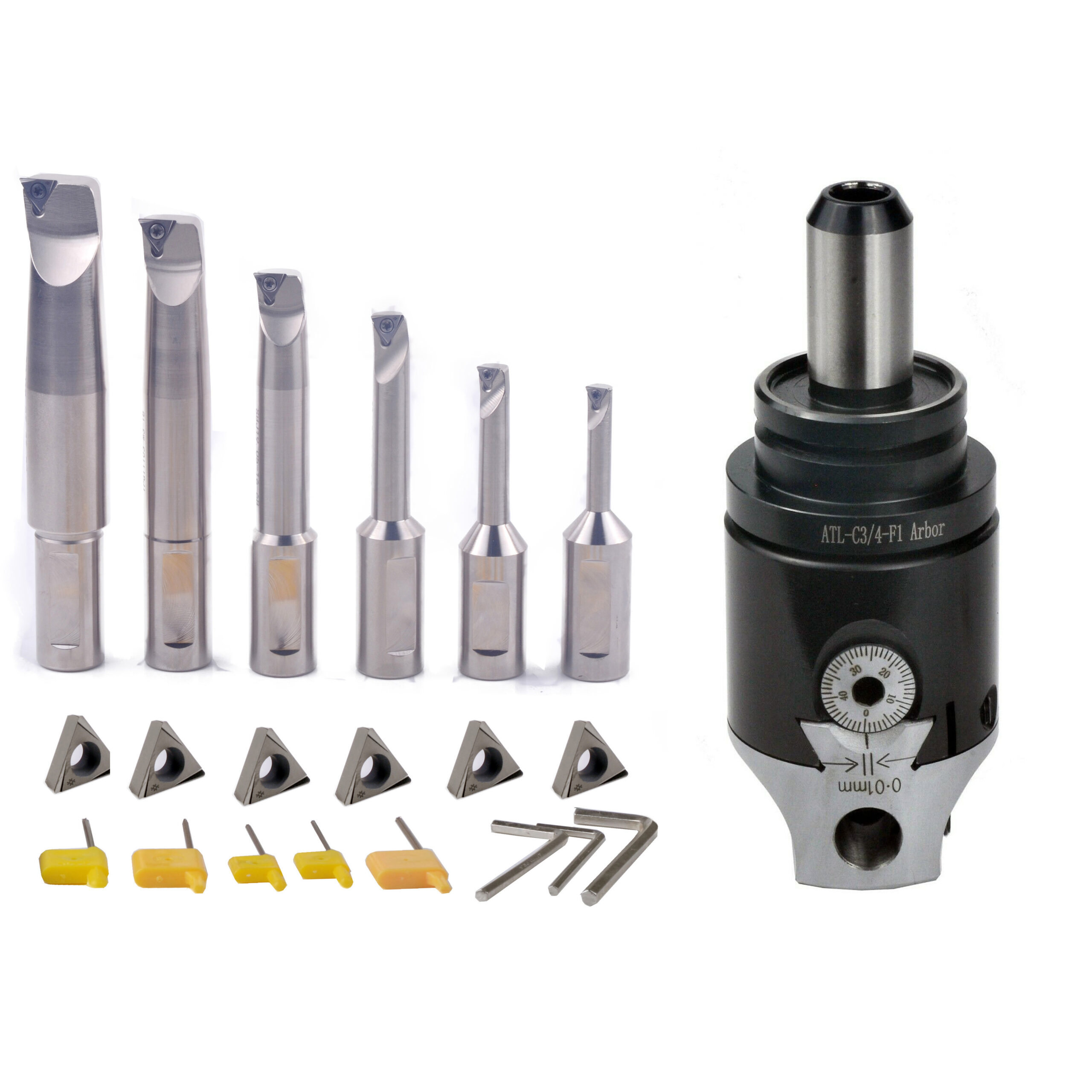

TTS3/4 2INCH BORING HEAD SET WITH 6PCS BORING BAR AND 6PCS BORING CARBIDE INSERTS

In Stock

SKU: ATC34BH6

$159.99

Wishlist
Compare

TTS 3/4  2INCH BORING HEAD SET WITH 6PCS BORING BAR AND 6PCS BORING CARBIDE INSERTS

Qty
Compare
Categories:

TTS3/4 2INCH BORING HEADSET WITH 6PCS BORING BAR AND 6PCS BORING CARBIDE INSERTS

MODEL TTS 3/4   TOOL HOLDER  RUN OUT (TIR) 0.0002″
HOLDER TYPE BORING HEAD BORING DIAMETER 2″
SHANK TYPE TTS 3/4 ,flange 1.50″groove  BORING HOLE ACCEPT 1/2

6PCS CARBIDE INSERTS ( 3TYPE  2pcs of each ) TBGT 06 ,TPGT 09 ,TPGT1103 …

MINI BORING:8MM(5/16)

MAX  BORING:100MM (4INCH)

6PCS BORING BAR

DESCRIPTION

INDEXABLE NO BORING RANG BORING DEPTH INSERTS BORING AP BORING FEEDmm/rev CUTTING SPEEDm/min WRENCH
BJ1208-32 8-12 32 TBGT0601** 0.05-0.20 0.05-0.010 100-200 T6
BJ1210-40 10 -13 40 TBGT0601** 0.07-0.25 0.05-0.010 100-200 T6
BJ1218-68 12 -17 52 TPGT0902** 0.07-0.25 0.05-0.015 100-200 T8
BJ1216-68 16-21 68 TPGT0902** 0.1-0.25 0.05-0.015 100-200 T8
BJ1220-83 20-130 83 TPGT1103** 0.05-0.2 0.05-0.015 100-300 T8
BJ1220-90 20-140 9- TPGT1103** 0.1-0.25 0.01-0.015 100-400 T8





                TPGT110303                                                            TPGT090204                                   TBBT060104



Weight 1.5 lbs
Dimensions 15 × 45 × 65 in
Measurement system

Inch (in)
Product Category

TTS Tool Holder
Shank Type

Straight
