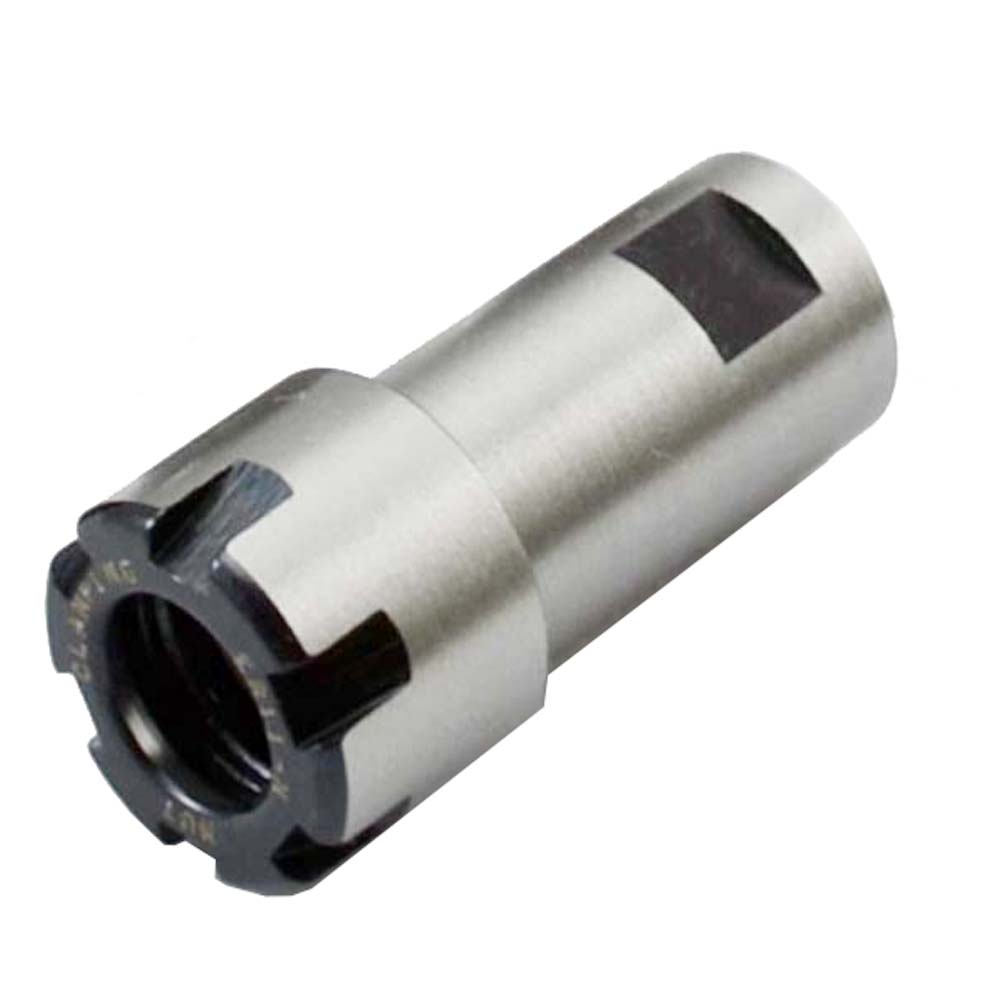

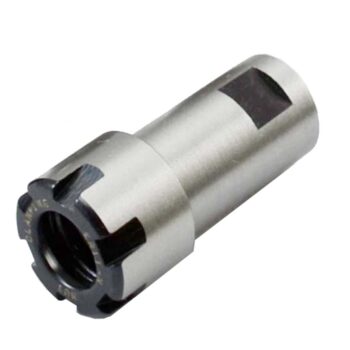

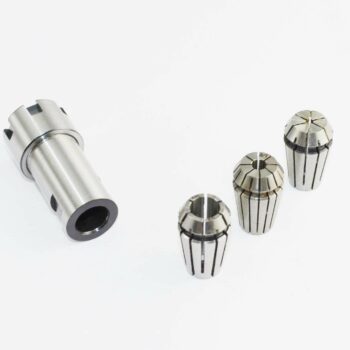

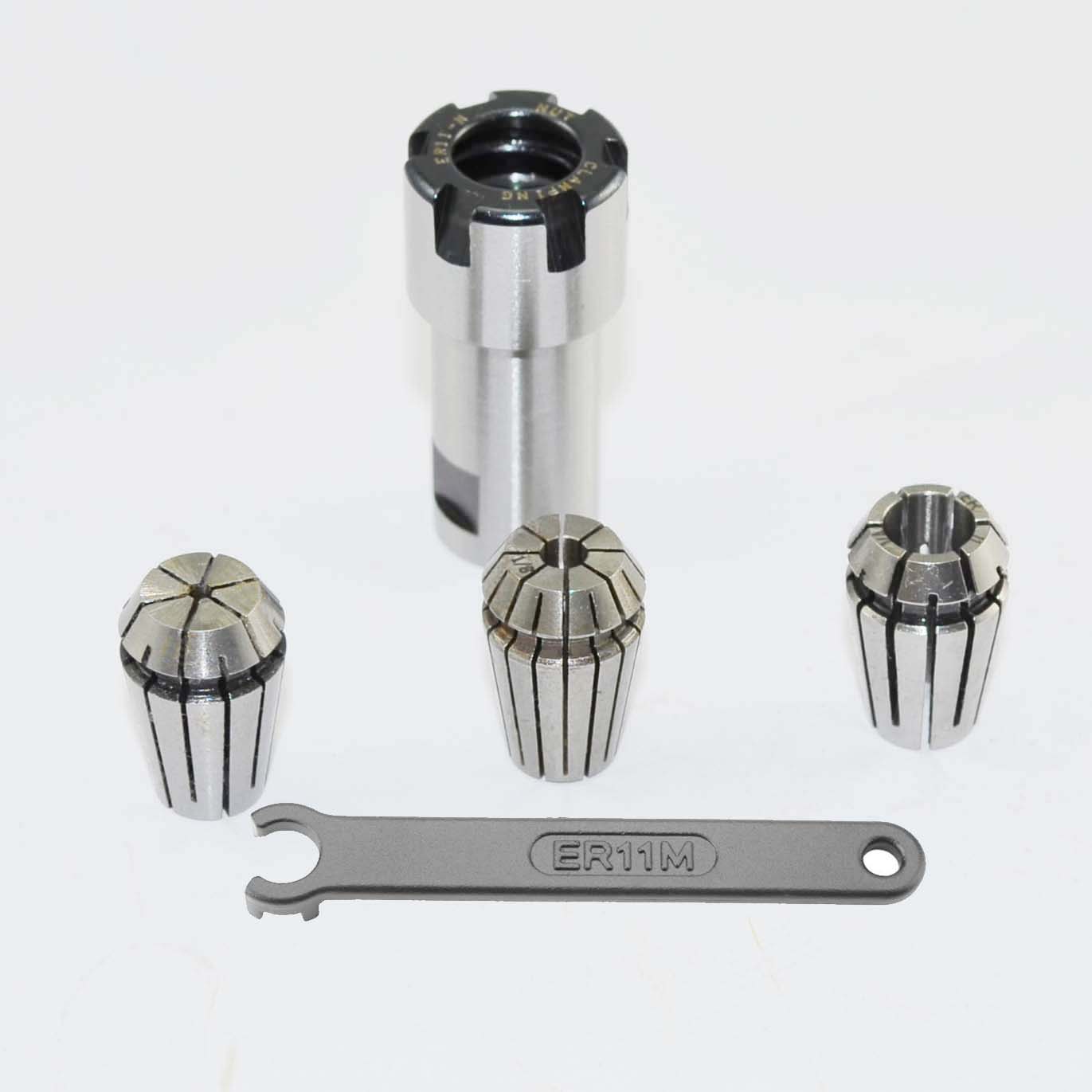

SHANK 1/2 ER11 1″ STRAIGHT SHANK TOOL HOLDER 3PC ER11 COLLET 1/4,3/16 ,1/8 SET
| MODEL | ER11 COLLET CHUCK | Â RUN OUT (TIR) | 0.0005″ | FLANGE DIAMETER | 0.5″ |
| HOLDER TYPE | ER COLLET CHUCK | CLAMPING RANGE | Â 1/16-1/4″ | CLAMPING SIZE | ER11 |
| SHANK TYPE | STRAIGHT TOOL HOLDER | DRAWBAR THREAD | NO | COLLET NUT | ER11M |
| BALANCE | MAX 12,000RPM | SHANK DIAMETER | 1/2 | COLOR | oxide black |
| OVERALL LENGTH | 1.5 | SHANK LENGTH | 1″ | Â COOLANT | Â NO |
SHANK 1/2 ER11 1″ STRAIGHT SHANK TOOL HOLDER 3PC ER11 COLLET 1/4,3/16 ,1/8 SET
For all er11 collets
Made from alloy steel and hardness is HRC55
Non Coolant thru all the shank
Nut included
b. Surface hardened structural steel: used to manufacture hard and wear-resistant surface parts and flexible parts, such as gears and shafts. In order to increase the toughness of the core of the part,
the carbon content in the steel should be low, generally 0.12 to 0.25%, and there is also an appropriate amount of alloy elements to ensure proper hardenability. Nitrided steel also needs to add alloy elements (such as Al, Cr, Mo, etc.) that are easy to form nitrides. Carburized or carbonitrided steel, after carburizing or carbonitriding at 850～950℃, quenched and used under low-temperature tempering (about 200℃). The nitrided steel is directly treated by nitriding
(480～580℃), and it is no longer quenched and tempered.
