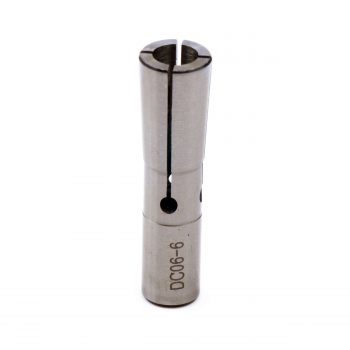

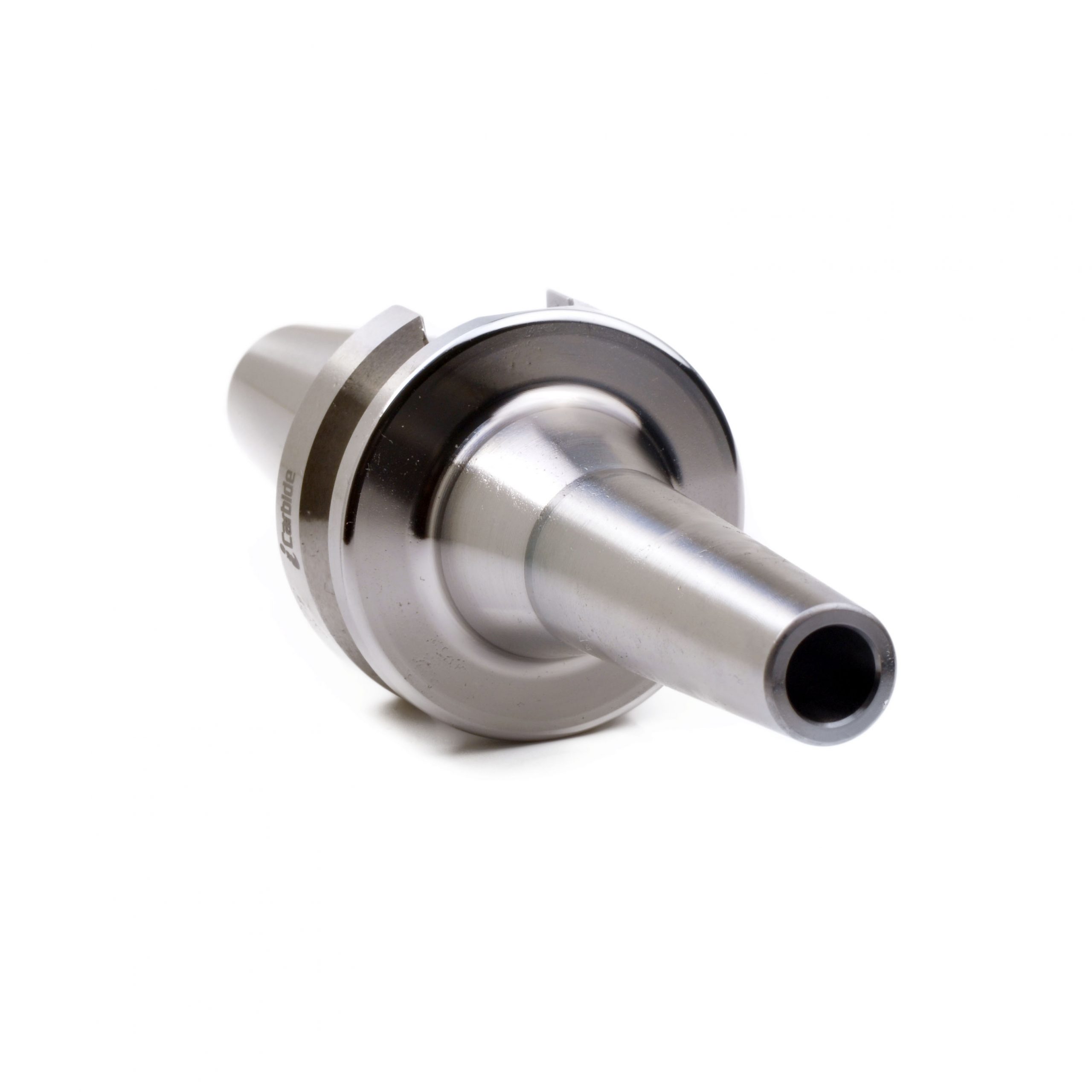

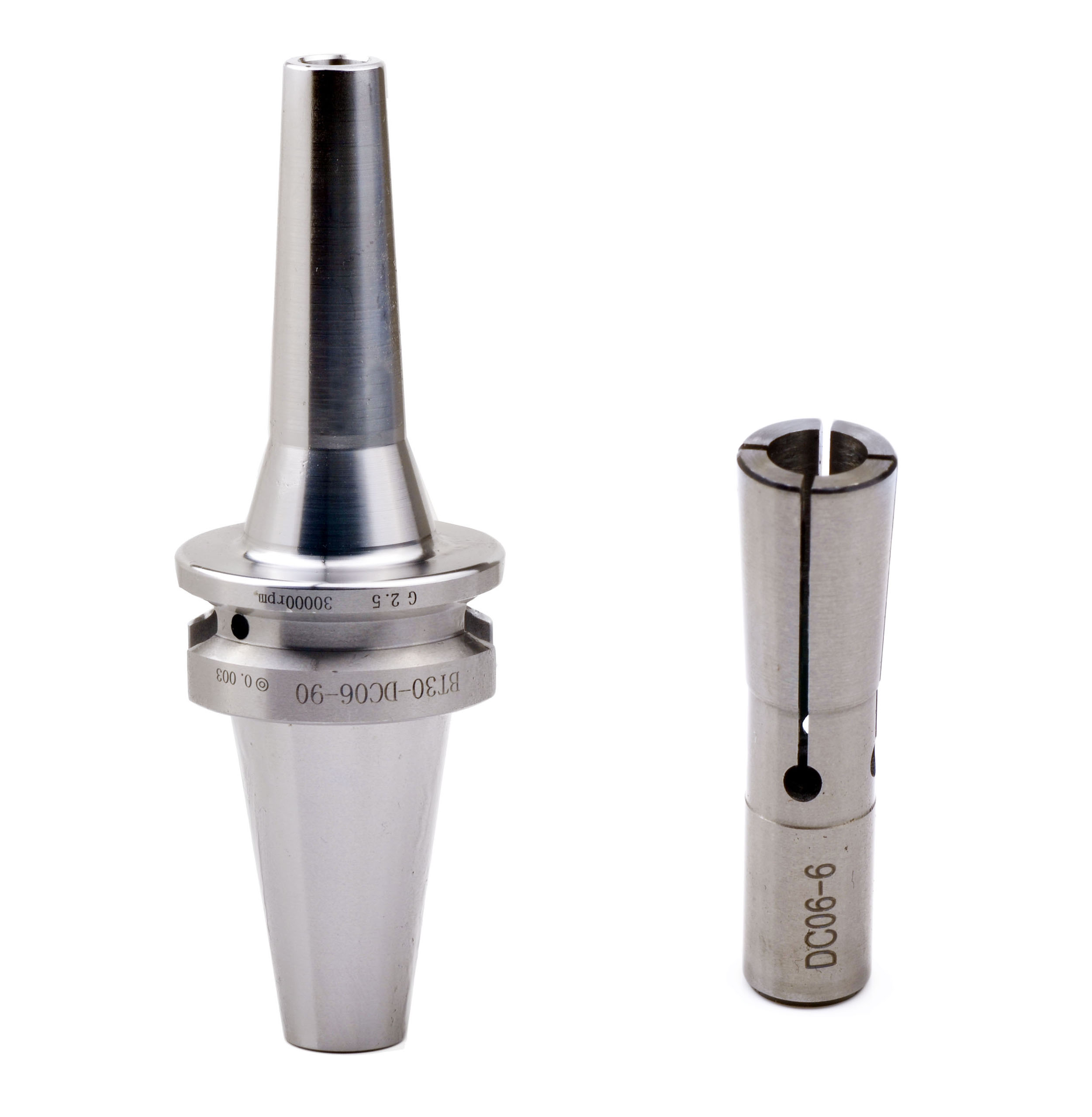

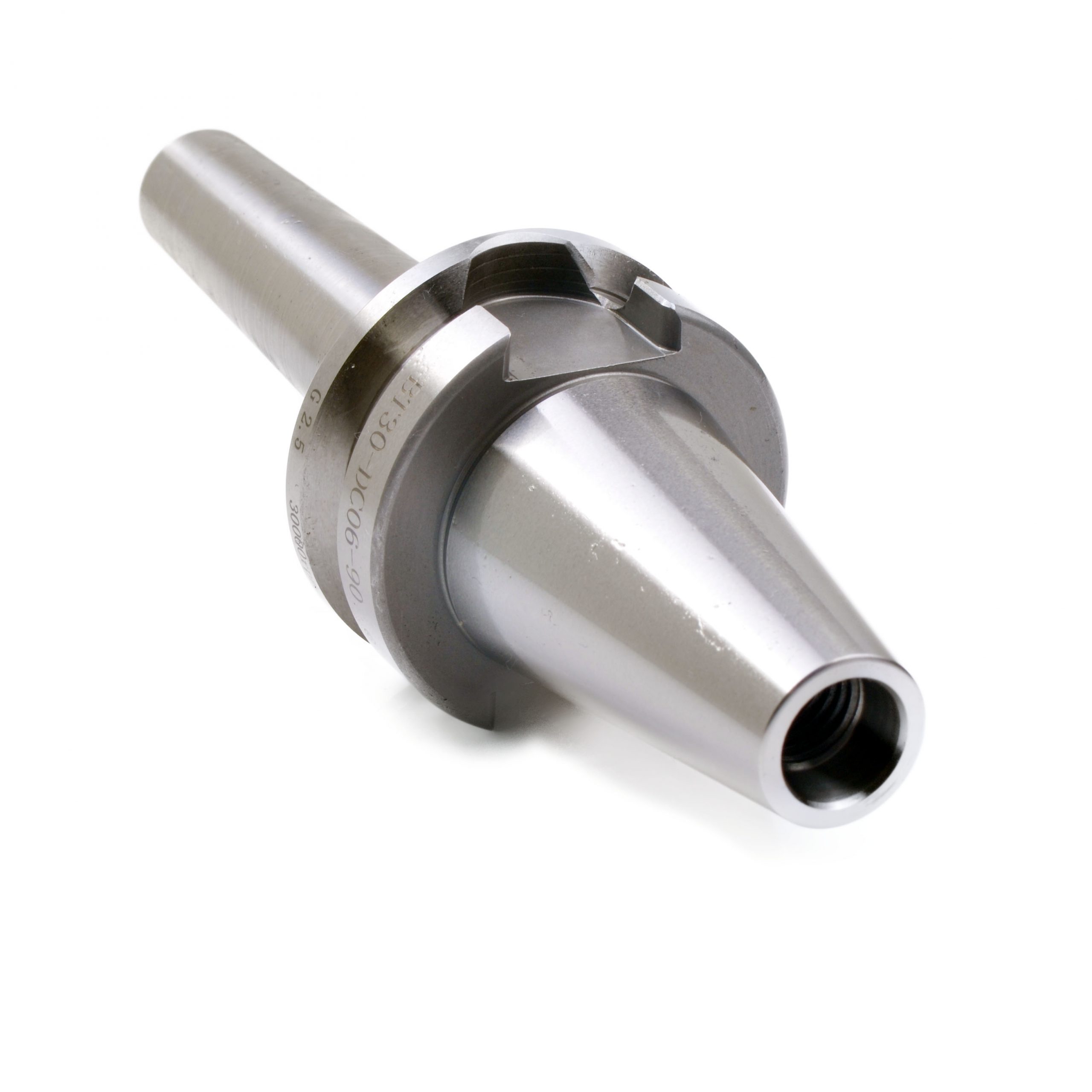

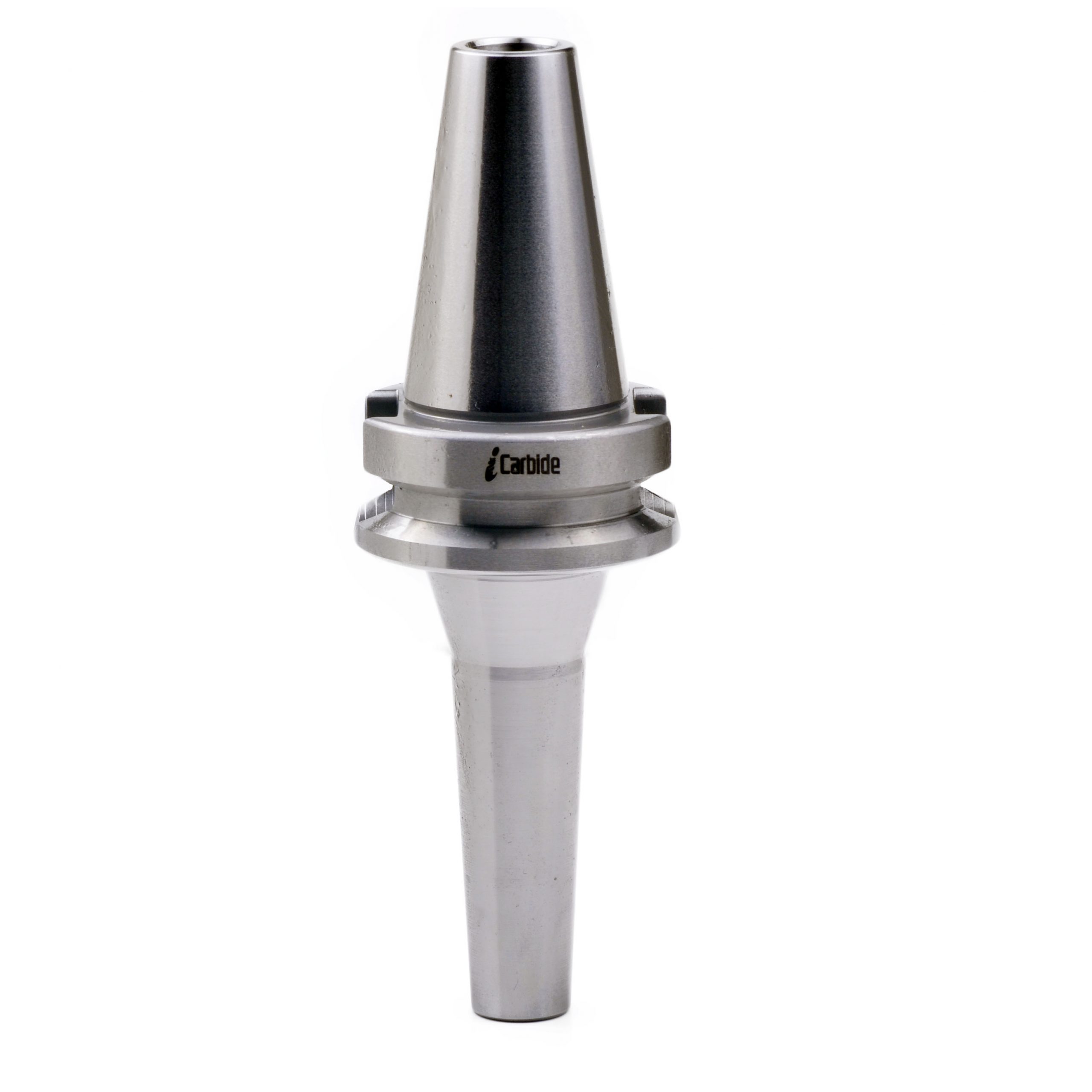

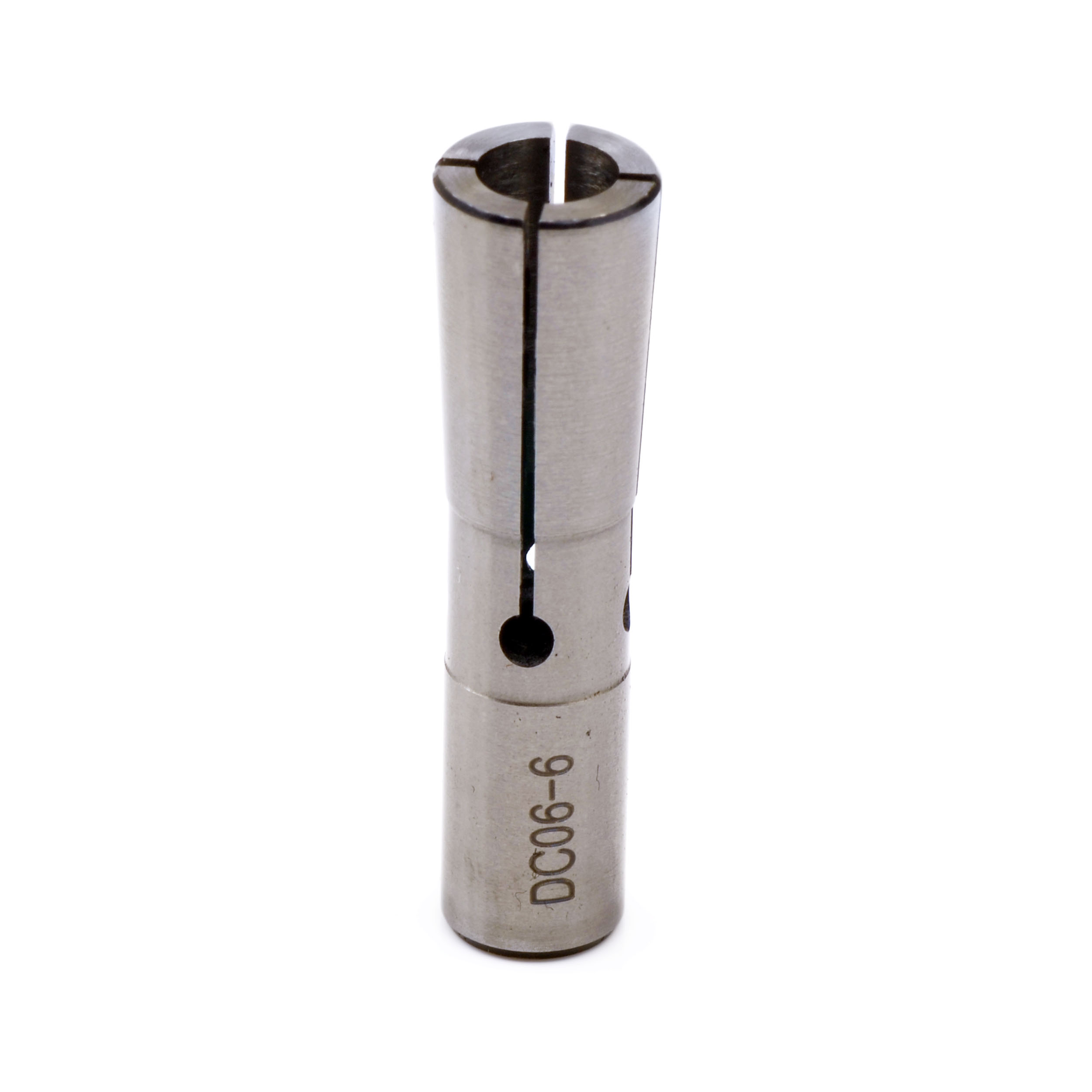

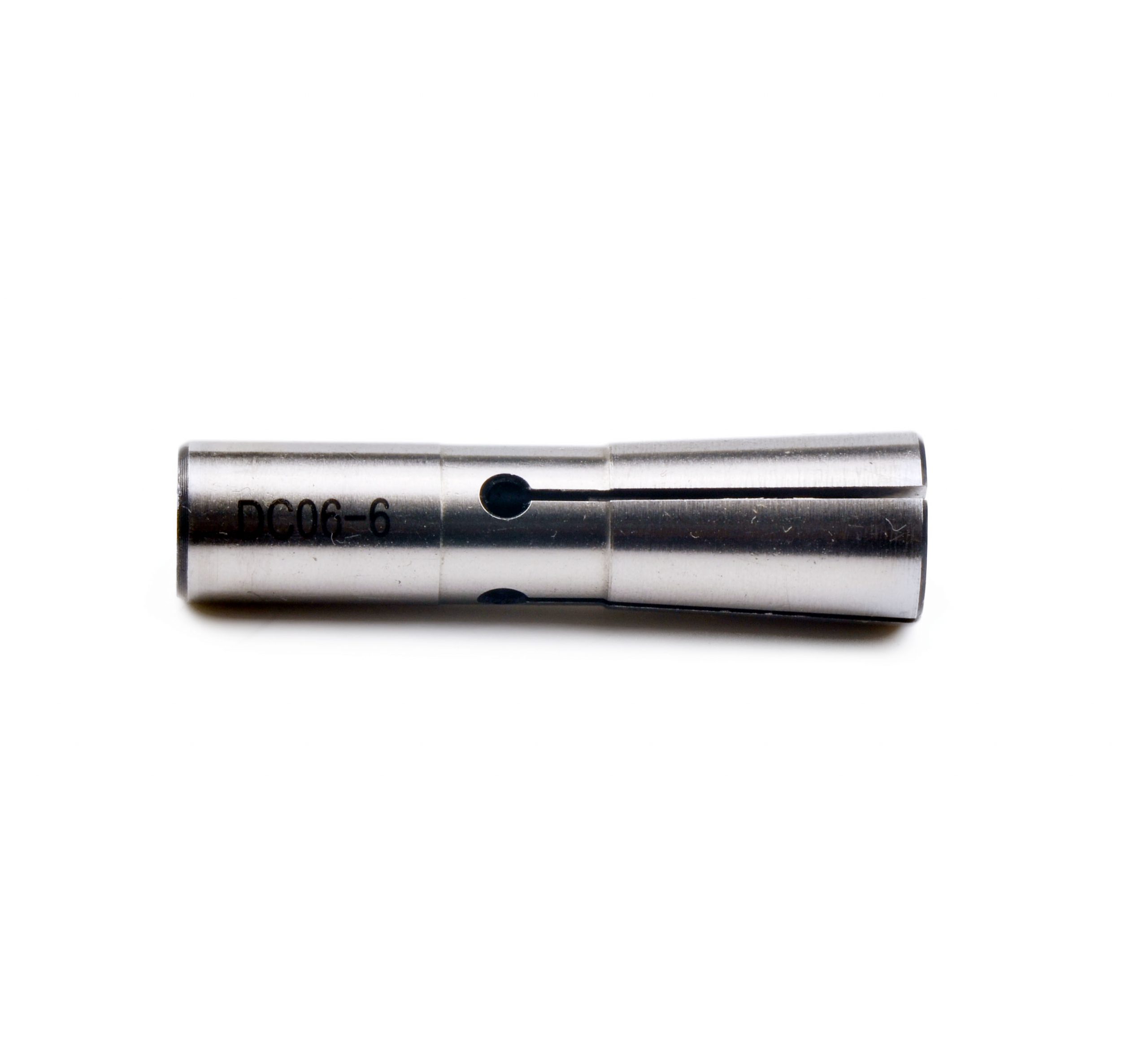

SET M12 BT30 SLIM FIT COLLET CHUCK TOOL HOLDER AND 6MM COLLET G2.5 25000RPM
| MODEL | BT30 DC06 80 | Â RUN OUT (TIR) | 0.00015″ | NECKÂ DIAMETER d1 | 0.8″ |
| HOLDER TYPE | SLIM FIT COLLET CHUCK | CLAMPING RANGE | Â 3/32-1/4″ | CLAMPING SIZE | 6MM |
| SHANK TYPE | BT30 | DRAWBAR THREAD | M12 X 1.75 | DRAWBAR THREAD | Â M10 |
| BALANCE | G2.5 25000rpm | GAGE LENGTH | 3.15″ | COOLANT | NO |
High-Speed Cutting (G2.5 25000rpm) Balance
High Precision Runout: TIR 5μm or 0.00015
Hardened:Â surface HRC58 inside is HRC45
Protection: silver color
power clamping collet
Easy operate end mill cutter
No clamping nut
| BT30 TAPER | 8° | TAPER D1 | L | FLANGE D |
| DRAWBAR THREAD BT30 | M12X 1.75 | 31.75 | 70 | 50 |
