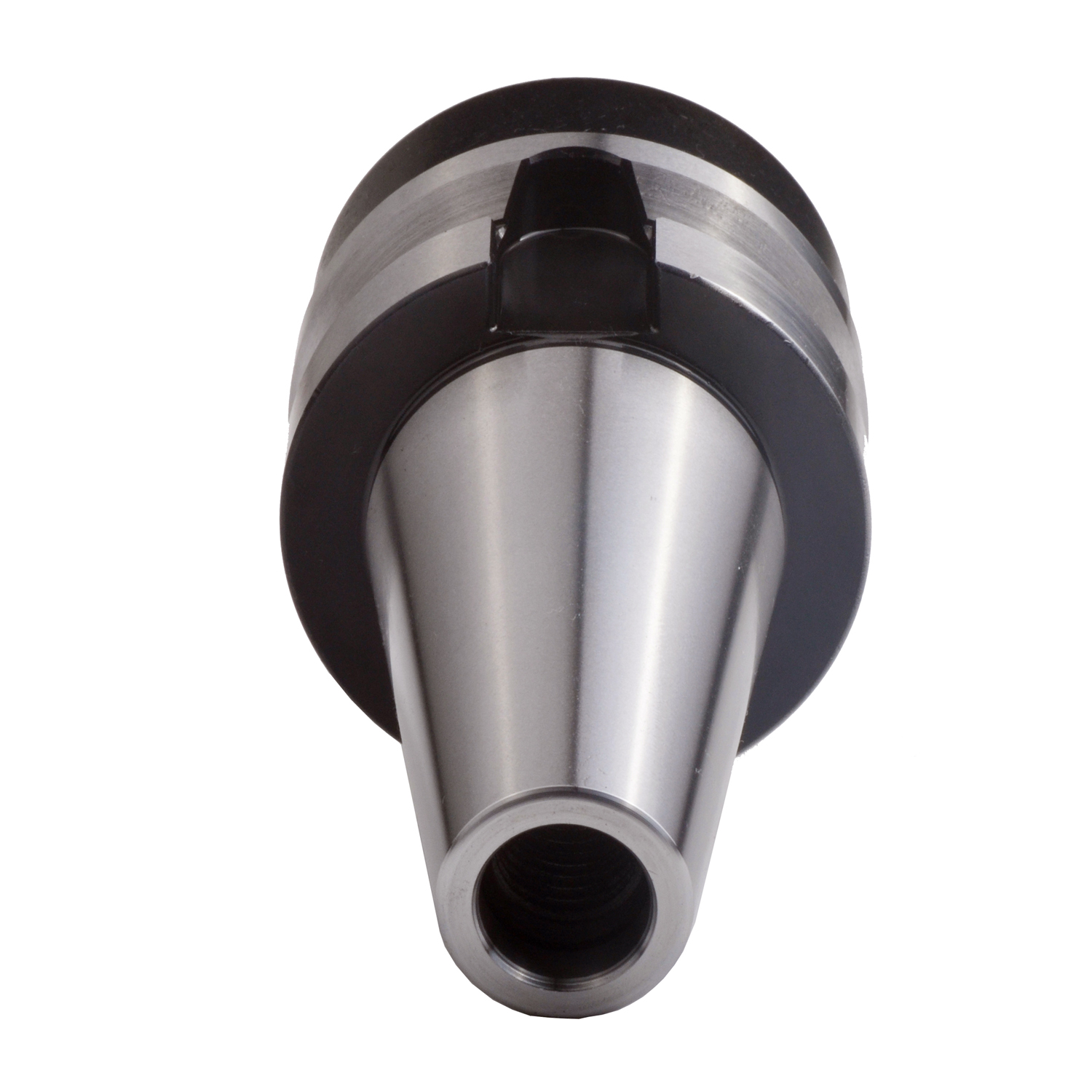

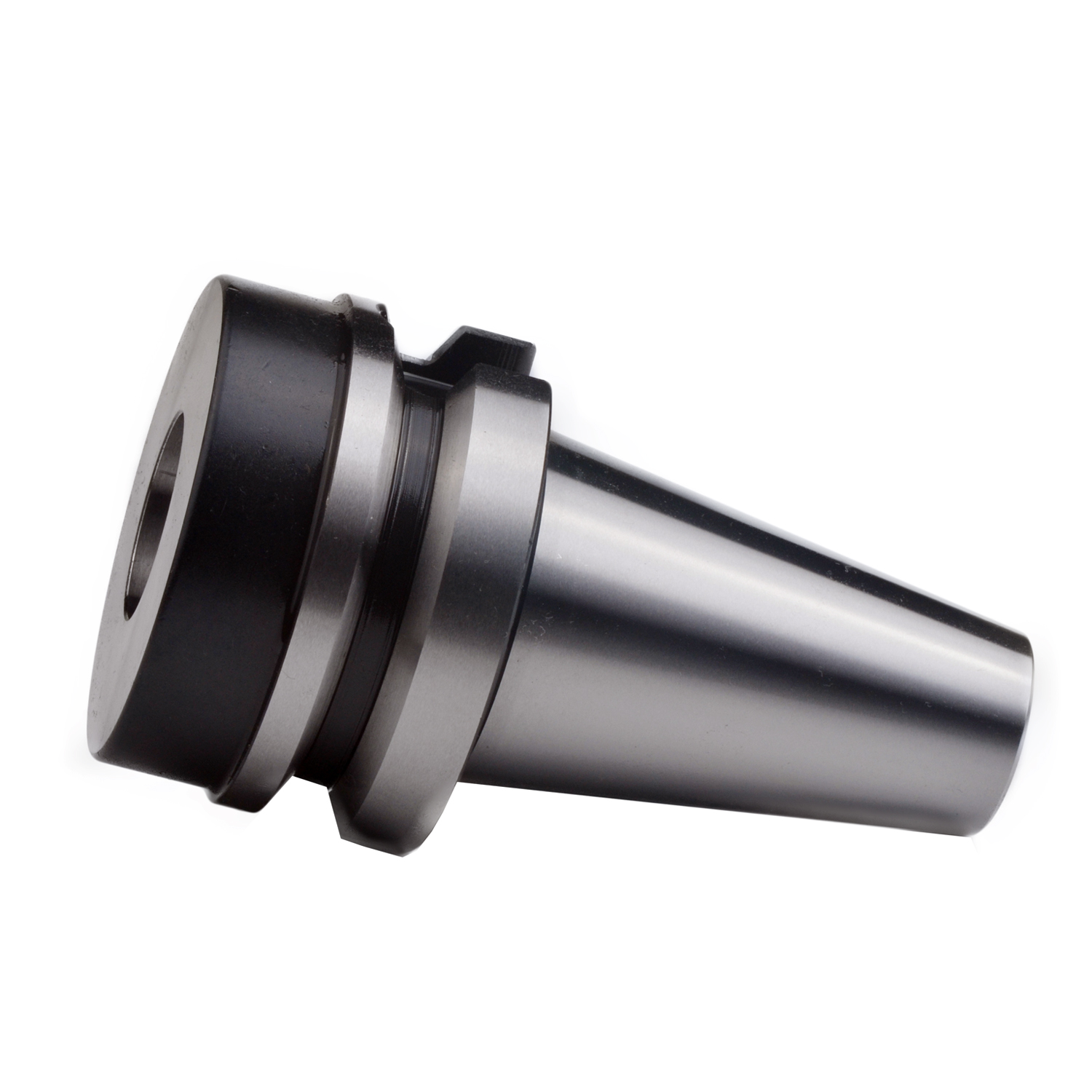

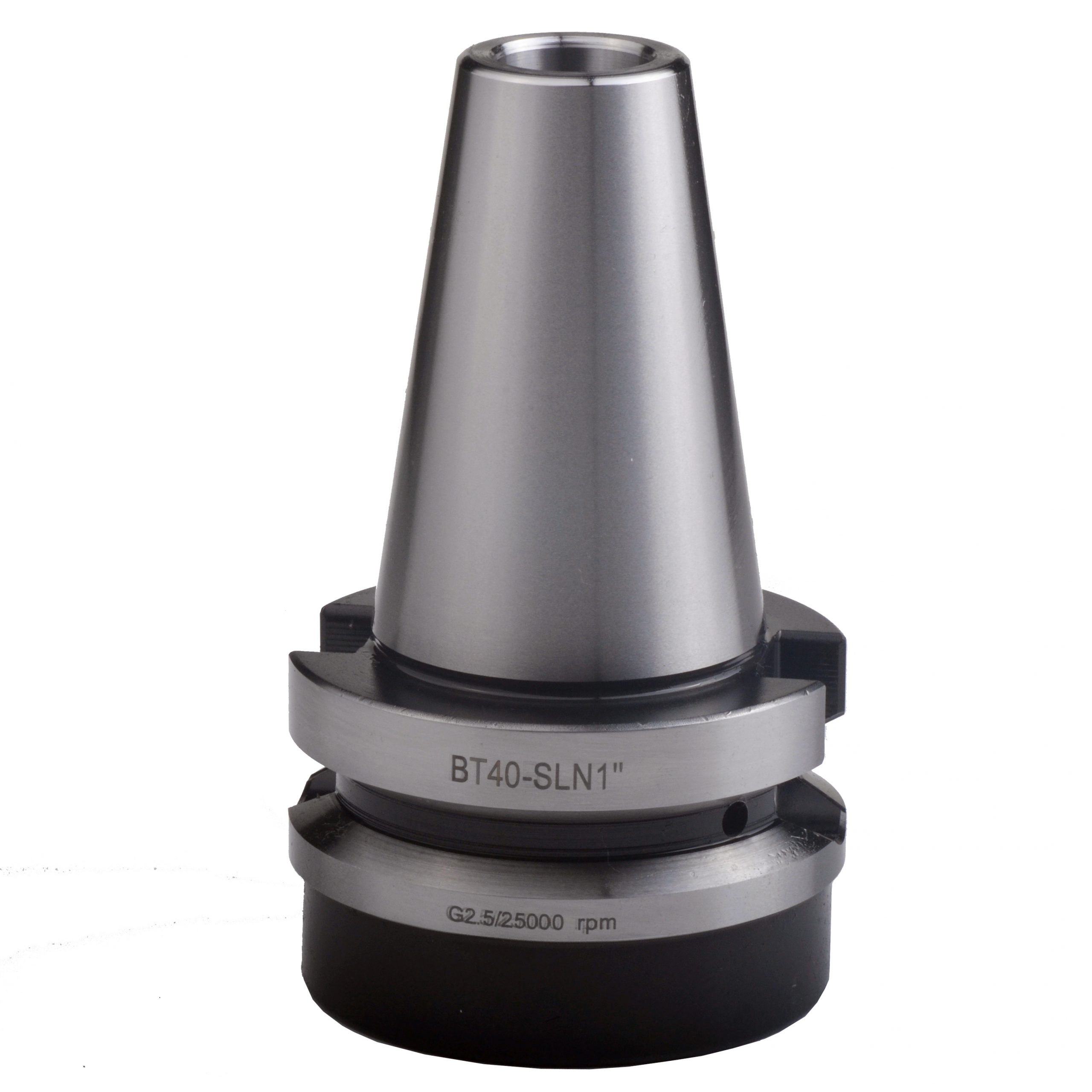

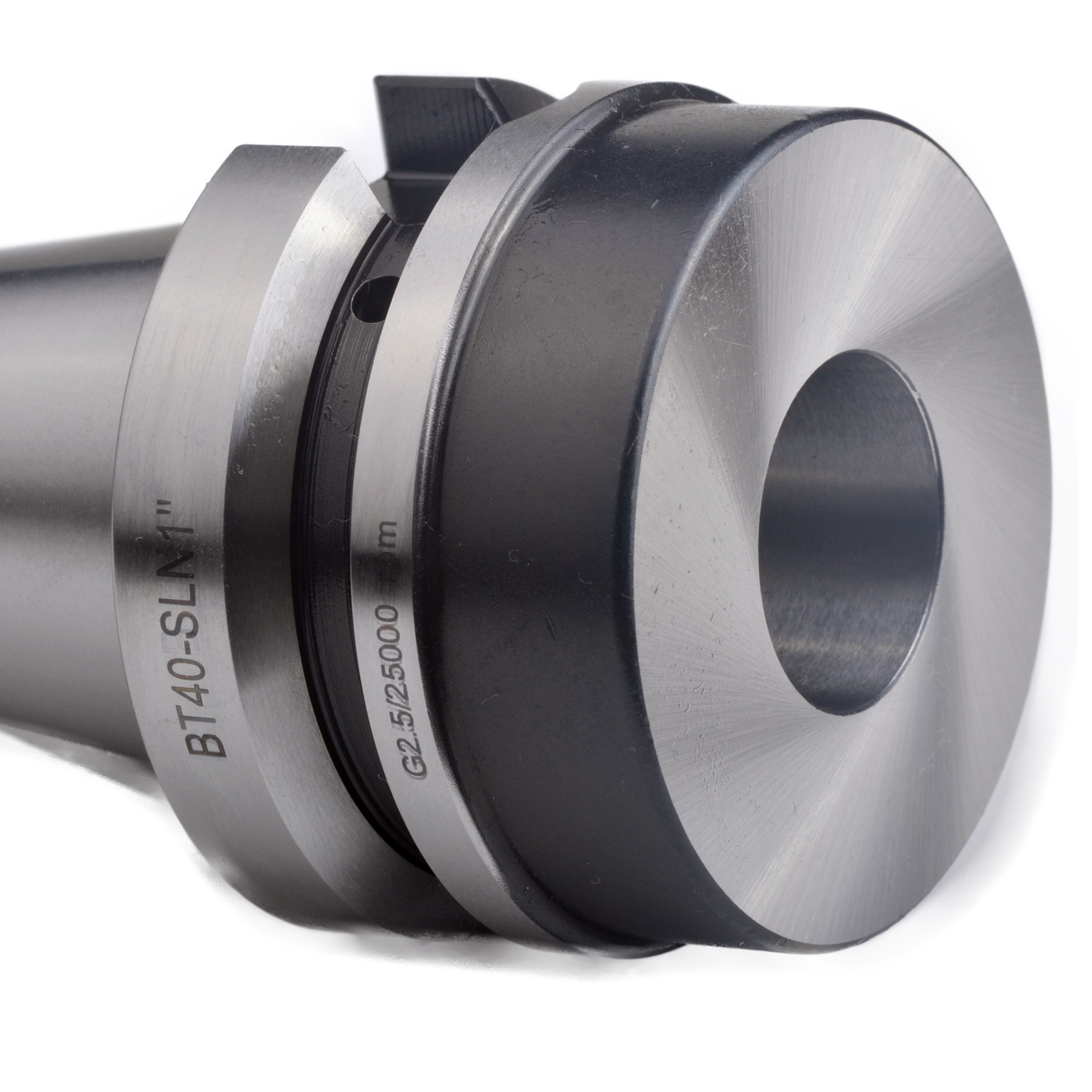

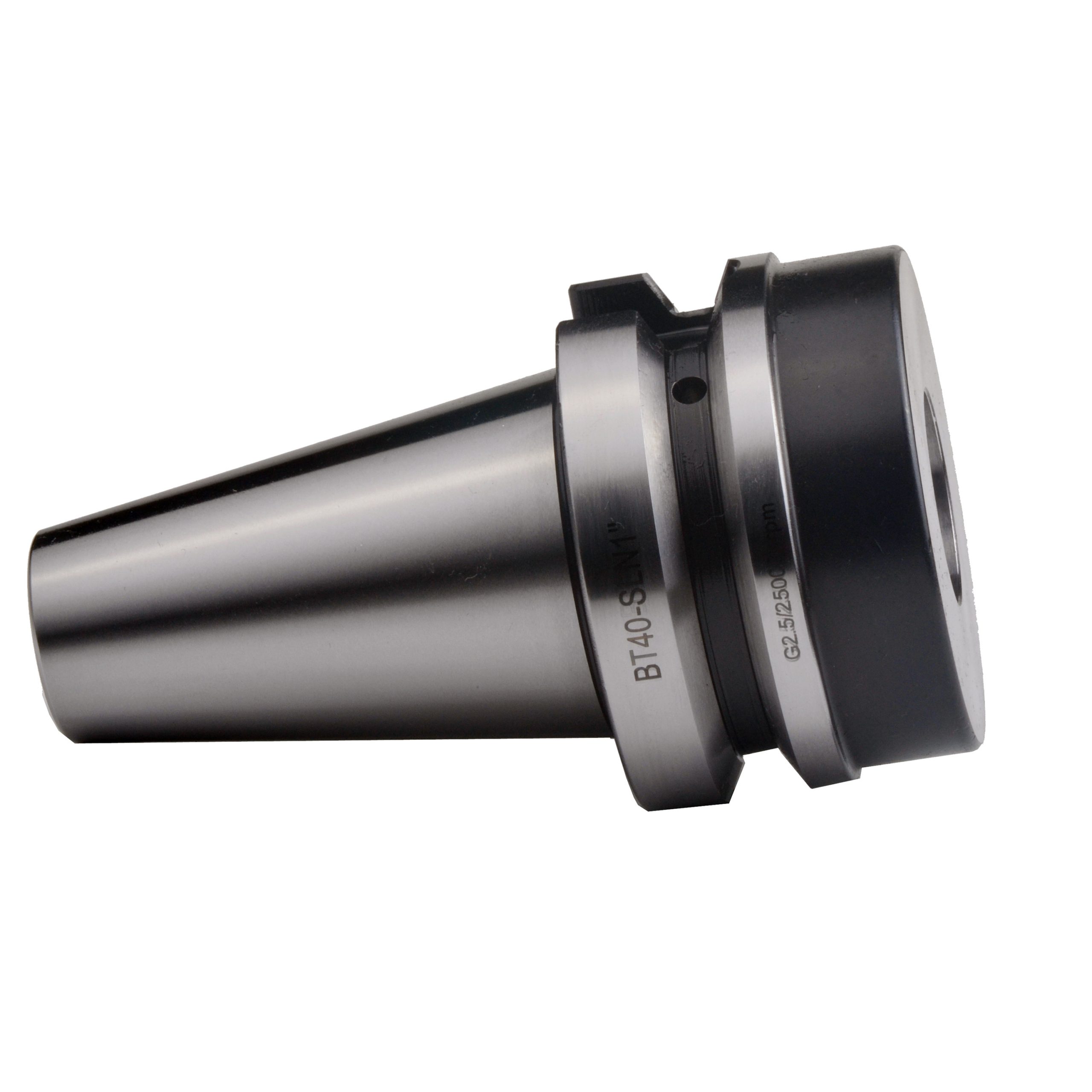

PRECISION M16 BT40 1″ END MILL TOOL HOLDER GAGE LENGTH 0.5″
| MODEL | BT40 SL1 | Â RUN OUT (TIR) | 0.00015″ | NECKÂ DIAMETER d1 | 1.5″ |
| HOLDER TYPE | END MILL HOLDER | BORE DIAMETER | Â 1.0″ | Â BORING DEPTH | 1.4″ |
| SHANK TYPE | BT40 | DRAWBAR THREAD | M16 X 2 | Â SCREW | M10 |
| BALANCE | G2.5 25000rpm | Gage Length L | 2.5″ | COOLANT | YES |
High-Speed Cutting (G2.5 25000rpm) Balance
High Precision Runout: TIR 5μm or 0.00015
Hardened:Â surface HRC58 inside is HRC45

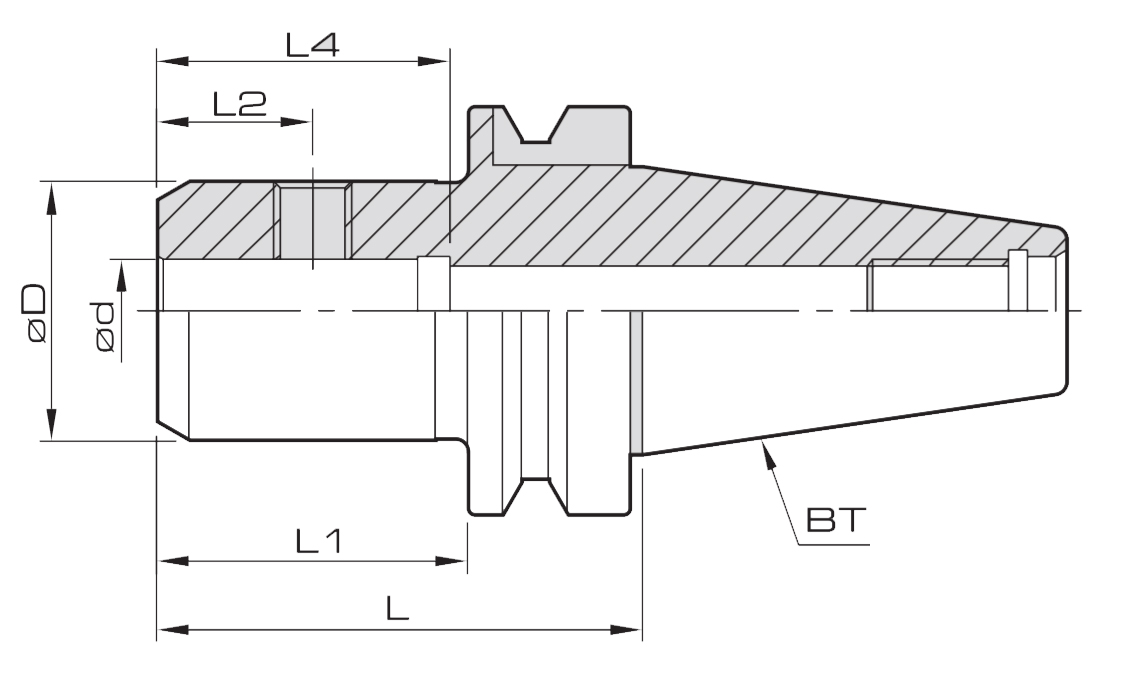

| BT40 TAPER | 8° | TAPER D1 | L1 | FLANGE D |
| DRAWBAR THREAD BT30 | M16X 2 | 44.45 | 12 | 63 |
