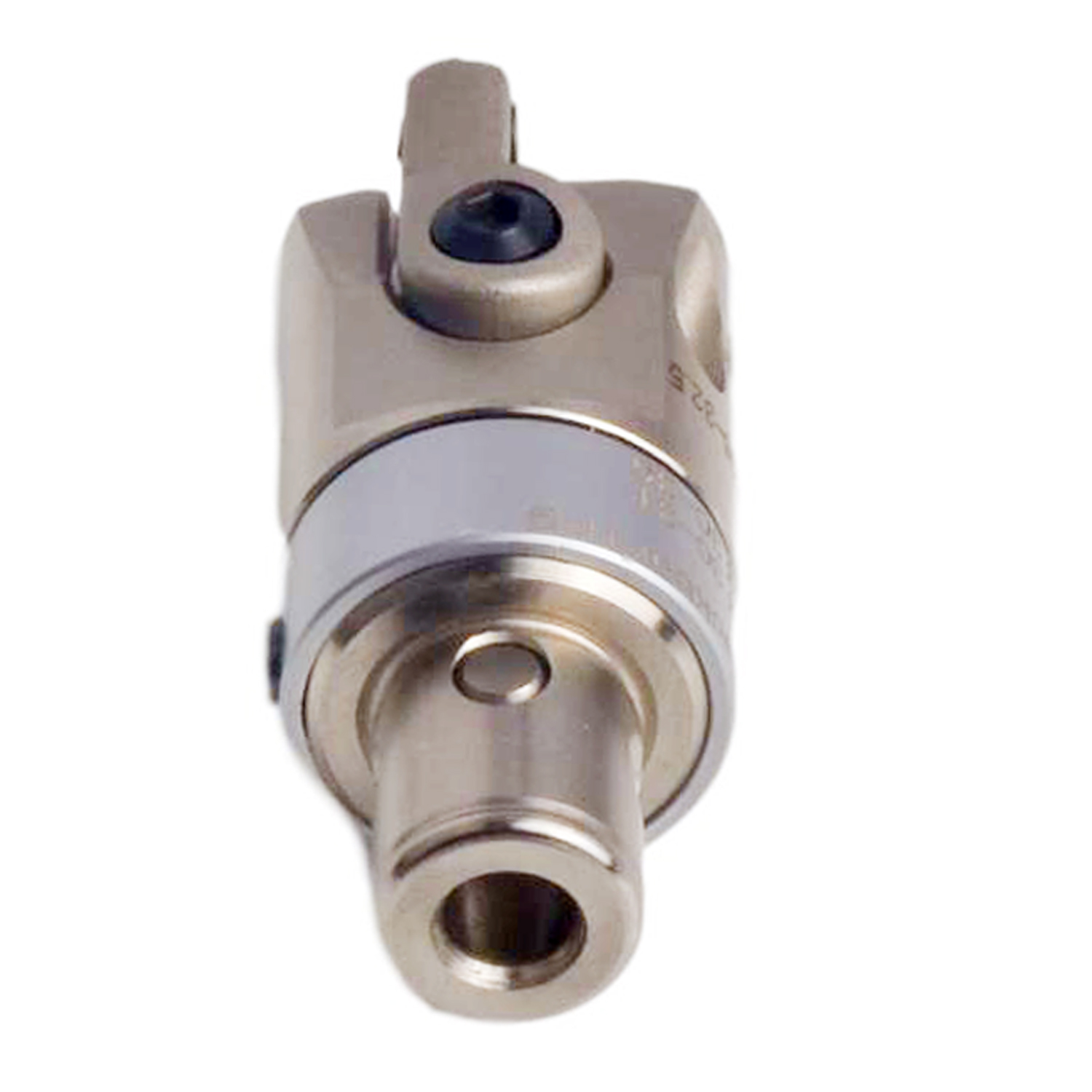

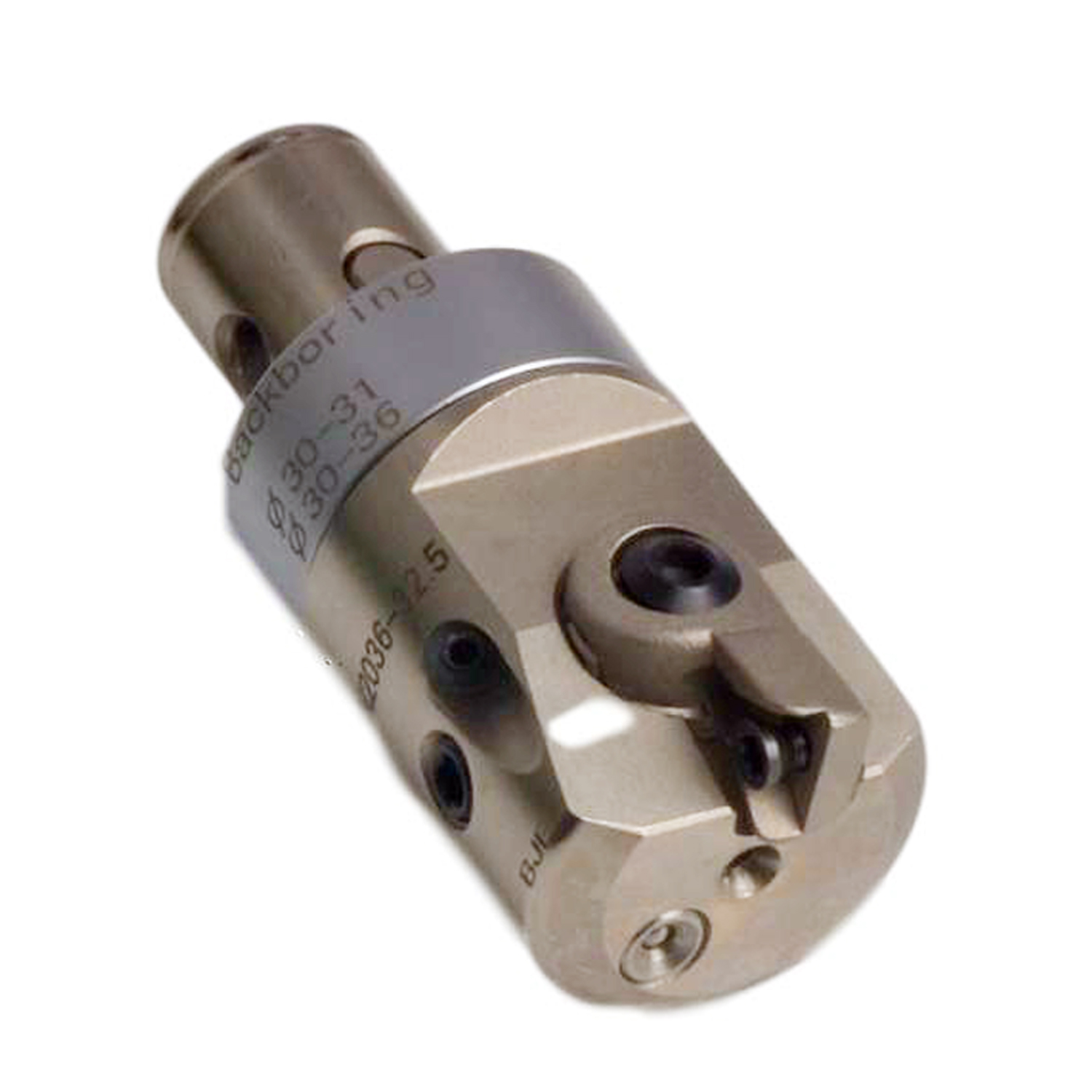

 1.0″-1.29″ PRECISION BORING HEAD BORING TOOL
| MODEL | PRECISION BORING HEAD | Â RUN OUT (TIR) | 0.0001″ |
| HOLDER TYPE | Â PRECISION TOOL HOLDER | CARBIDE INSERT | TGPH08** |
| SHANK TYPE ACCEPT | LBK2 | Â TYPE | CBA25 |
| CUTTING FLUTE | 1 | GAGE LENGTH | 1.5″ |
| BORING RANGE | 1.0″-1.29″ / 25-36mm | BORINGÂ DIAMETER MAX | 1.3″ |

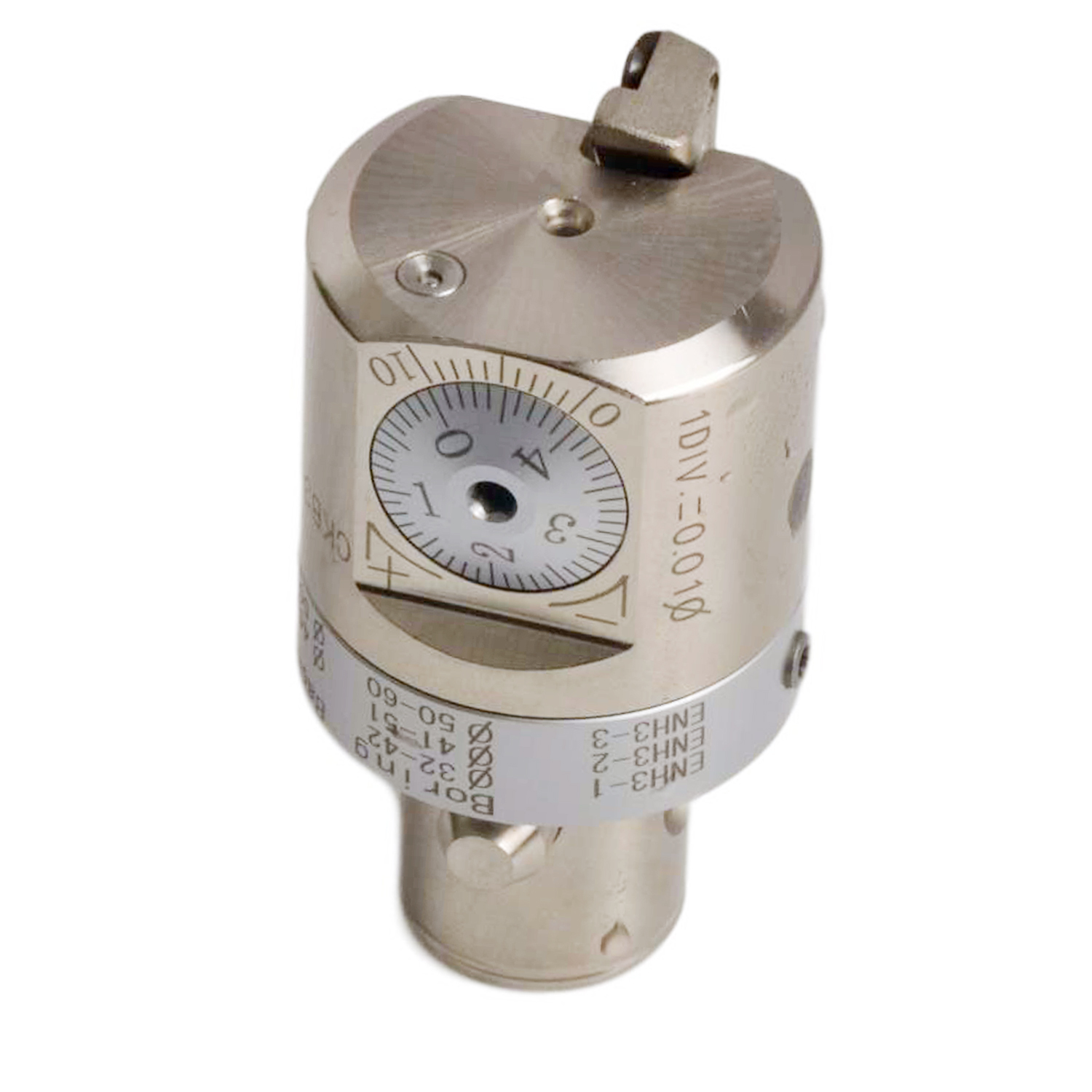

Adjustable precision boring head
Boring precision 0.0001 ” increased
| Â Â Â Â Â Â NO | Â Â Â Â Â Â MODEL | BORING RANGE |
   INSERTS
|
  ACCEPT    ARBOR | L |  L1 |
| CBA20 | ENH1-1 | Â 20-26 | TP**08** | LBK1 | 30 | 27 |
| ENH1-2 | 25-31 | TP**08** | LBK1 | |||
| ENH1-3 | 30-35 | TP**08** | LBK2 | |||
| CBA25 | ENH2-1 | 25-33 | TP**08** | LBK2 | 35 | 31 |
| ENH2-2 | 32-40 | TP**08** | LBK2 | |||
| ENH2-3 | 39-47 | TP**08** | LBK3 | |||
| Â CBA32 | ENH3 -1 | Â 32-42 | TP**08** | LBK3 | 45 | 37 |
| ENH3 -2 | 41-51 | TP**08** | LBK3 | |||
| ENH3 -2 | 49-59 | TP**08** | LBK3 | |||
| CBA40 | ENH4-1 | 40-55 | TP**08** | LBK4 | 50 | 47 |
| ENH4-2 | 51-66 | TP**08** | LBK4 | |||
| ENH4-3 | 64-79 | TP**08** | LBK4 | |||
| CBA52 | ENH5-1 | 52-75 | TC**11020 | LBK5 | 60 | 56 |
| ENH5-1 | 70-92 | TC**11020 | LBK5 | |||
| ENH5-1 | 89-111 | TC**11020 | LBK5 | |||
| CBA68 | ENH6-1 | 68-100 | TC**11020 | LBK6 | 70 | 65 |
| ENH6-2 | 95-128 | TC**11020 | LBK6 | |||
| ENH6-3 | 120-155 | TC**11020 | LBK6 |
