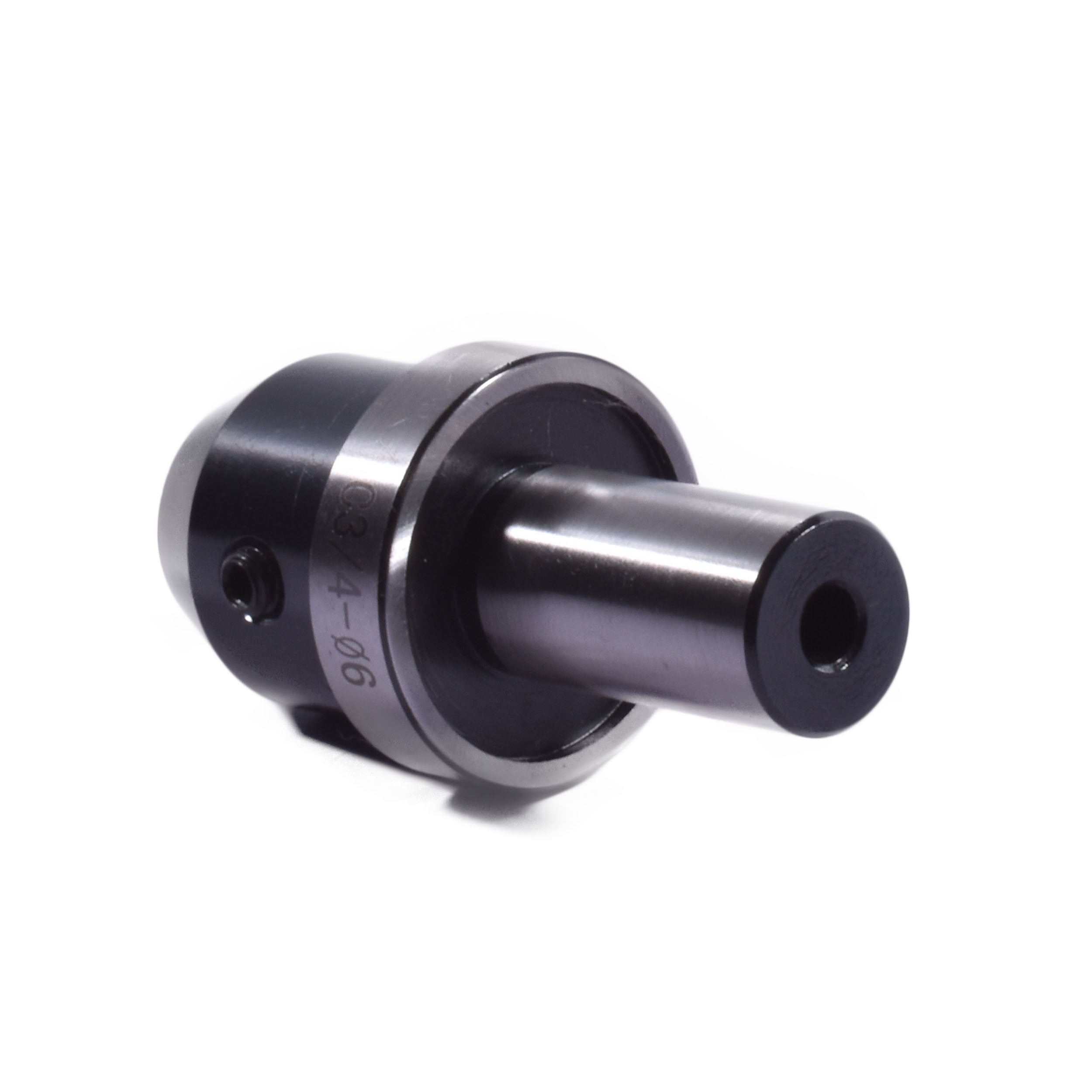

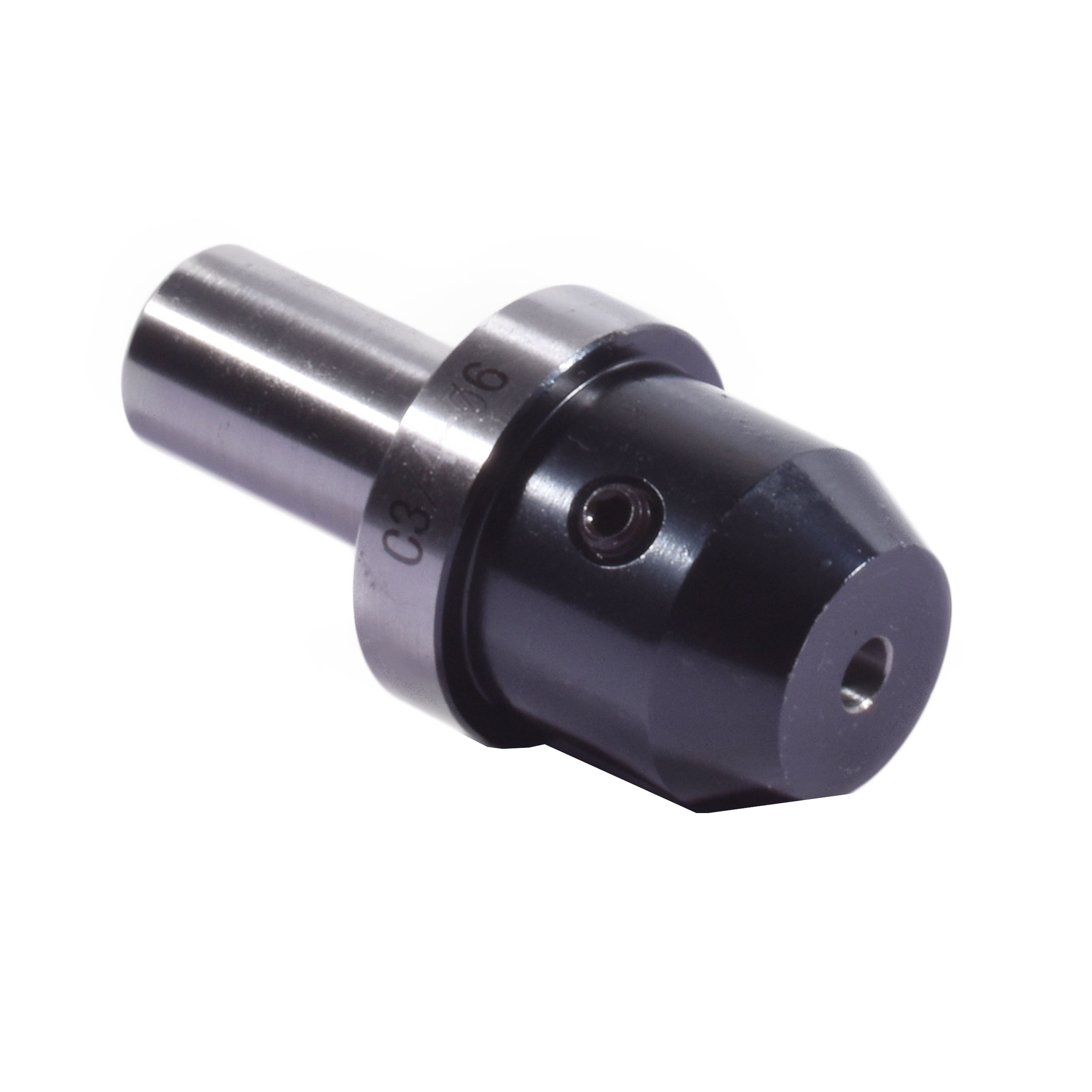

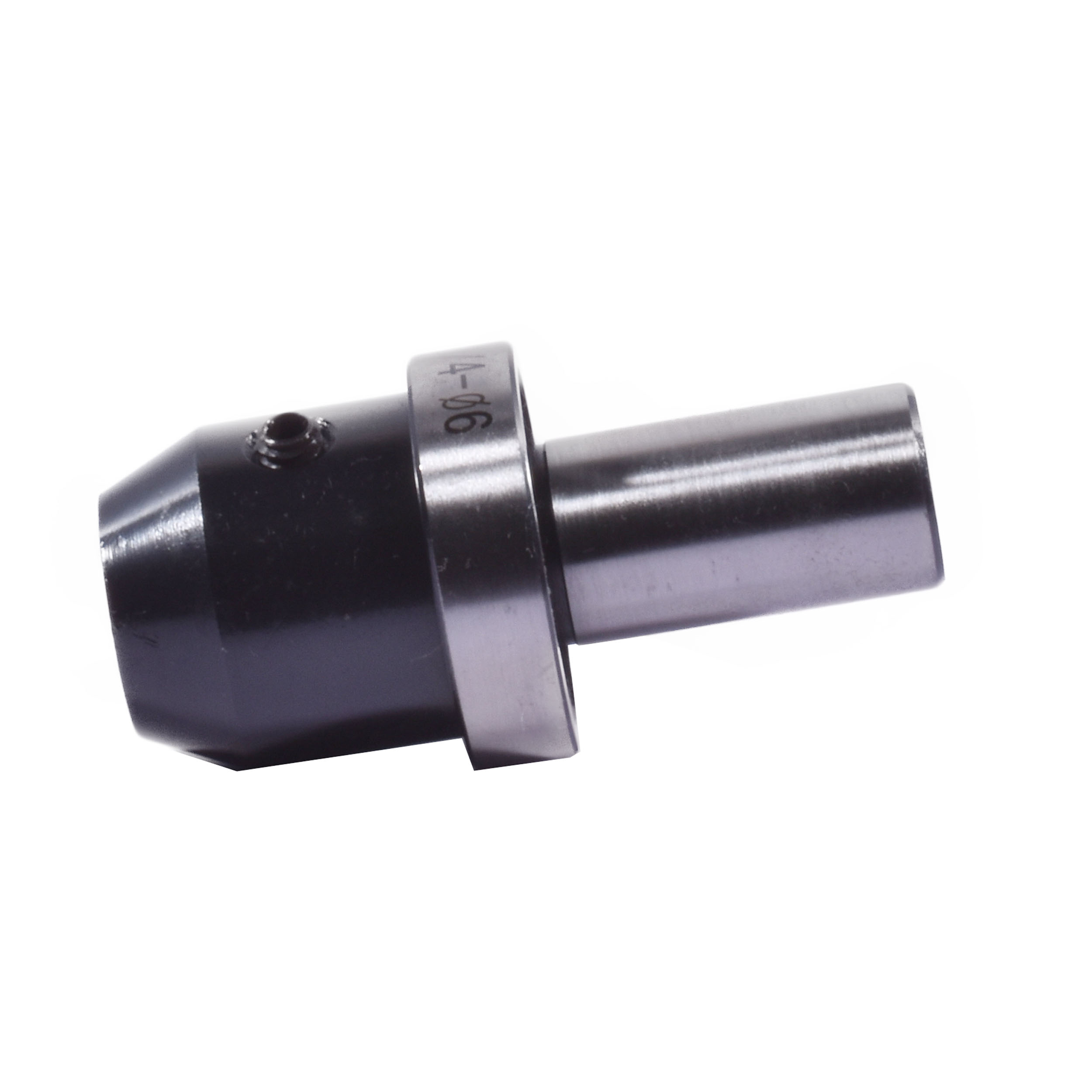

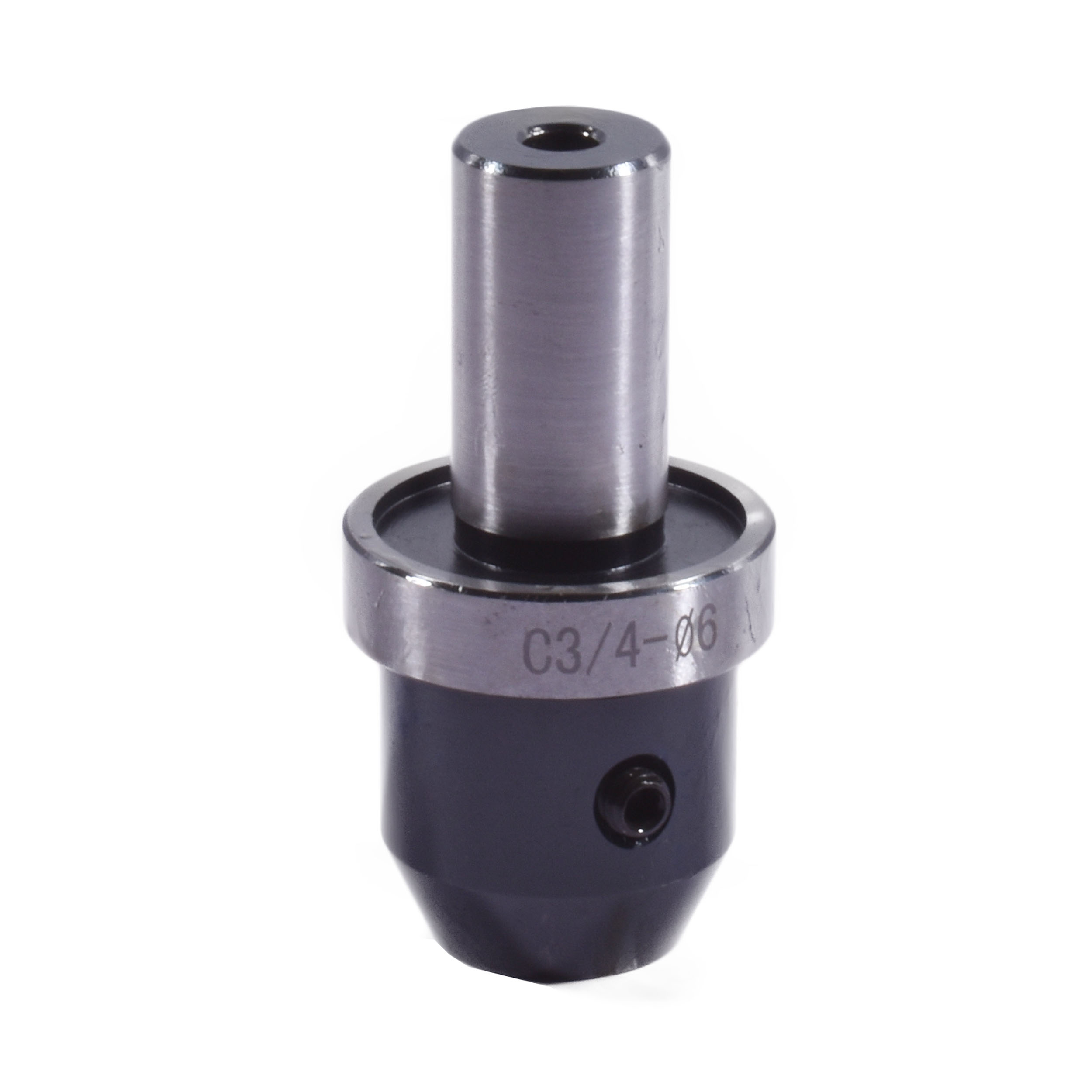

NEW TTS 3/4Â 6MM SET SCREW END MILL TOOL HOLDER FOR TTS MACHINE
| MODEL | TTS3/406MM | Â RUN OUT (TIR) | 0.0004″ | FLANGE DIAMETER | 1.5″ |
| HOLDER TYPE | ER COLLET CHUCK | SCREW | M6 | ACCEPT ARBOR | 6MM |
| SHANK TYPE | STRAIGHT TOOL HOLDER | DRAWBAR THREAD | NO | COLLET NUT | NO |
| BALANCE | MAX 12,000RPM | SHANK DIAMETER | 3/4 | COLOR | oxide black |
| OVERALL LENGTH | 2.88″ | SHANK LENGTH | 1.38″ | ATC GROOVE | YES |
STRAIGHT SHANK COLLET CHUCK EXTENSION HOLDER
For TTS Machine
The flange is 1.5″ without a groove for TTS Tormach machine
Made from alloy steel and hardness is HRC55
