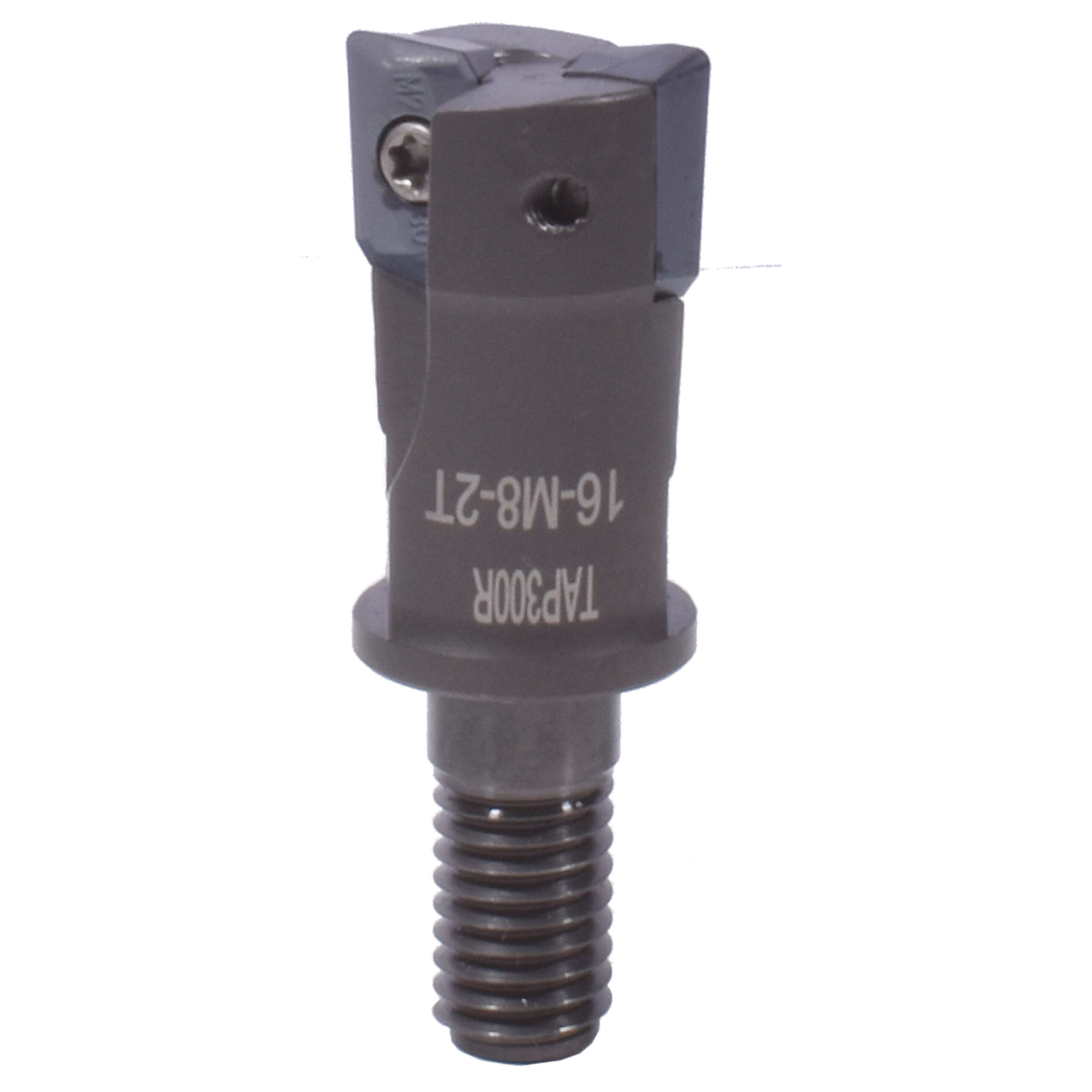

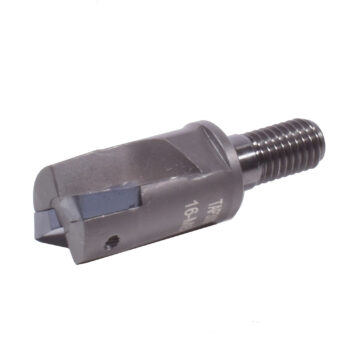

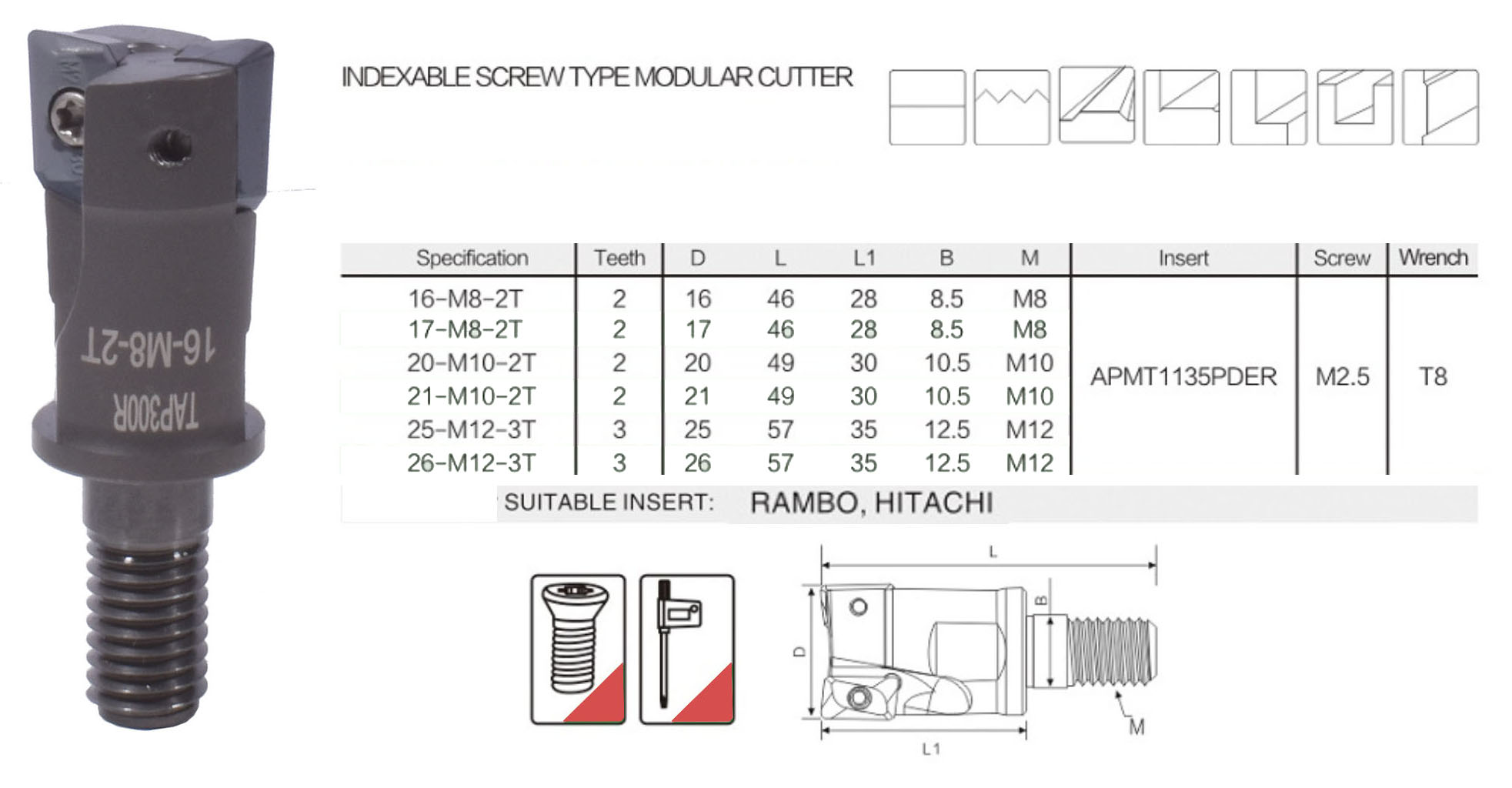

 New 300R M8 MODULAR INSERT CUTTER 16MM +2PC APMT1135 CARBIDE INSERTS
| MODEL | TAP300R16-M8-2T | Â RUN OUT (TIR) | 0.0002″ |
| HOLDER TYPE | FACE MILL CUTTING | Â DIAMETER | 16MM |
| SHANK TYPE | M8 | Â INSERT ACCEPT | APMT1135 |
BT30/BT40/CAT40 arbor availableÂ
| MODEL | THREAD | D | DC | L | ORDER NO |
|---|---|---|---|---|---|
| BT30 M6 50L | M6 | 12 | 17 | 50 | IGST30001 |
| BT30 M6 100L | M6 | 12 | 17 | 100 | IGST30002 |
| BT30 M8 45L | M8 | 15 | 17 | 45 | IGST30003 |
| BT30 M8 50L | M8 | 15 | 17 | 50 | IGST30004 |
| BT30 M8 100L | M8 | 15 | 17 | 100 | IGST30005 |
| BT30 M10 45L | M10 | 19 | 21 | 45 | IGST30006 |
| BT30 M10 50L | M10 | 19 | 21 | 50 | IGST30007 |
| BT30 M10 100L | M10 | 19 | 21 | 100 | IGST30008 |
| BT30 M12 60L | M12 | 24 | 25 | 60 | IGST30009 |
| BT30 M12 100L | M12 | 24 | 26 | 100 | IGST30010 |
| BT30 M16 45L | M16 | 30 | 33 | 45 | IGST30011 |
| BT30 M16 60L | M16 | 30 | 33 | 60 | IGST30012 |
| BT30 M16 100L | M16 | 30 | 33 | 100 | IGST30013 |
| BT40 M8 70L | M8 | 15 | 17 | 70 | IGST30014 |
| BT40 M8 100L | M8 | 15 | 17 | 100 | IGST30015 |
| BT40 M8 150L | M8 | 15 | 22 | 150 | IGST30016 |
| BT40 M8 200L | M8 | 15 | 22 | 200 | IGST30017 |
| BT40 M10 70L | M10 | 19 | 20 | 70 | IGST30018 |
| BT40 M10 100L | M10 | 19 | 25 | 100 | IGST30019 |
| BT40 M10 150L | M10 | 19 | 25 | 150 | IGST30020 |
| BT40 M10 200L | M10 | 19 | 31 | 200 | IGST30021 |
| BT40 M12 70L | M12 | 24 | 26 | 70 | IGST30022 |
| BT40 M12 100L | M12 | 24 | 32 | 100 | IGST30023 |
| BT40 M12 150L | M12 | 24 | 37 | 150 | IGST30024 |
| BT40 M12 200L | M12 | 24 | 58 | 200 | IGST30025 |
| BT40 M16 70L | M16 | 30 | 32 | 70 | IGST30026 |
| BT40 M16 100L | M16 | 30 | 36 | 100 | IGST30027 |
| BT40 M16 150L | M16 | 30 | 41 | 150 | IGST30028 |
| BT40 M16 200L | M16 | 30 | 46 | 200 | IGST30029 |
| CAT40 M8 70L | M8 | 15 | 17 | 70 | IGST30030 |
| CAT40 M8 100L | M8 | 15 | 17 | 100 | IGST30031 |
| CAT40 M8 150L | M8 | 15 | 22 | 150 | IGST30032 |
| CAT40 M8 200L | M8 | 15 | 22 | 200 | IGST30033 |
| CAT40 M10 70L | M10 | 19 | 20 | 70 | IGST30034 |
| CAT40 M10 100L | M10 | 19 | 25 | 100 | IGST30035 |
| CAT40 M10 150L | M10 | 19 | 25 | 150 | IGST30036 |
| CAT40 M10 200L | M10 | 19 | 31 | 200 | IGST30037 |
| CAT40 M12 70L | M12 | 24 | 26 | 70 | IGST30038 |
| CAT40 M12 100L | M12 | 24 | 32 | 100 | IGST30039 |
| CAT40 M12 150L | M12 | 24 | 37 | 150 | IGST30040 |
| CAT40 M12 200L | M12 | 24 | 58 | 200 | IGST30041 |
| CAT40 M16 70L | M16 | 30 | 32 | 70 | IGST30042 |
| CAT40 M16 100L | M16 | 30 | 36 | 100 | IGST30043 |
| CAT40 M16 150L | M16 | 30 | 41 | 150 | IGST30044 |
| CAT40 M16 200L | M16 | 30 | 46 | 200 | IGST30045 |
Carbide shank arbor available
| MODEL | DIA | OAL | M | ORDER |
|---|---|---|---|---|
| 8M4100 | 8 | 100 | M4 | IGST1001 |
| 10M5100 | 10 | 100 | M5 | IGST1002 |
| 10M5150 | 10 | 150 | M5 | IGST1003 |
| 12M6100 | 12 | 100 | M6 | IGST1004 |
| 12M6150 | 12 | 150 | M6 | IGST1005 |
| 12M6200 | 12 | 200 | M8 | IGST1006 |
| 15M8100 | 15 | 100 | M8 | IGST1007 |
| 15M8150 | 15 | 150 | M8 | IGST1008 |
| 15M8200 | 15 | 200 | M8 | IGST1009 |
| 16M8150 | 16 | 150 | M8 | IGST1010 |
| 16M8200 | 16 | 200 | M8 | IGST1011 |
| 16M8250 | 16 | 250 | M8 | IGST1012 |
| 20M10150 | 20 | 150 | M10 | IGST1013 |
| 20M10200 | 20 | 200 | M10 | IGST1014 |
| 20M10250 | 20 | 250 | M10 | IGST1015 |
| 25M12150 | 25 | 150 | M12 | IGST1016 |
| 25M12200 | 25 | 200 | M12 | IGST1017 |
| 25M12250 | 25 | 250 | M12 | IGST1018 |
| 32M16150 | 32 | 150 | M16 | IGST1019 |
| 32M16200 | 32 | 200 | M16 | IGST1020 |
| 32M16250 | 32 | 250 | M16 | IGST1021 |
| 32M16300 | 32 | 300 | M16 | IGST1022 |
| 32M16350 | 32 | 350 | M16 | IGST1023 |
