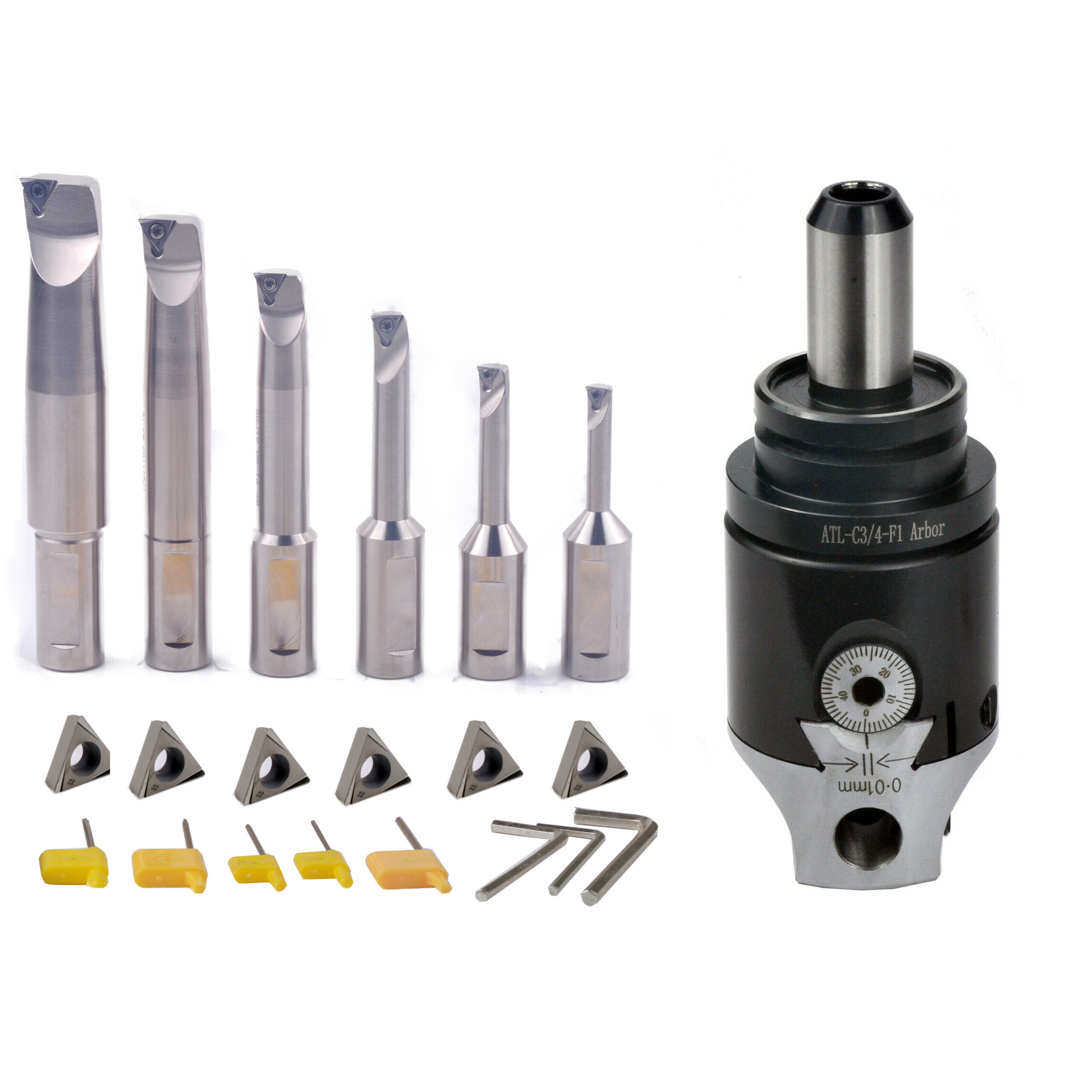

TTS 3/4 2INCH BORING HEAD SET WITH 6PCS BORING BAR AND 6PCS BORING CARBIDE INSERTS
MODEL | Â Â TOOL HOLDER | Â RUN OUT (TIR) | 0.0002″ |
HOLDER TYPE | BORING HEAD | BORING DIAMETER | 2″ |
SHANK TYPE | Â TTS 3/4 | Â BORING HOLE ACCEPT | 1/2 |
6PCS CARBIDE INSERTS ( 3TYPEÂ 2pcs of each ) TBGT 06 ,TPGT 09 ,TPGT1103 …
MINI BORING:8MM(5/16)
MAXÂ BORING:100MM (4INCH)
6PCS BORING BAR
DESCRIPTION
INDEXABLE NO | BORING RANG | BORING DEPTH | INSERTS | BORING AP | BORING FEEDmm/rev | CUTTING SPEEDm/min | WRENCH |
BJ1208-32 | 8-12 | 32 | TBGT0601** | 0.05-0.20 | 0.05-0.010 | 100-200 | T6 |
BJ1210-40 | 10 -13 | 40 | TBGT0601** | 0.07-0.25 | 0.05-0.010 | 100-200 | T6 |
BJ1218-68 | 12 -17 | 52 | TPGT0902** | 0.07-0.25 | 0.05-0.015 | 100-200 | T8 |
BJ1216-68 | 16-21 | 68 | TPGT0902** | 0.1-0.25 | 0.05-0.015 | 100-200 | T8 |
BJ1220-83 | 20-130 | 83 | TPGT1103** | 0.05-0.2 | 0.05-0.015 | 100-300 | T8 |
BJ1220-90 | 20-140 | 9- | TPGT1103** | 0.1-0.25 | 0.01-0.015 | 100-400 | T8 |
        TPGT110303                              TPGT090204                  TBBT060104
