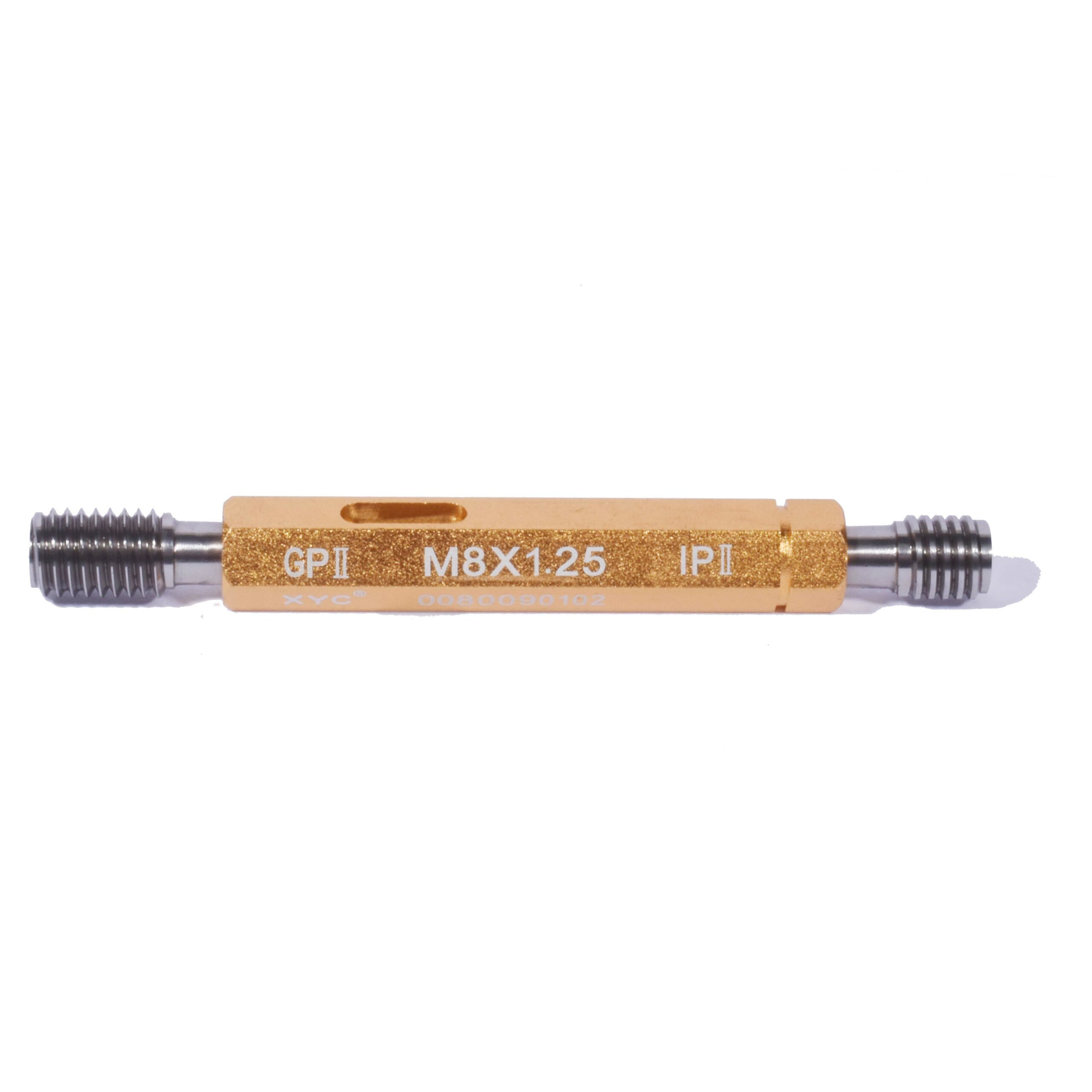

M8X1.25 THREAD PLUG GAGE TOOL GO AND NOGO CLASS 2B
In Stock
$24.99
M8X1.25 THREAD PLUG GAGE TOOL GO AND NOGO CLASS 2B
Compare
M8 X 1.25 THREAD PLUG GAGE TOOL GO AND NOGO CLASS 2B
| MODEL |
M8X1.25 |
 Pitch |
1.25 |
| CLASS GRADE |
6H |
 OAL |
70MM |
| THREAD |
GRINDING |
INSPECT |
YES |
| METRIC | | | INCH | | |
| Thread Gauge Size | Grade | Order No | Thread Gauge Size | Grade | Order No |
| M1 * 0.25 | 5H | ICTA1001 | 4-40UNC | 2B | ICTA1029 |
| M1.2 * 0.25 | 5H | ICTA1002 | 5-40UNC | 2B | ICTA1030 |
| M1.4 * 0.3 | 6H | ICTA1003 | 6-32UNC | 2B | ICTA1031 |
| M1.6 * 0.35 | 6H | ICTA1004 | 8-32UNC | 2B | ICTA1032 |
| M1.7 * 0.35 | 6H | ICTA1005 | 10-24UNC | 2B | ICTA1033 |
| M1.8 * 0.35 | 6H | ICTA1006 | 12-28UNC | 2B | ICTA1034 |
| M2 * 0.4 | 6H | ICTA1007 | 1/4-20UNC | 2B | ICTA1035 |
| M2.5 * 0.4 | 6H | ICTA1008 | 1/4-28UNF | 2B | ICTA1036 |
| M2.6 * 0.45 | 6H | ICTA1009 | 5/16-18UNC | 2B | ICTA1037 |
| M3 * 0.6 | 6H | ICTA1010 | 5/6-24UNF | 2B | ICTA1038 |
| M3.5 * 0.6 | 6H | ICTA1011 | 3/8-16UNC | 2B | ICTA1039 |
| M4 * 0.7 | 6H | ICTA1012 | 3/8-24 UNF | 2B | ICTA1040 |
| M5 * 0.8 | 6H | ICTA1013 | 7/16-14UNC | 2B | ICTA1041 |
| M6 * 1 | 6H | ICTA1014 | 7/16-20UNF | 2B | ICTA1042 |
| M7*1 | 6H | ICTA1015 | 1/2-13UNC | 2B | ICTA1043 |
| M8*1.25 | 6H | ICTA1016 | 1/2-20UNF | 2B | ICTA1044 |
| M8*1 | 6H | ICTA1017 | 9/16-12UNC | 2B | ICTA1045 |
| M10*1.5 | 6H | ICTA1018 | 5/8-11UNF | 2B | ICTA1046 |
| M10*1.25 | 6H | ICTA1019 | 5/8-24UNEF | 2B | ICTA1047 |
| M10*1 | 6H | ICTA1020 | W1/8-40 | 2B | ICTA1048 |
| M12*1.75 | 6H | ICTA1021 | W5/32-32 | 2B | ICTA1049 |
| M12*1.5 | 6H | ICTA1022 | W3/16-24 | 2B | ICTA1050 |
| M12*1.25 | 6H | ICTA1023 | W1/4-20 | 2B | ICTA1051 |
| M12*1 | 6H | ICTA1024 | W5/16-18 | 2B | ICTA1052 |
| M14*1.5 | 6H | ICTA1025 | W3/8-16 | 2B | ICTA1053 |
| M14*2 | 6H | ICTA1026 | W1/2-12 | 2B | ICTA1054 |
| M16*2 | 6H | ICTA1027 | W5/8-11 | 2B | ICTA1055 |
| M14*1.5 | 6H | ICTA1028 | | | |
