mt4 ER25 TOOL HOLDER

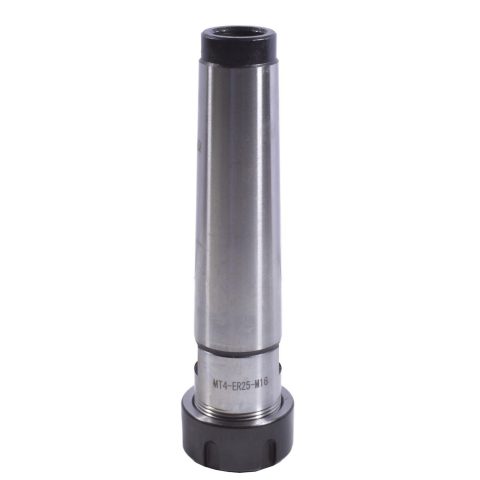

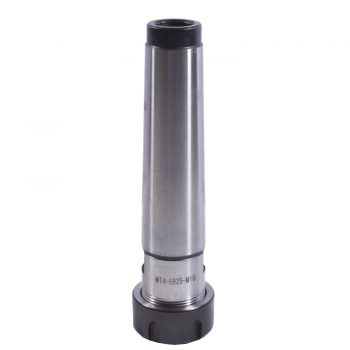

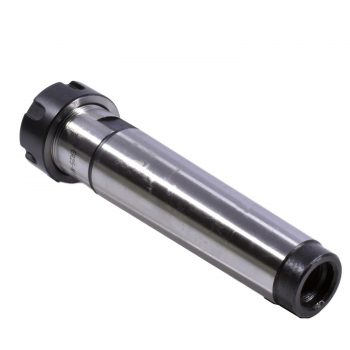

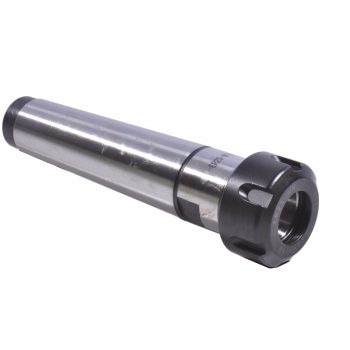

M16 MT4 ER25 MILLING COLLET CHUCK TOOL HOLDER

In Stock

SKU: MT4ER25M16

$29.99

M16 MT4 ER25 MILLING COLLET CHUCK TOOL HOLDER

Categories:MT4

Description
Additional information

M16 MT4 ER25 MILLING COLLET CHUCK TOOL HOLDER

MODEL	MORSE TAPER HOLDER	RUN OUT (TIR)	0.0002″
HOLDER TYPE	MT4	GAGE LENGTH	1.5″
COLLETS	ER25	DRAWBAR THREAD	M16

RELATED MT COLLET CHUCK

MODEL	THREAD	COLLET NUT	COLLETS	ORDER NO
MT1 ER8	M6	ER8	ER8	MTER8
MT1 ER11	M6	ER11 HEX	ER11	MT1ER11
MT1 ER16	M6	ER16 HEX	ER16	MT1ER16
MT1 ER20	M6	ER20 HEX	ER20	MT1ER20
MT2 ER11	M10 / 3/8	ER11 HEX	ER11	M2ER11
MT2 ER16	M10 / 3/8	ER16 HEX	ER16	MT2ER16
MT2 ER20	M10 / 3/8	ER20 HEX	ER20	MT2ER20
MT2 ER25	M10 / 3/8	ER25 UM	ER25	MT2ER25
MT2 ER32	M10 / 3/8	ER32 UM	ER32	MT2ER32
MT2 ER40	M10 / 3/8	ER40 UM	ER40	MT2ER40
MT3 ER16	M12 / 1/2	ER16 HEX	ER16	MT3ER16
MT3 ER20	M12 / 1/2	ER20 HEX	ER20	MT3ER20
MT3 ER25	M12 /1/2	ER25 UM	ER25	MT3ER25
MT3 ER32	M12 / 1/2	ER32 UM	ER32	MT3ER32
MT3 ER40	M12 / 1/2	ER40 UM	ER40	MT3ER40
MT4 ER25	M16 / 5/8	ER25 UM	ER25	MT4E525
MT4 ER32	M16 / 5/8	ER32 UM	ER32	MT4ER32
MT4 ER40	M16 / 5/8	ER40 UM	ER40	MT4ER40
MT4 ER50	M16 / 5/8	ER50 UM	ER50	MT4ER50
MT5 ER40	M25 / 1-8″	ER40 UM	ER40	MT5ER40
MT5 ER50	M25 / 1-8″	ER50 UM	ER50	MT5ER50

RELATED R8 COLLET CHUCK

MODEL	THREAD	GAGE LENGTH	CLAMPING TYPE	COLLET NUT TYPE	ORDER NO
R8 ER11	7/16-20	1.3″	ER11	HEX.	R8ER11IN
R8 ER16	7/16-20	1.5″	ER16	HEX	R8ER16IN
R8 ER16	M12	1.4″	ER16	HEX	R8ER16M
R8 ER20	7/16-20	1.5″	ER20	HEX	R8ER20IN
R8 ER20	M12	1.5″	ER20	HEX	R8ER20M
R8 ER25	7/16-20	1.5″	ER25	UM	R8ER25IN
R8 ER25	M12	1.5″	ER25	UM	R8ER25M
R8 ER32	7/16-20	2″	ER32	UM	R8ER32IN
R8 ER32	M12	2″	ER32	UM	R8ER32M
R8 ER40	7/16-20	2.2″	ER40	UM	R8ER40IN
R8 ER40	M12	2.2″	ER40	UM	R8ER40M

Weight	1.5 lbs
Dimensions	15 × 45 × 65 in
Measurement system	Inch (in)
Product Category	Collet Chuck Tool Holder
Shank Type	MT4
Collet Series	ER25
