Home/Tool System/BT Spindle/BT40/HIGH PRECISION M16 BT40 ER25 2.76″ COLLET CHUCK TOOL HOLDER G2.5 25000RPM
  • BT40 ER25 tool holder
  • BT40 ER25 tool holder
  • BT40 ER25 tool holder
  • BT40 ER25 tool holder
  • BT40 ER25 tool holder
  • BT40 ER25 tool holder

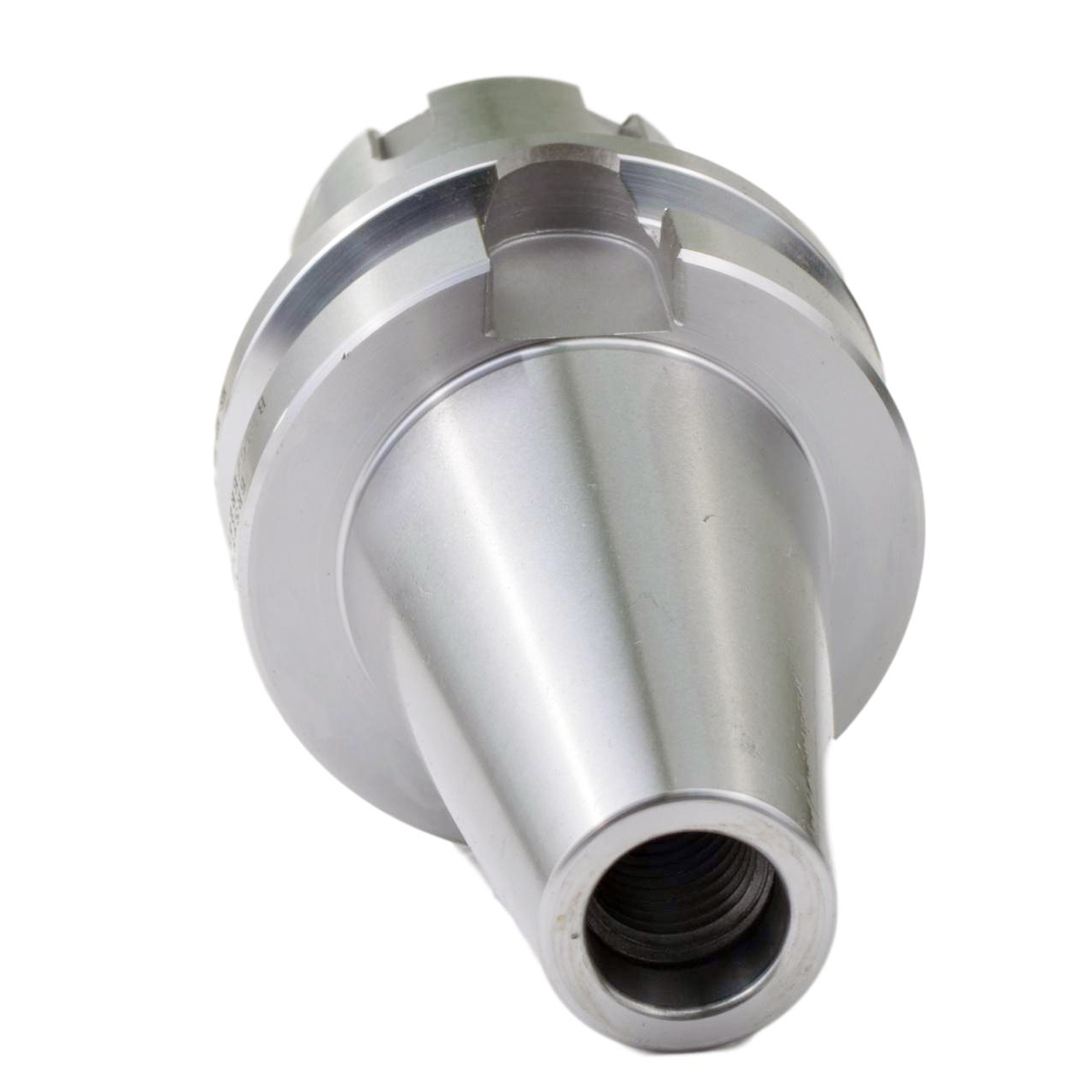

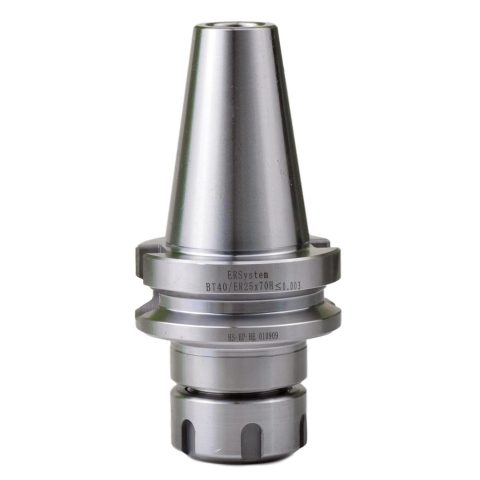

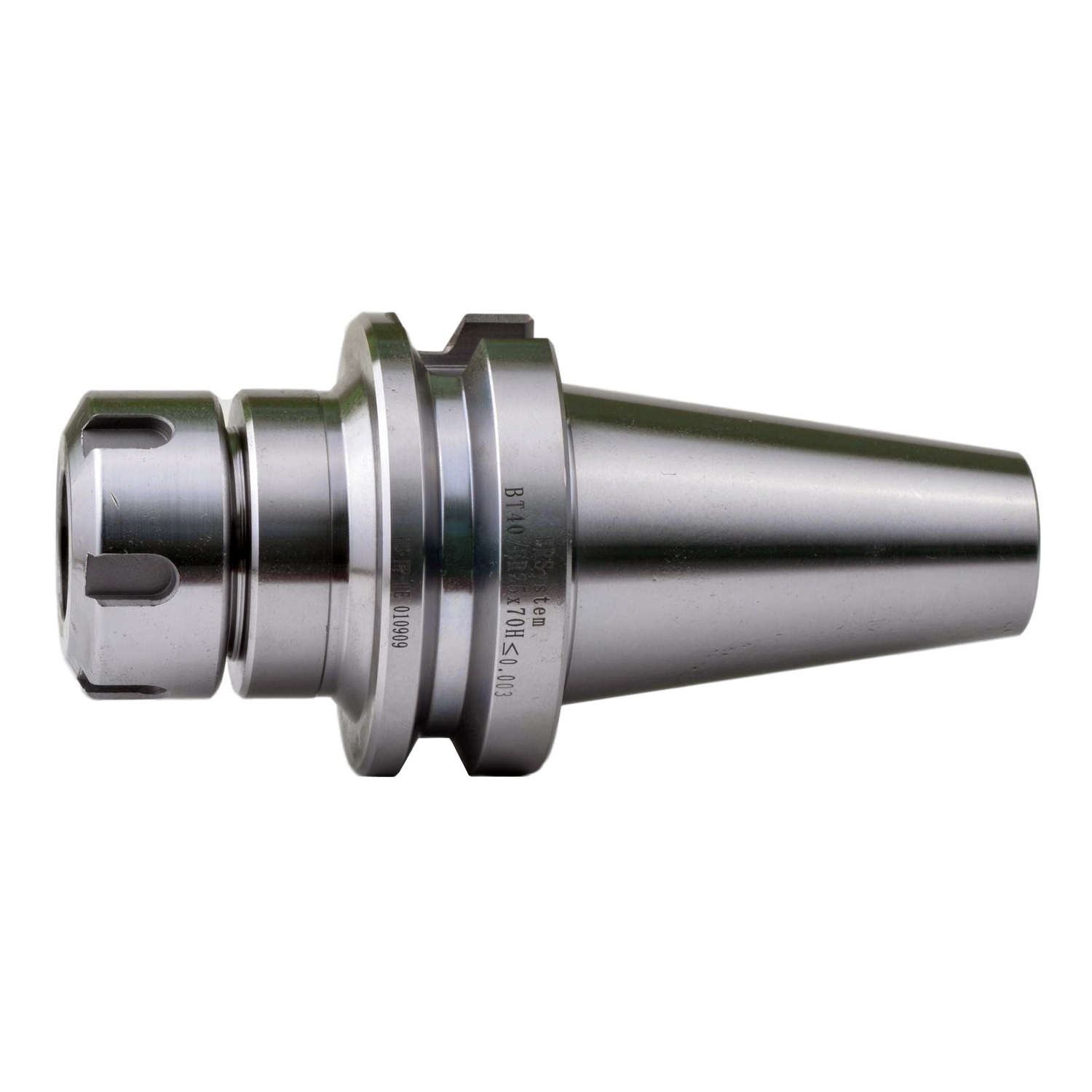

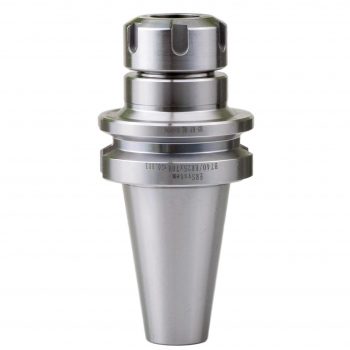

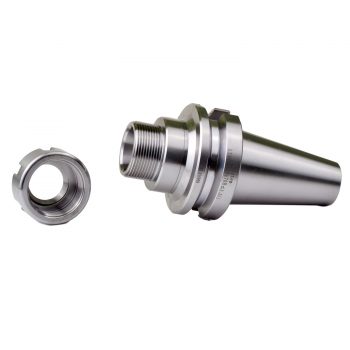

BT40 ER25 tool holder

HIGH PRECISION M16 BT40 ER25 2.76″ COLLET CHUCK TOOL HOLDER G2.5 25000RPM

In Stock

SKU: BT40ER2570S

$47.99

Wishlist
Compare

HIGH PRECISION M16 BT40 ER25 2.76″ COLLET CHUCK TOOL HOLDER G2.5 25000RPM

High-Speed Cutting (G2.5 25000rpm) Balance Available

High Precision Runout: TIR  5μm or 0.00015 “



Qty
Compare
Categories:

HIGH PRECISION M16 BT40 ER25 2.76″ COLLET CHUCK TOOL HOLDER G2.5 25000RPM

MODEL BT40 ER25 2.76″  RUN OUT (TIR) 0.00015″ NECK  DIAMETER d1 1.5″
HOLDER TYPE ER COLLET CHUCK CLAMPING RANGE  3/32-5/8″ CLAMPING SIZE ER25

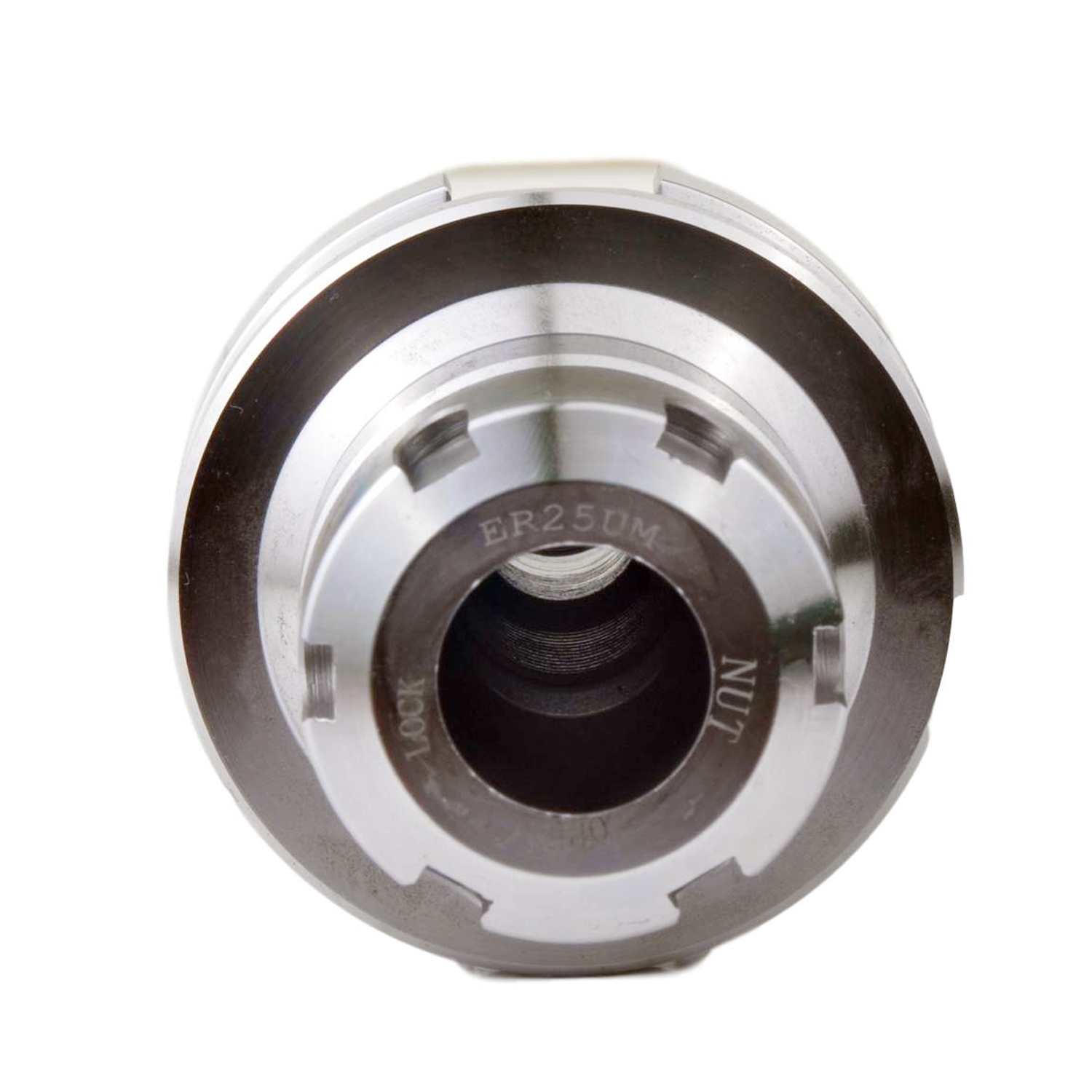

SHANK TYPE BT40 DRAWBAR THREAD M16 X 2 COLLET NUT ER25 UM
BALANCE G2.5 25000rpm Gage Length L 2.76″ COOLANT YES



High-Speed Cutting (G2.5 25000rpm) Balance

High Precision Runout: TIR  5μm or 0.00015

Hardened:  surface HRC58 inside is HRC45

Protection: silver color





Drawings

BT30 ER20 COLLET CHUCK TOOL HOLDER

BT40 TAPER 8° TAPER D1 L FLANGE D
DRAWBAR THREAD BT30 M16X 2 44.45 70 63



Weight 2.5 lbs
Dimensions 15 × 45 × 65 in
Measurement system

Inch (in)
Product Category

Collet Chuck Tool Holder
Shank Type

BT40
Collet Series

ER25
