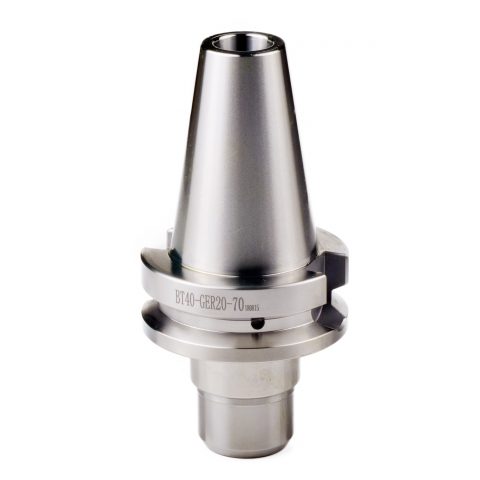

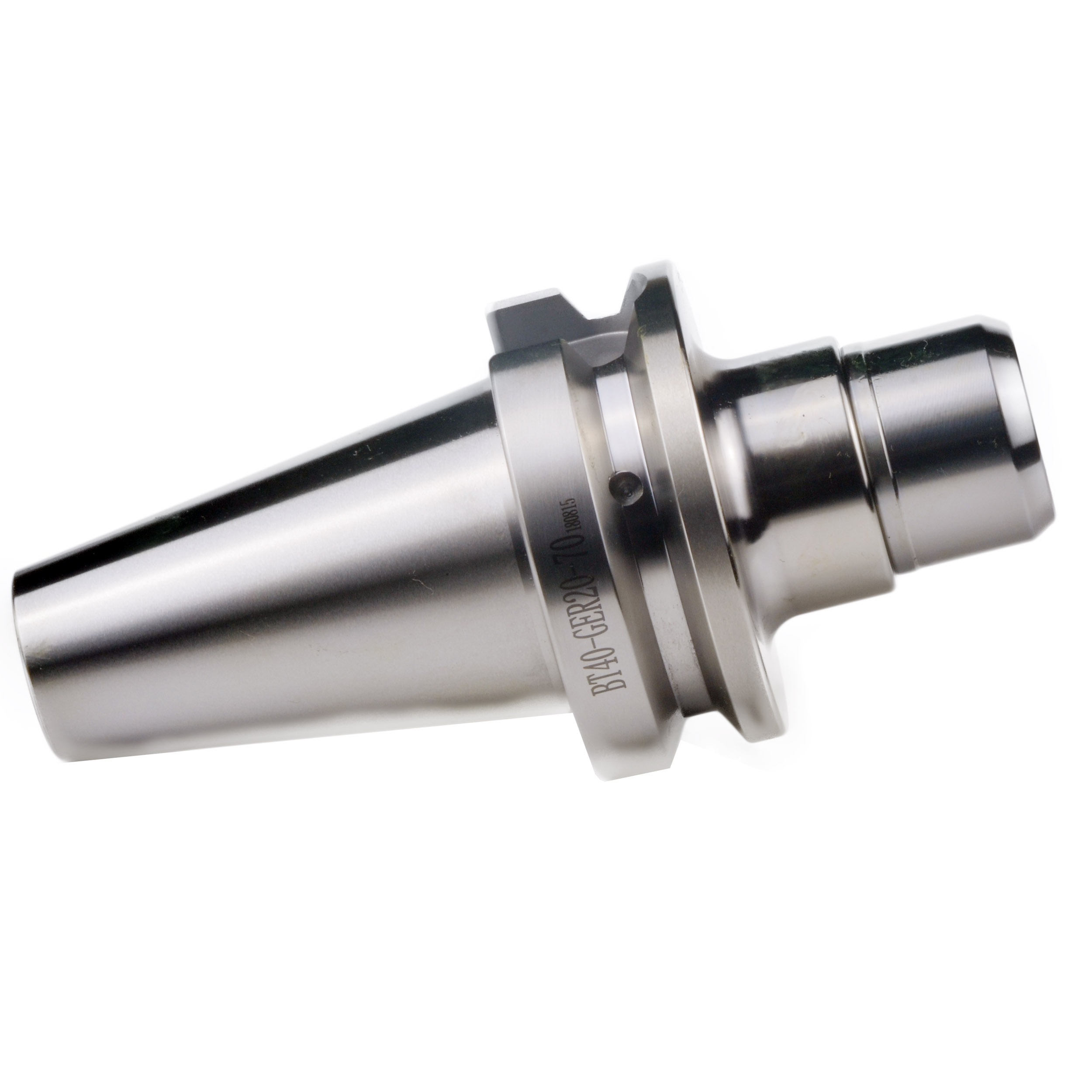

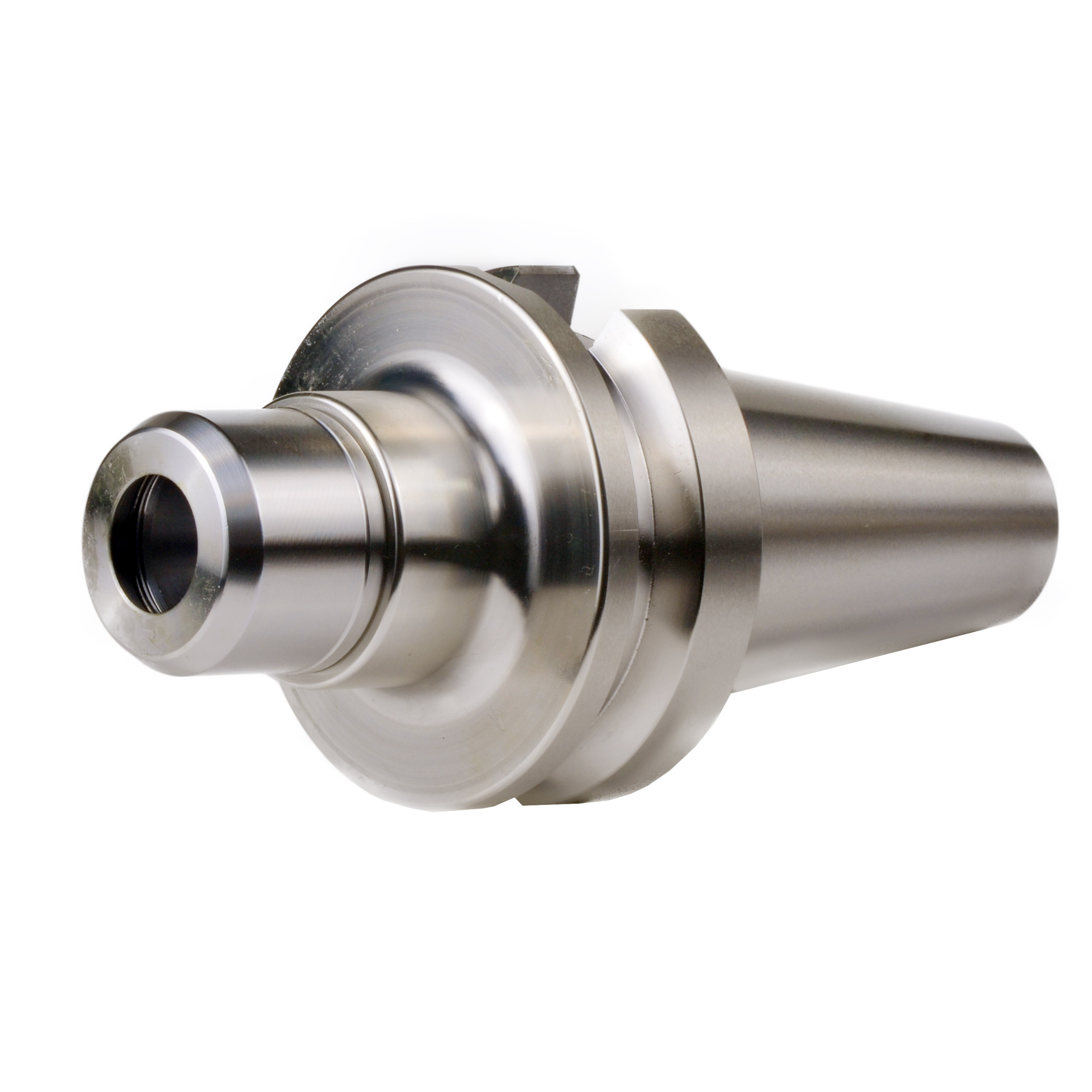

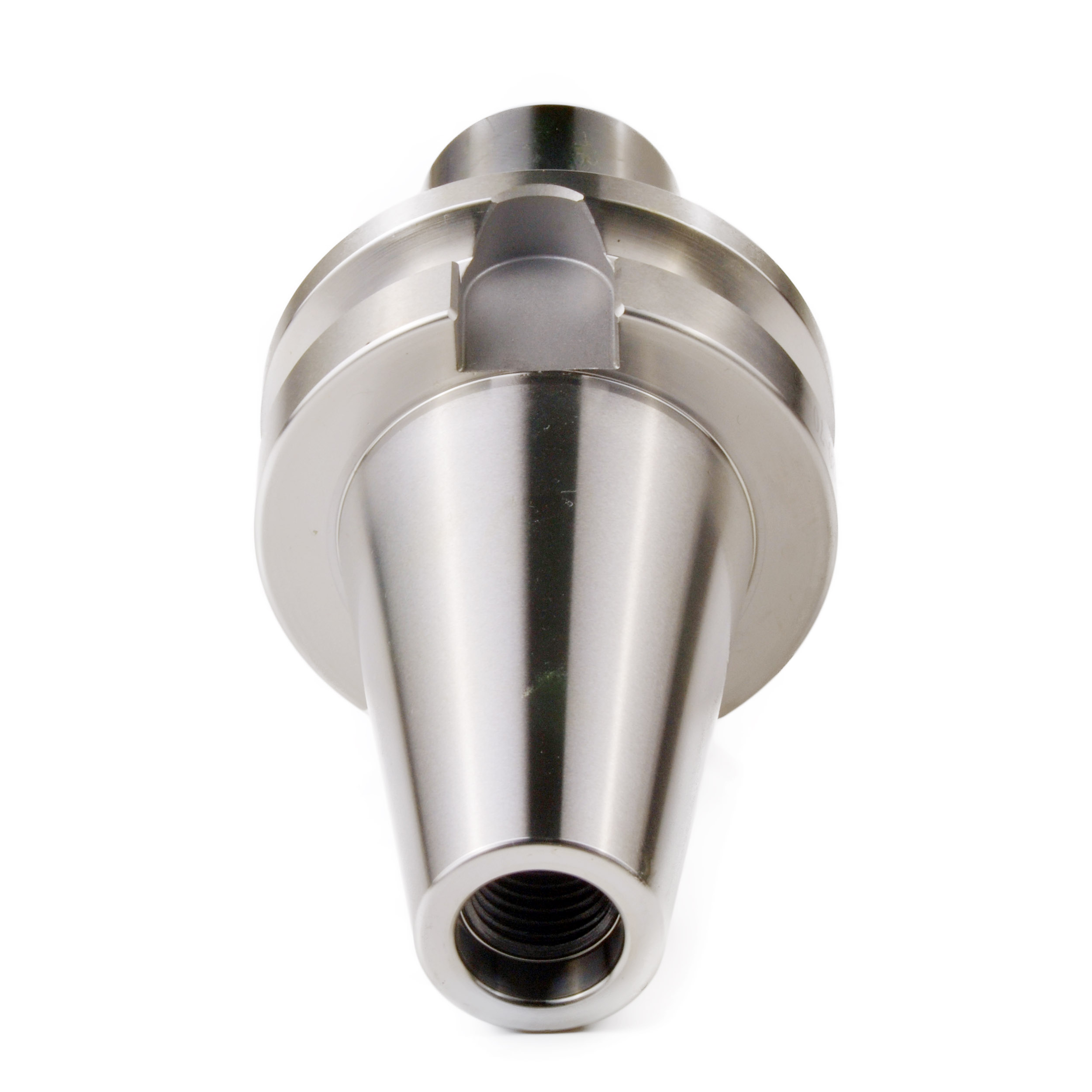

BT40 collet hoder

HIGH PRECISION M16 BT40 ER20 2.5″ COLLET CHUCK TOOL HOLDER G2.5 25000RPM

In Stock

SKU: BT40GER2070

$29.99

Wishlist
Compare

HIGH PRECISION M16 BT40 ER20 2.5″ COLLET CHUCK TOOL HOLDER G2.5 25000RPM

High-Speed Cutting (G2.5 25000rpm) Balance Available

High Precision Runout: TIR  5μm or 0.00015 “



Qty
Compare
Categories:

HIGH PRECISION M16 BT40 ER202.5″ COLLET CHUCK TOOL HOLDER G2.5 25000RPM

MODEL BT40 GER20 2.5″  RUN OUT (TIR) 0.00015″ NECK  DIAMETER d1 1.3″
HOLDER TYPE ER COLLET CHUCK CLAMPING RANGE  3/32-1/2″ CLAMPING SIZE ER20
SHANK TYPE BT40 DRAWBAR THREAD M16 X 2 COLLET NUT d1 27 MM
BALANCE G2.5 25000rpm Gage Length L 2.5″ COOLANT YES



High-Speed Cutting (G2.5 25000rpm) Balance

High Precision Runout: TIR  5μm or 0.00015

Hardened:  surface HRC58 inside is HRC45

Protection: silver color



bt40 er collet holder

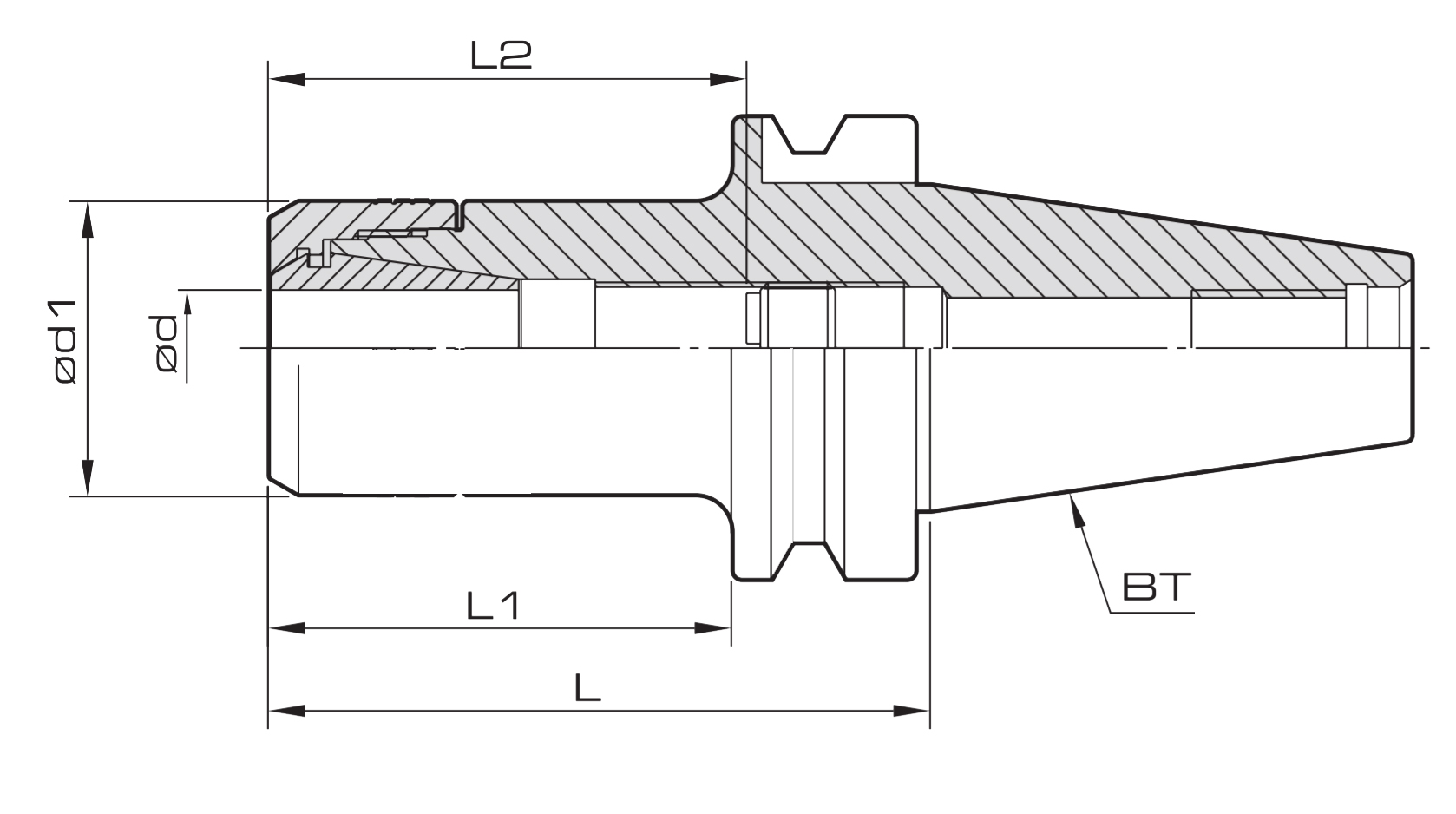

BT40 TAPER 8° TAPER D1 L FLANGE D
DRAWBAR THREAD BT30 M16X 2 44.45 80 63



Weight 2.5 lbs
Dimensions 15 × 45 × 65 in
Measurement system

Inch (in)
Product Category

Collet Chuck Tool Holder
Shank Type

BT40
Collet Series

ER20
