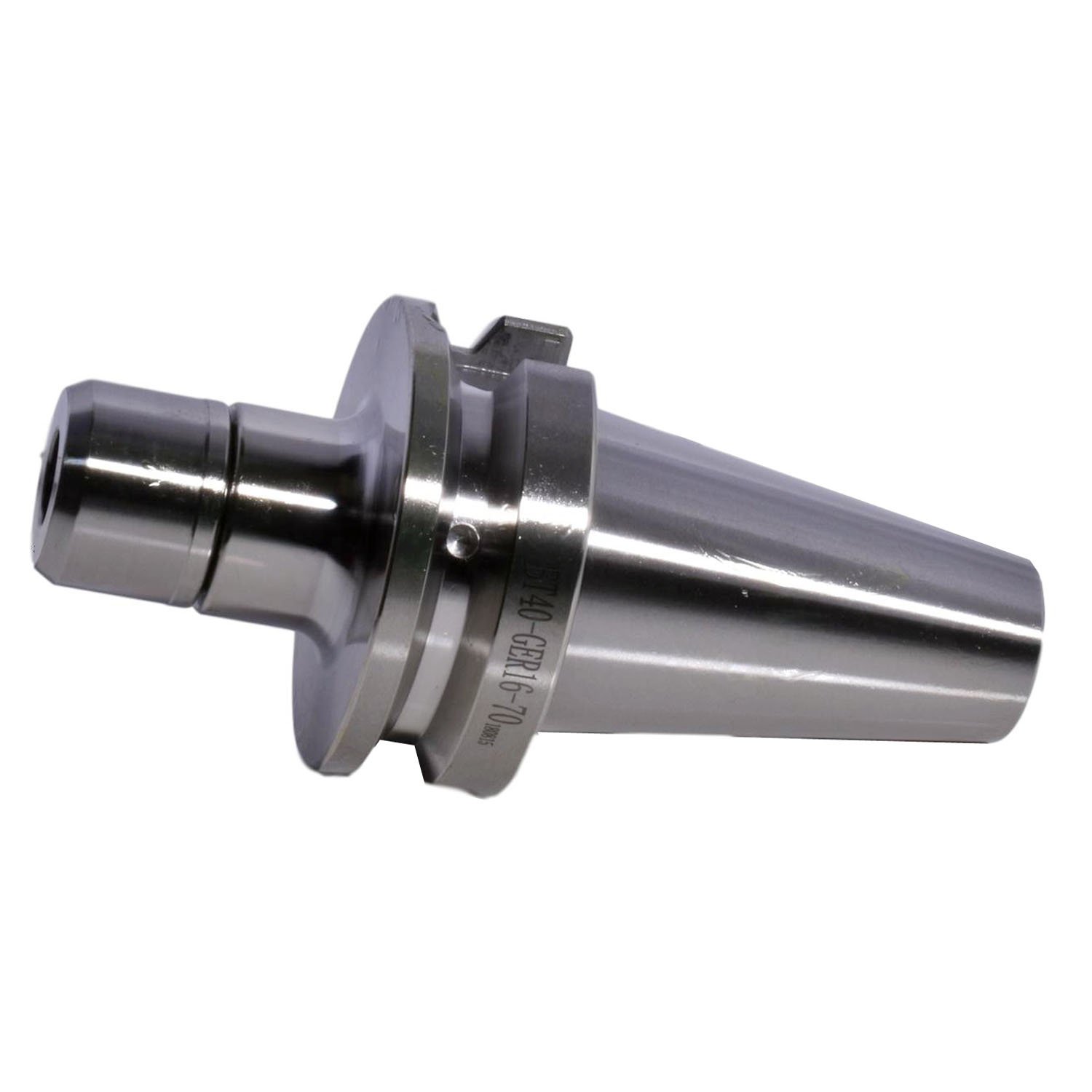

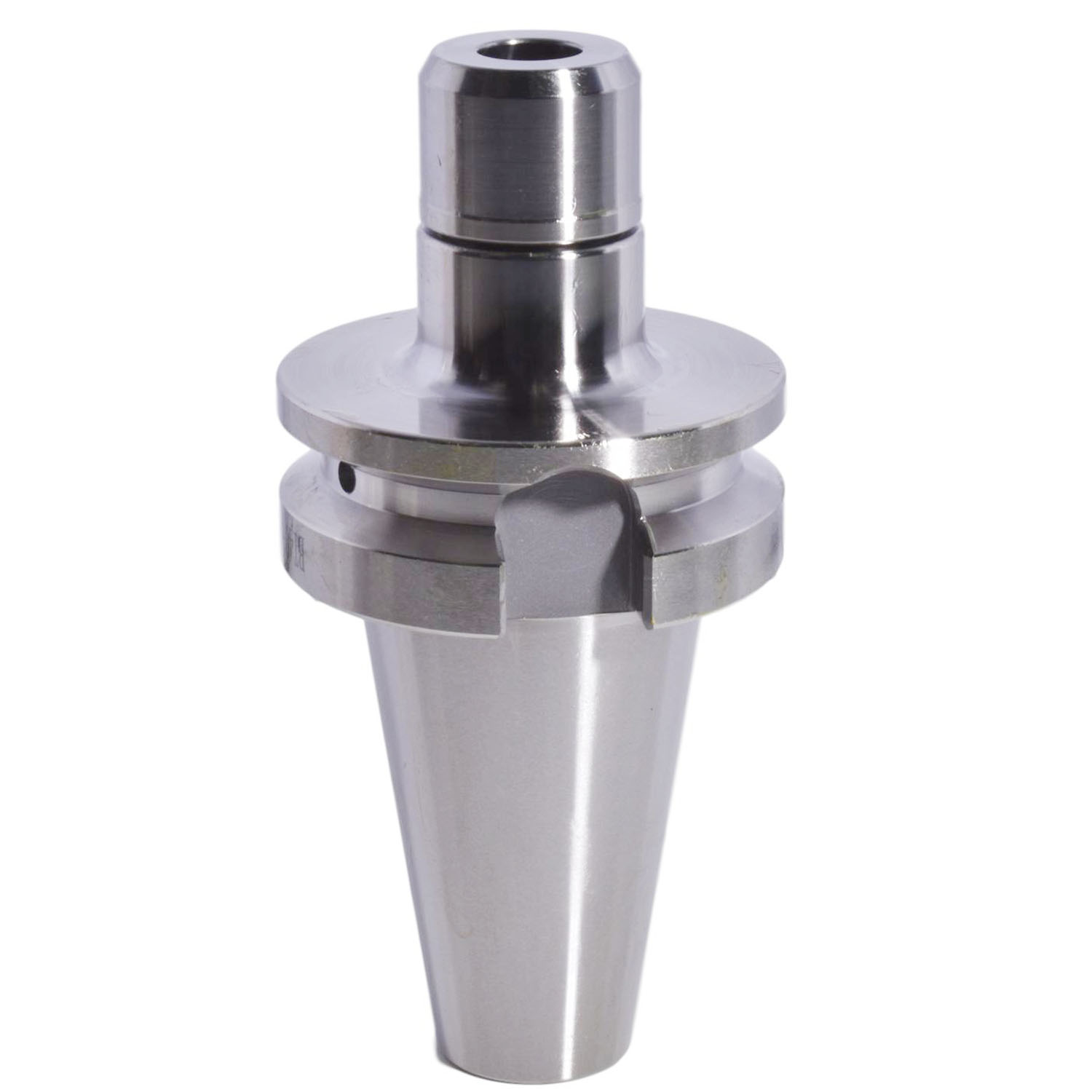

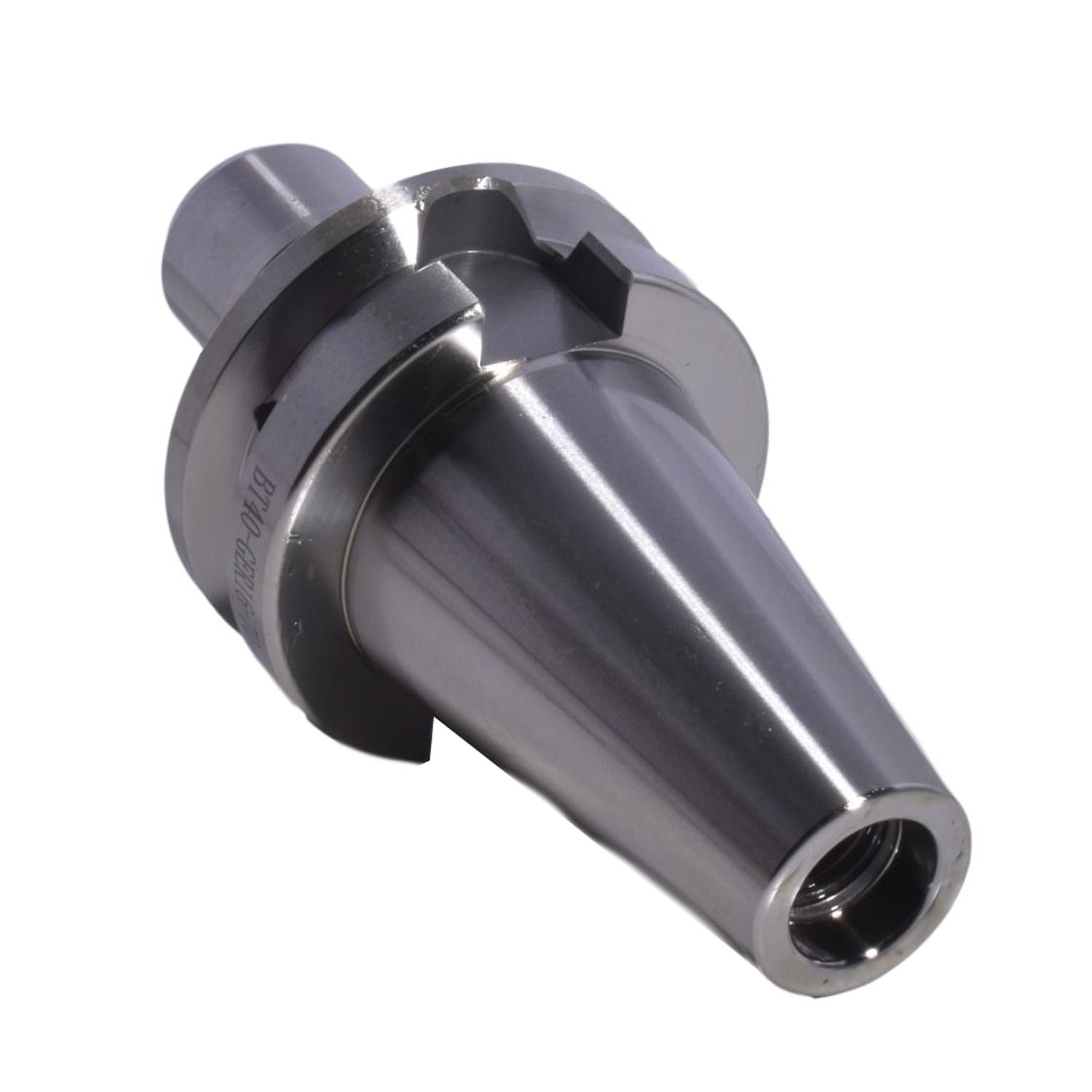

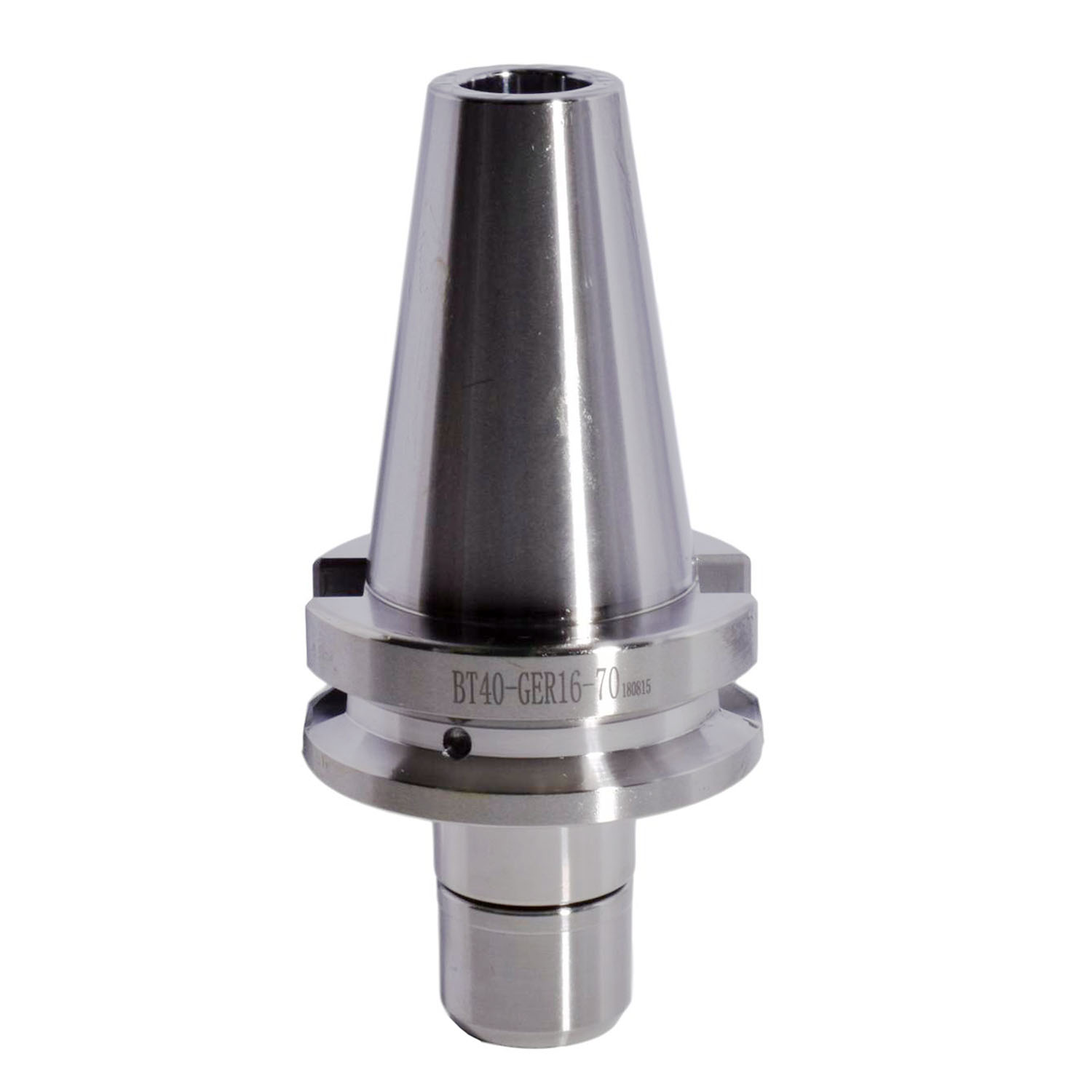

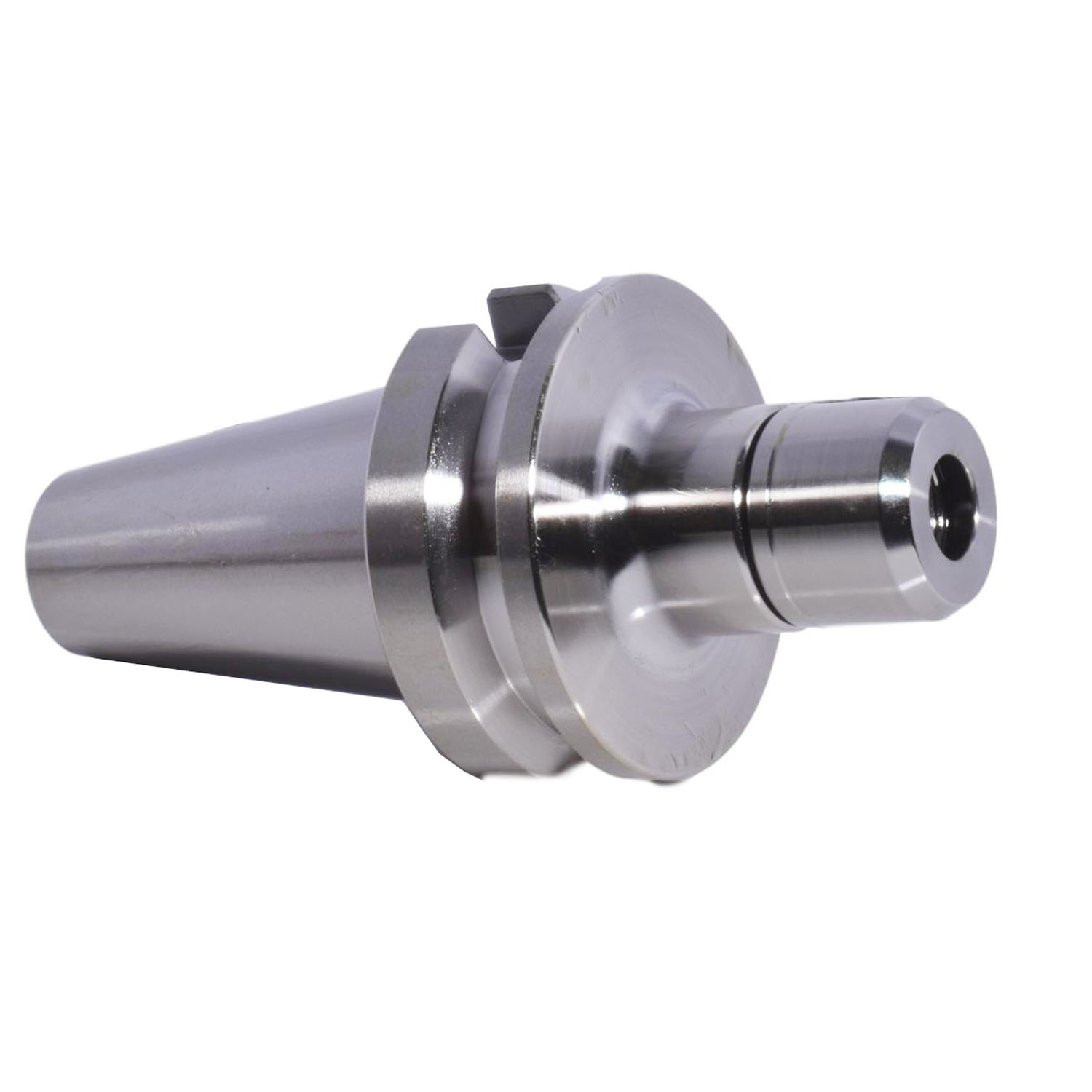

HIGH PRECISION M16 BT40 ER16 2.5โณ COLLET CHUCK TOOL HOLDER G2.5 25000RPM
| MODEL | BT40 GER16 2.5โณ | RUN OUT (TIR) | 0.00015โณ | NECK DIAMETER d1 | 1.5โณ |
| HOLDER TYPE | ER COLLET CHUCK | CLAMPING RANGE | 3/32-3/8โณ | CLAMPING SIZE | ER16 |
| SHANK TYPE | BT40 | DRAWBAR THREAD | M16 X 2 | COLLET NUT d1 | 30MM |
| BALANCE | G2.5 25000rpm | Gage Length L | 2.5โณ | COOLANT | YES |
High-Speed Cutting (G2.5 25000rpm) Balance
High Precision Runout: TIR 5ฮผm or 0.00015
Hardened: surface HRC58 inside is HRC45
Protection: silver color
| BT40 TAPER | 8ยฐ | TAPER D1 | L | FLANGE D |
| DRAWBAR THREAD BT30 | M16X 2 | 44.45 | 80 | 63 |
