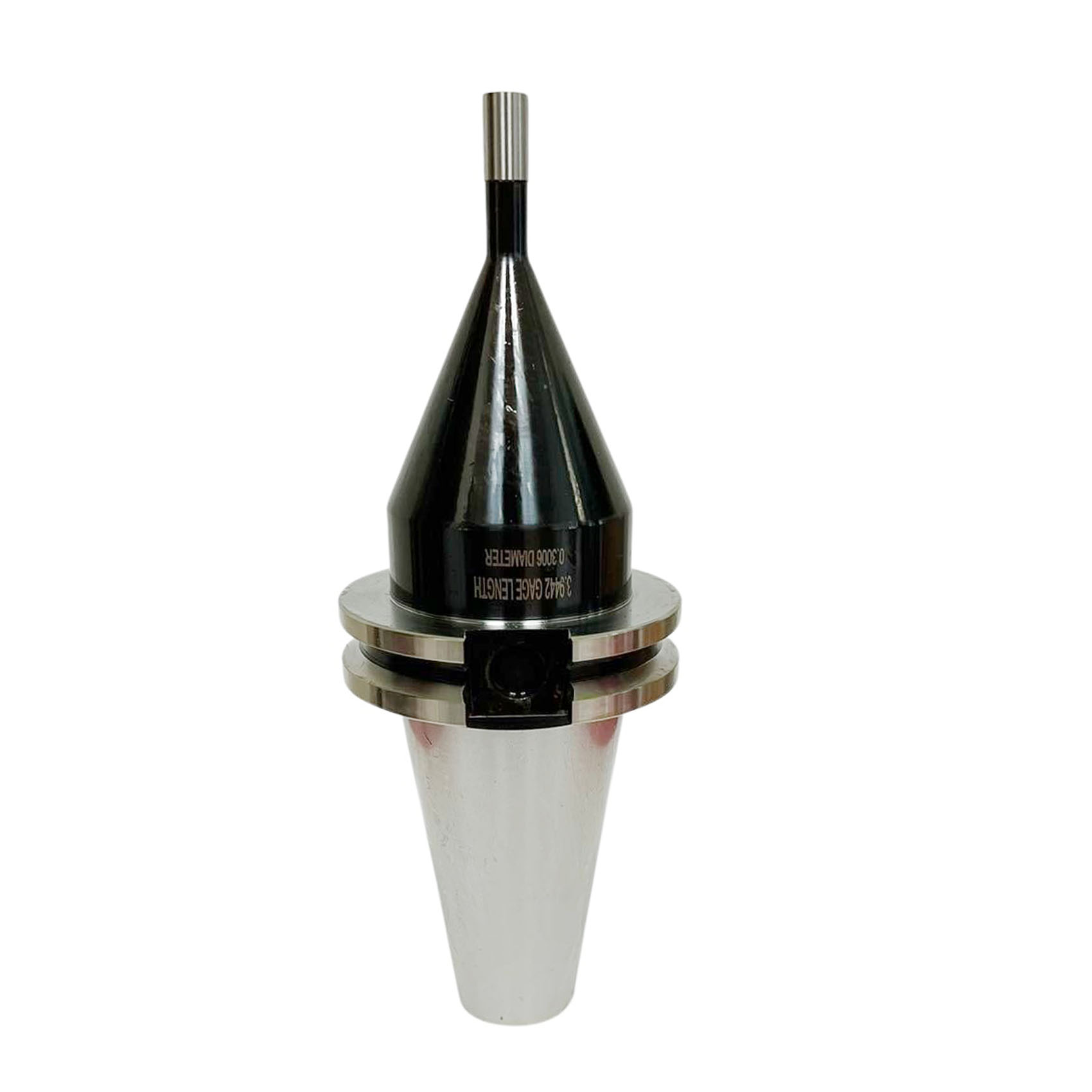

CAT40 TOOL PROBE CALIBRATOR GAGE TOOL HOLDER
| MODEL | CAT40Â CALIBRATOR | Â RUN OUT (TIR) | 0.0002″ |
| HOLDER TYPE | Â CALIBRATOR TOOL HOLDER | ARBOR DIAMETER | 1.5″ |
| SHANK TYPE | CAT40 | DRAWBAR THREAD | 5/8-11″ |
| Test Diameter | 0.30xx” | Gage Length | 3.9xxx” |
The gage length is 4.000 inches to a tolerance of +-.0003
The probe diameter is .3000 inches to a tolerance of +-.0002
BT30/BT40/HSK63A/HSK63F/ /BT50/CAT50 and ISO20 available ,Please contact sales@icarbide.com
Drawings & Parameters Table         Â
| CAT40 TAPER | 8° | TAPER D1 | L1 | FLANGE D |
| DRAWBAR THREAD CAT40 | 5/8-11″Â UNC | 1.75″ | 2.69″ | 2.50″ |
