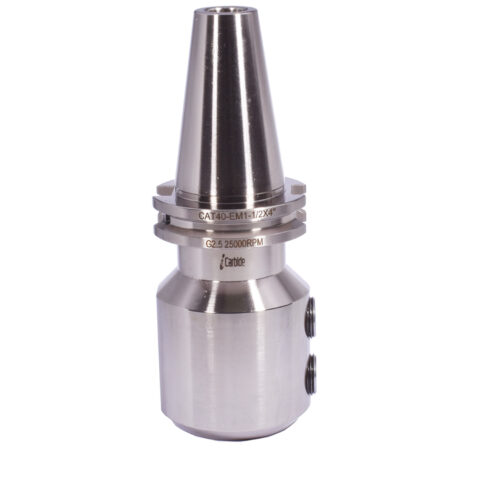

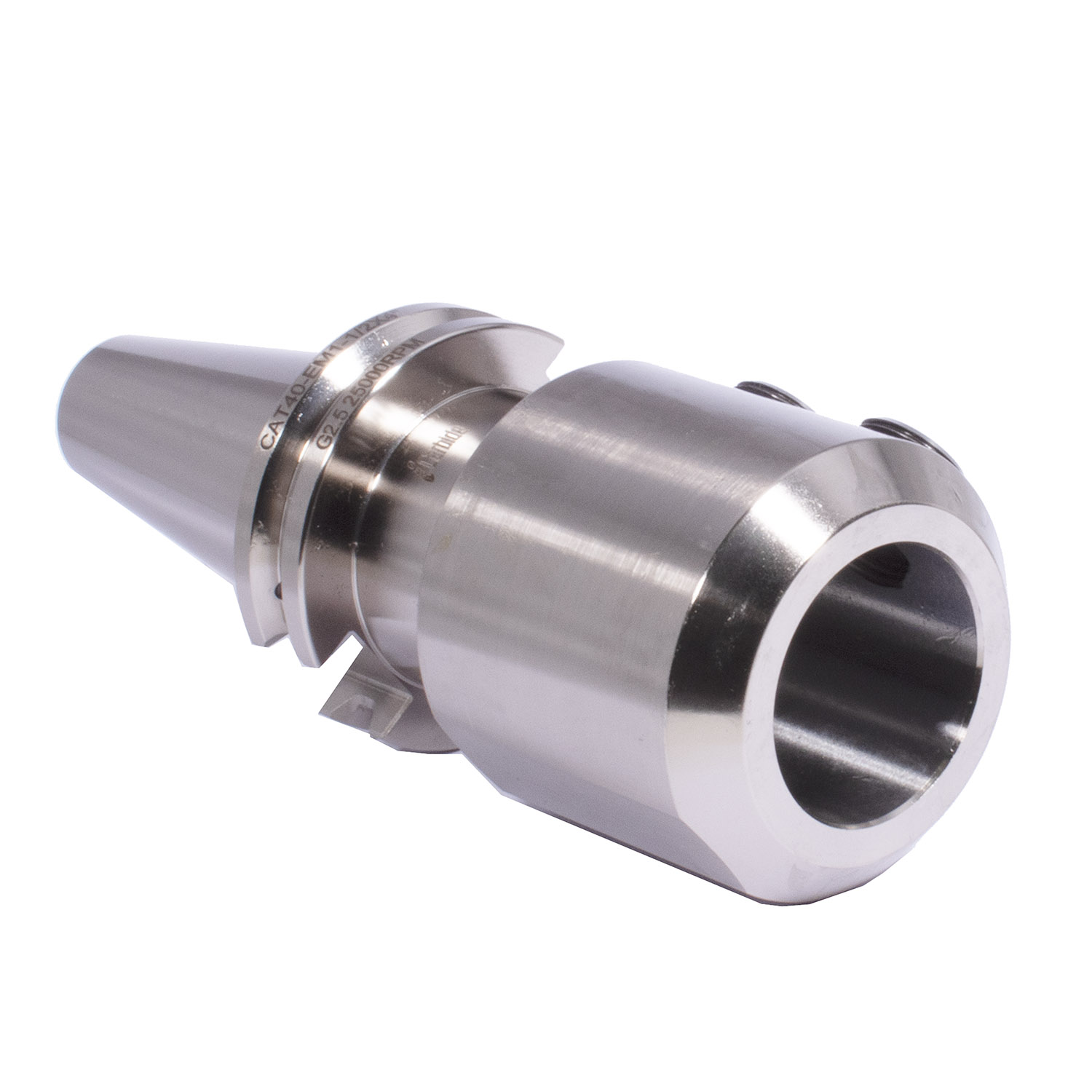

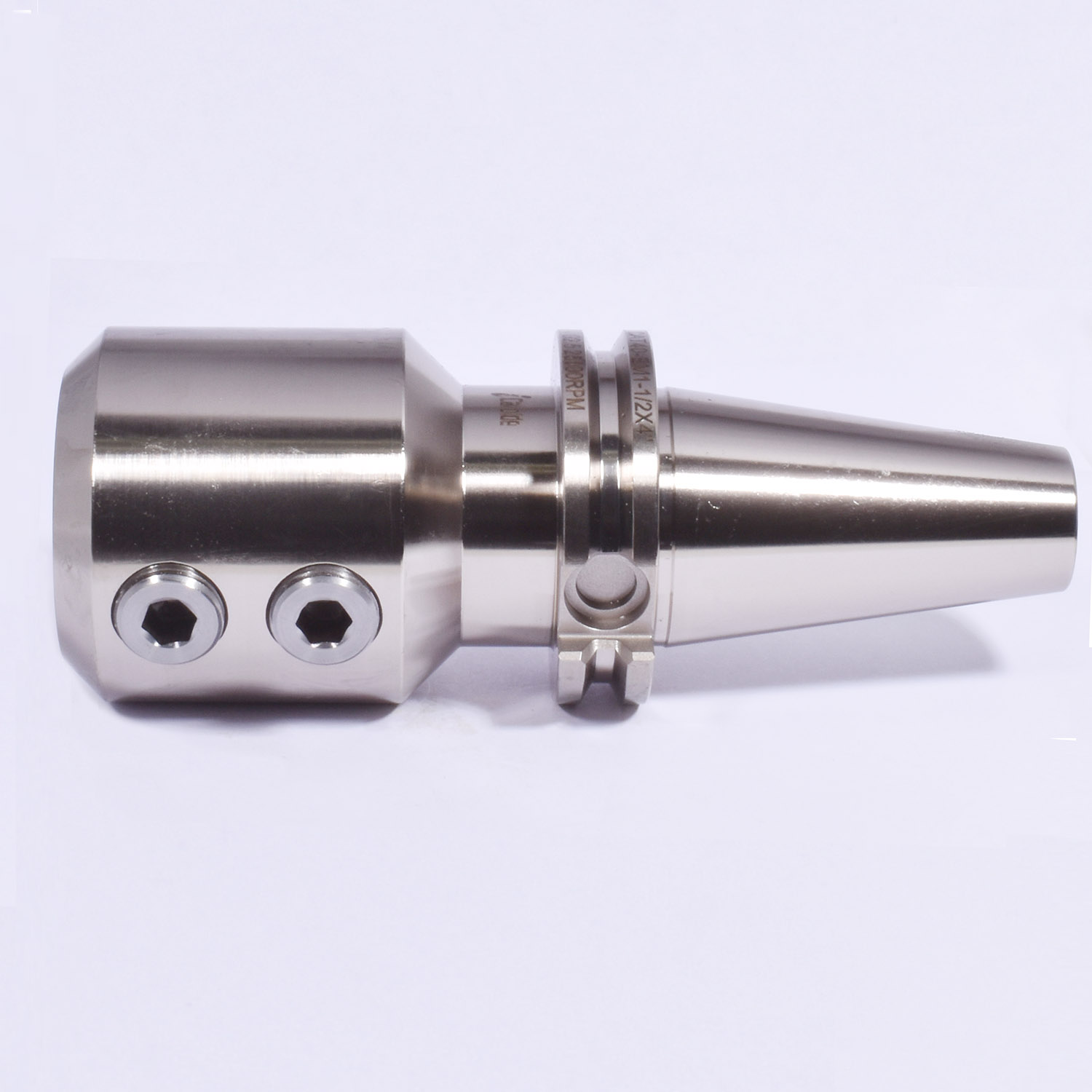

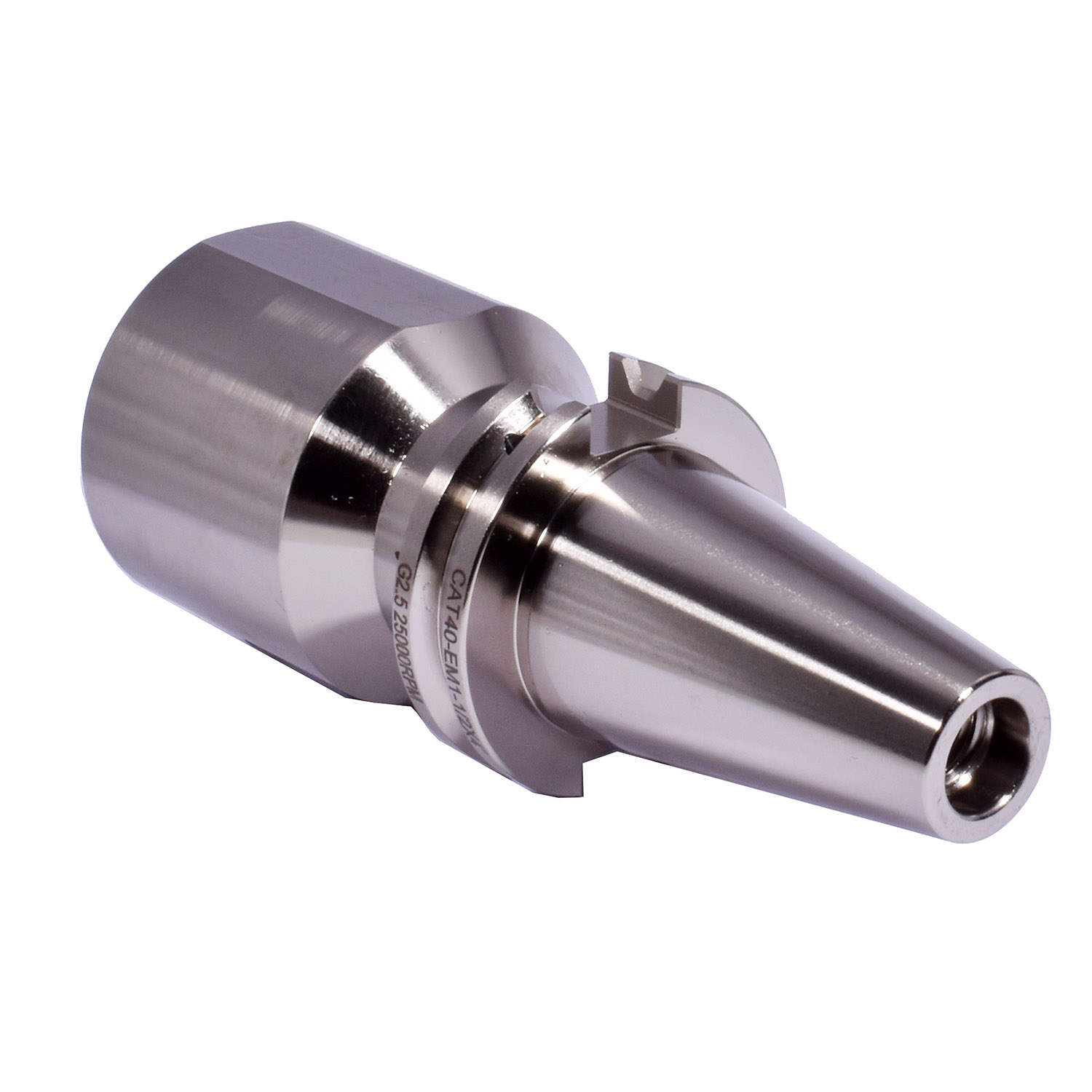

CAT40 1-1/2 X4โณ End Mill Tool Holders Side Lock Milling Holder
| MODEL | CAT40 1-1/2โณX4โณ | RUN OUT (TIR) | 0.00015โณ |
| HOLDER TYPE | END MILL HOLDER | BORE DIAMETER | 1-1/2โณ |
| SHANK TYPE | CAT40 | DRAWBAR THREAD | 5/8-11โณ |
| BALANCE | G2.5 25000rpm | Gage Length | 4โณ |
High-Speed Cutting (G2.5 25000rpm) Balance
High Precision Runout: TIR 5ฮผm or 0.00015
Hardened: surface HRC58 inside is HRC45
Protection: Nickel Silver Coated
Automatically grinding outside arbor and er collet taper
Drawings & Parameters Table
| CAT40 TAPER | 8ยฐ | TAPER D1 | L1 | FLANGE D |
| DRAWBAR THREAD CAT40 | 5/8-11 UNC | 1.75โณ | 2.69โณ | 2.5โณ |
