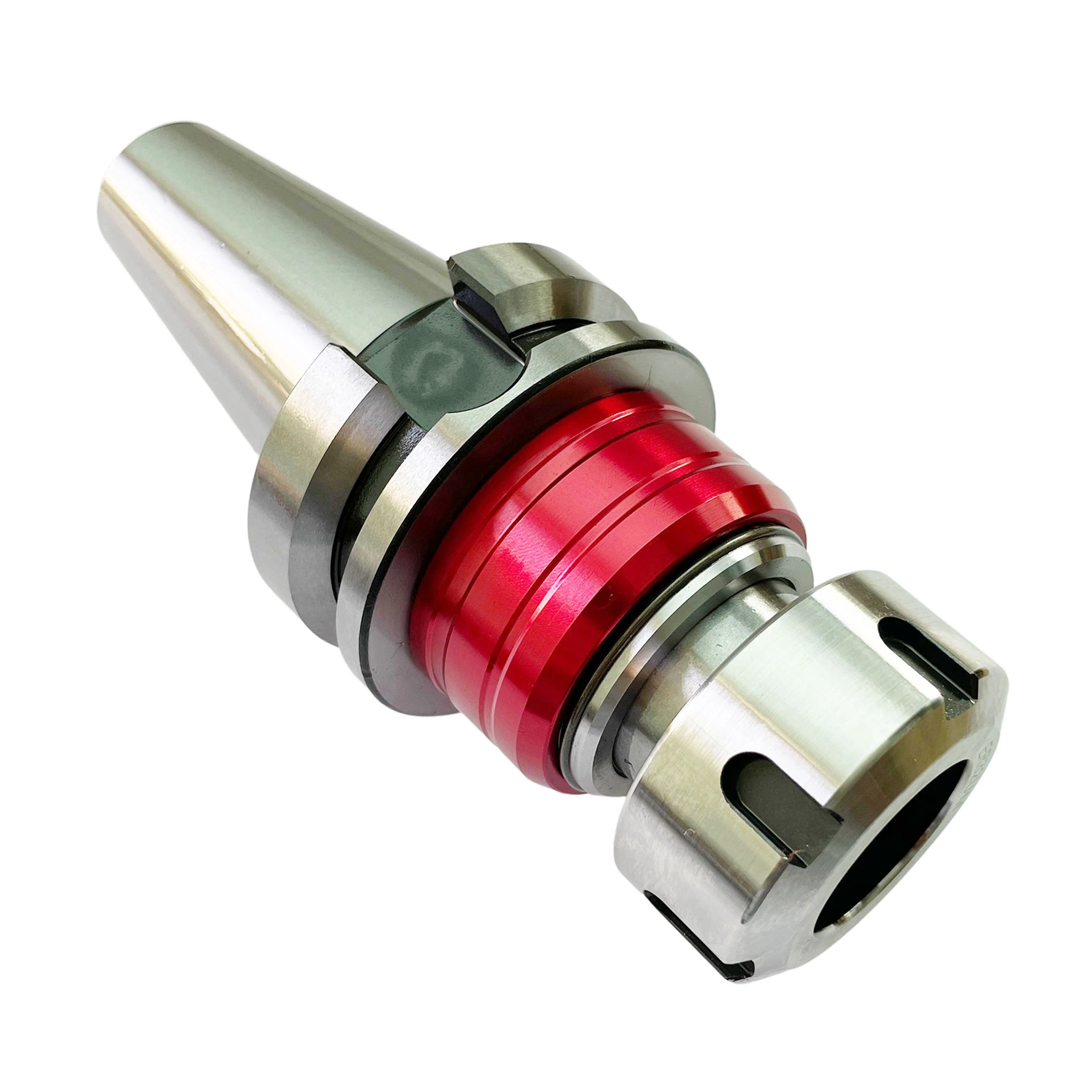

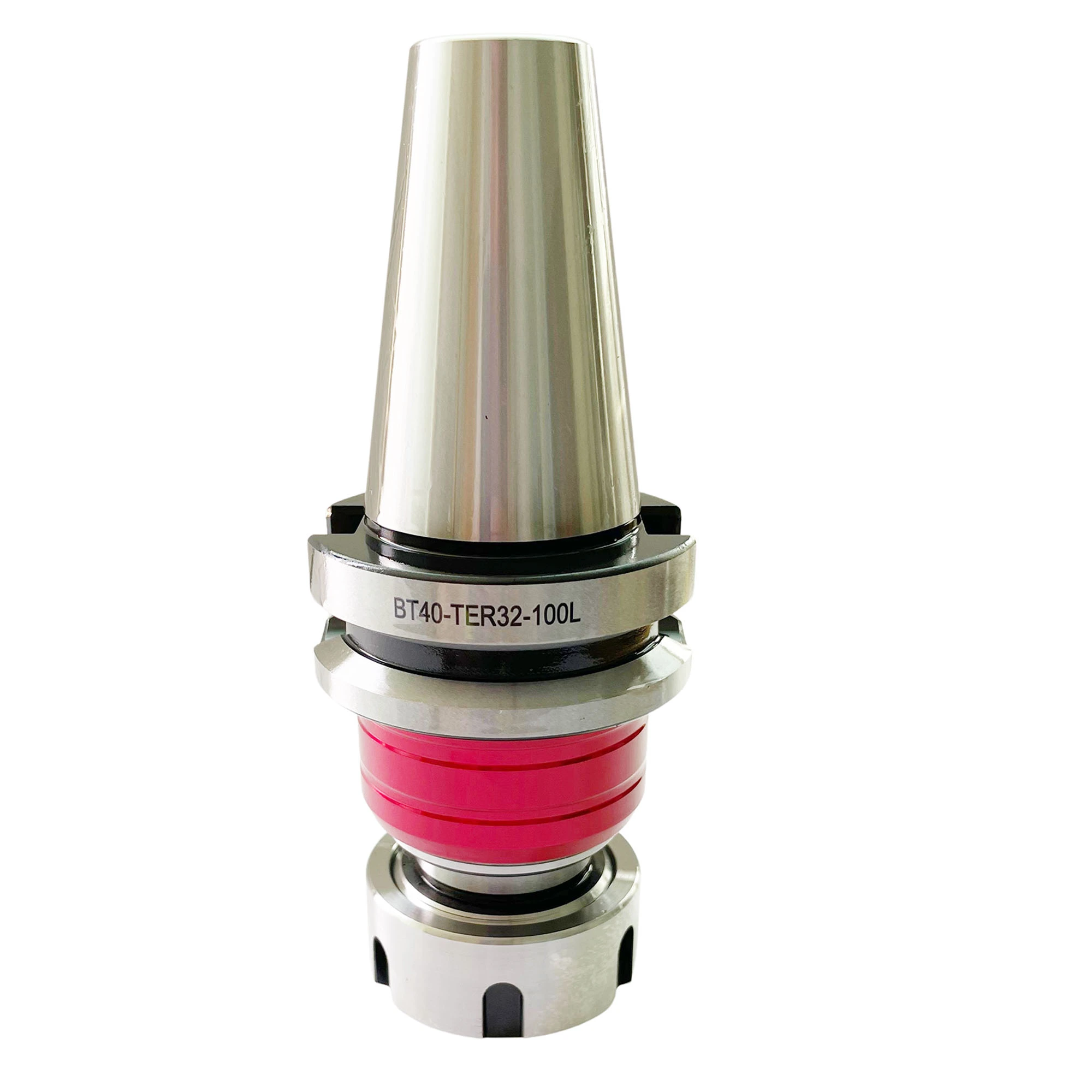

BT40 ER32 FLOATING TAPPING COLLET CHUCK TOOL HOLDER

In Stock

SKU: BT40TER32100-1

$99.99

BT40 ER32  FLOATING TAPPING COLLET CHUCK TOOL HOLDER

For ER32 Floating Tap Tool Holder





Qty
Compare

BT40 ER32 FLOATING TAPPING COLLET CHUCK TOOL HOLDER COMPRESSION TAP

MODEL BT40-ER32 4″  RUN OUT (TIR) 0.0004″ NECK  DIAMETER D 1.5″
HOLDER TYPE TAPPING HOLDER CLAMPING RANGE  3/32-3/4 CLAMPING SIZE ER32
SHANK TYPE BT40 DRAWBAR THREAD M16 COLLET NUT ER32 UM
BALANCE MAX 10000rpm Gage Length 4″ COOLANT YES

Compression range 10-15mm (Only)

High Precision Runout: TIR  10μm or 0.0004

Hardened:  surface HRC52

Protection: oxide black

Weight 1.5 lbs
Dimensions 15 × 45 × 65 in
Measurement system

Inch (in)

Product Category

Collet Chuck Tool Holder

Shank Type

BT40

Collet Series

ER32
