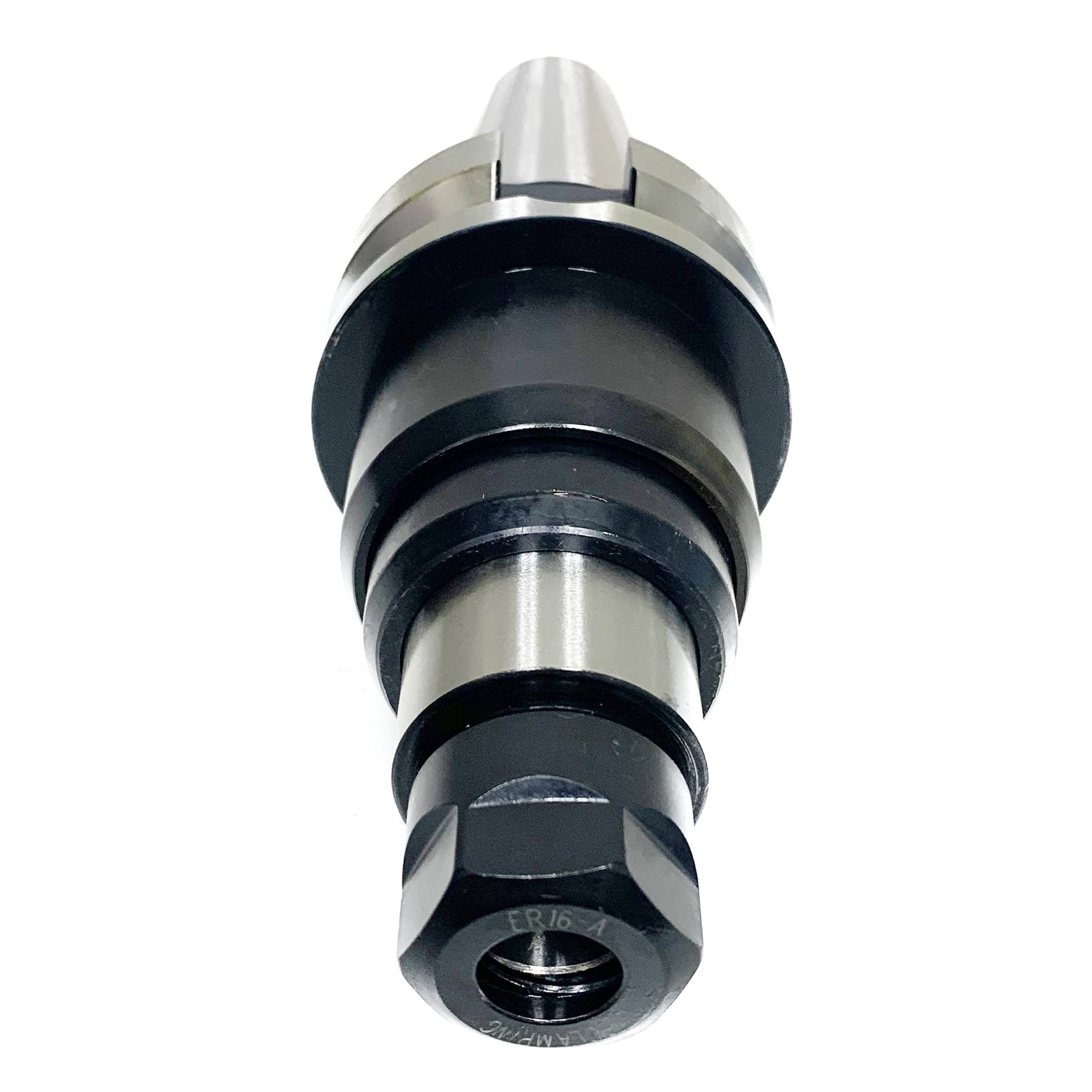

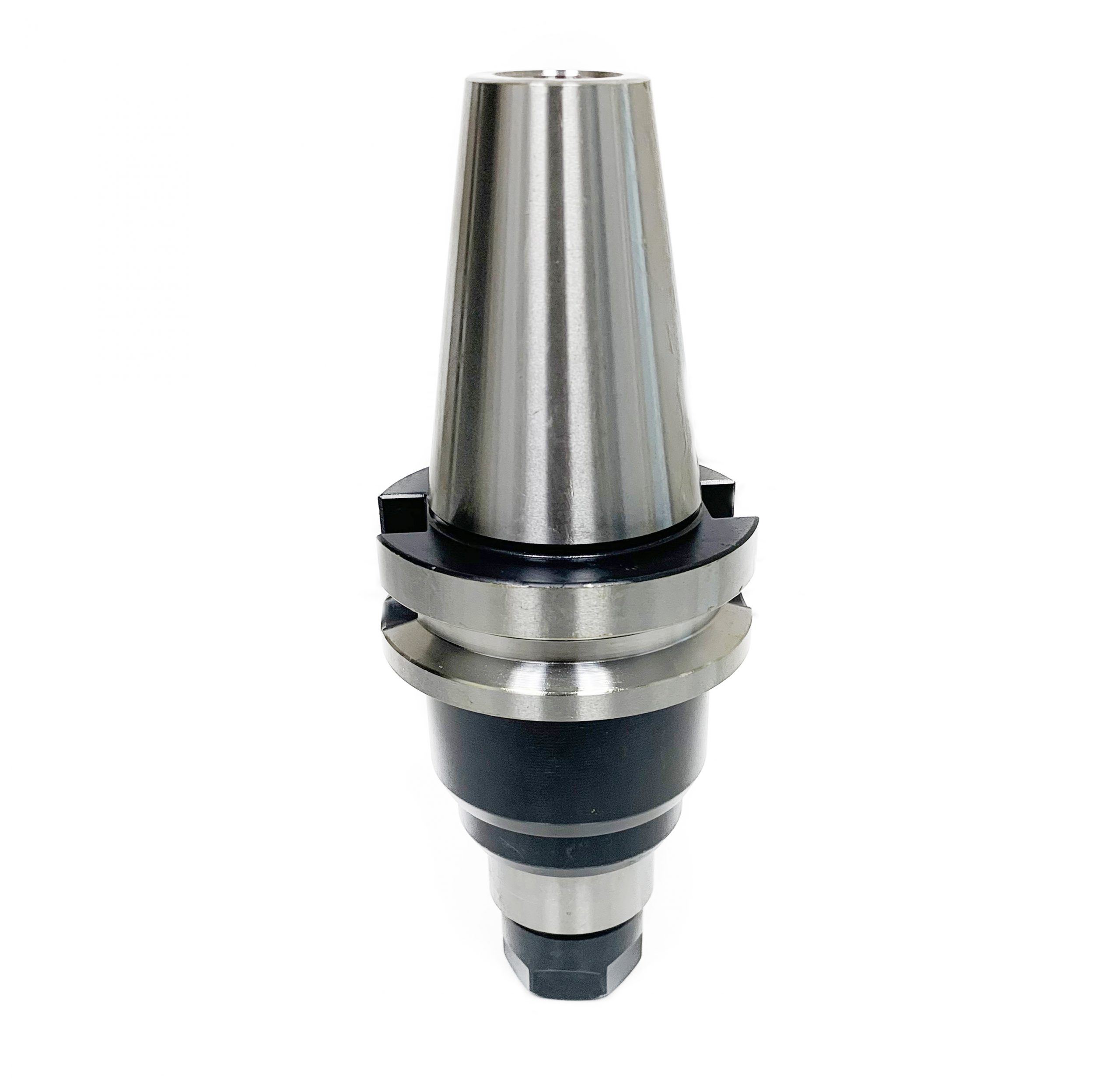

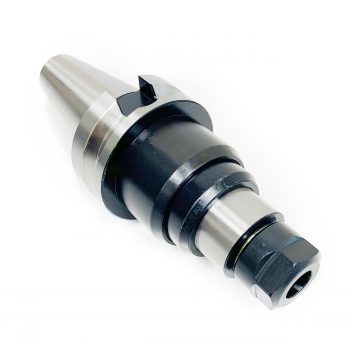

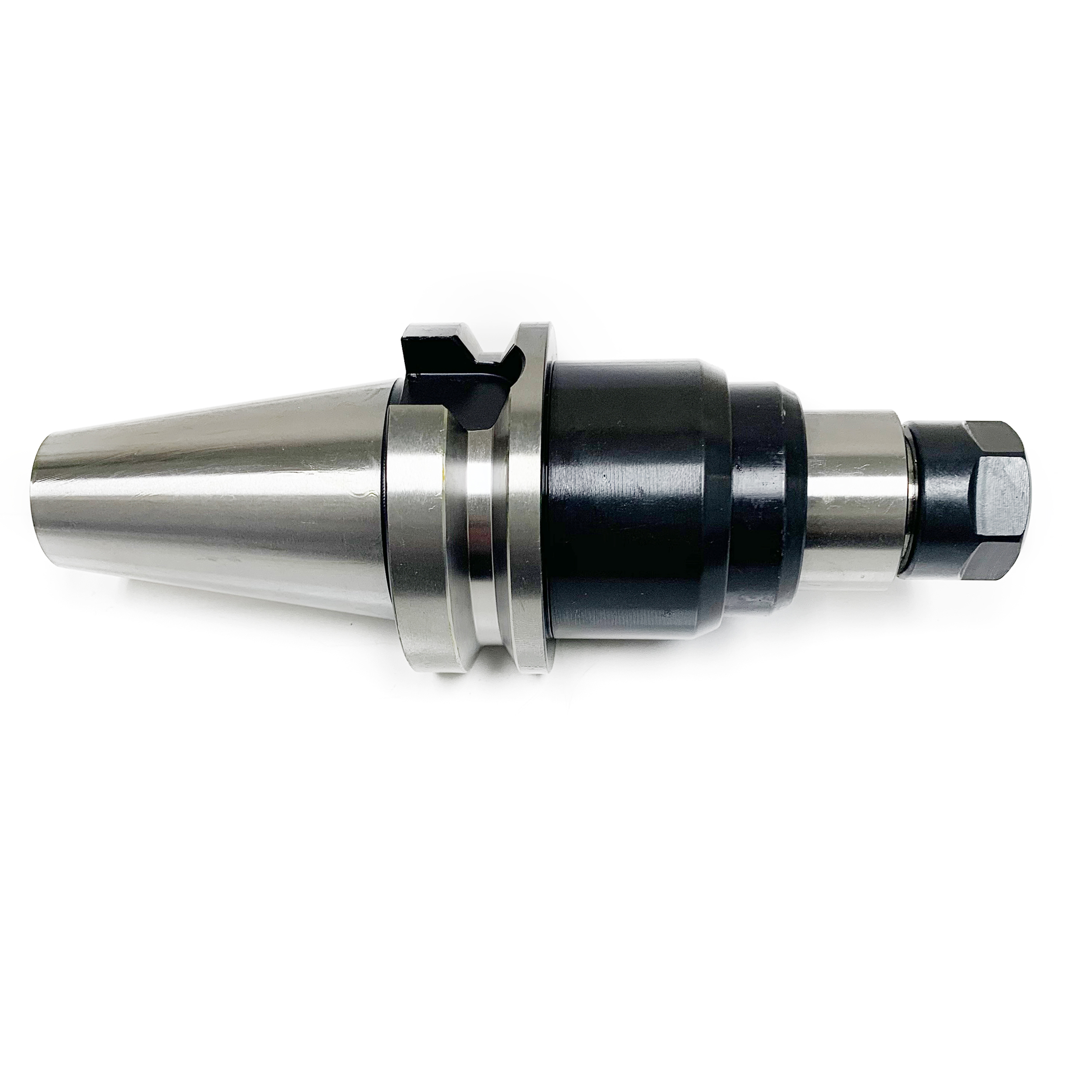

BT40 ER16 FLOATING TAPPING COLLET CHUCK TOOL HOLDER COMPRESSION TAP
MODEL | BT40-ER16 4″ | RUN OUT (TIR) | 0.0004″ | NECK DIAMETER D | 1.2″ |
HOLDER TYPE | TAPPING HOLDER | CLAMPING RANGE | 3/32-3/8 | CLAMPING SIZE | ER16 |
SHANK TYPE | BT40 | DRAWBAR THREAD | M16 | COLLET NUT | ER16 A |
BALANCE | MAX 10000rpm | Gage Length | 4″ | COOLANT | YES |
Compression range 15mm
High Precision Runout: TIR 10μm or 0.0004
Hardened: surface HRC52
