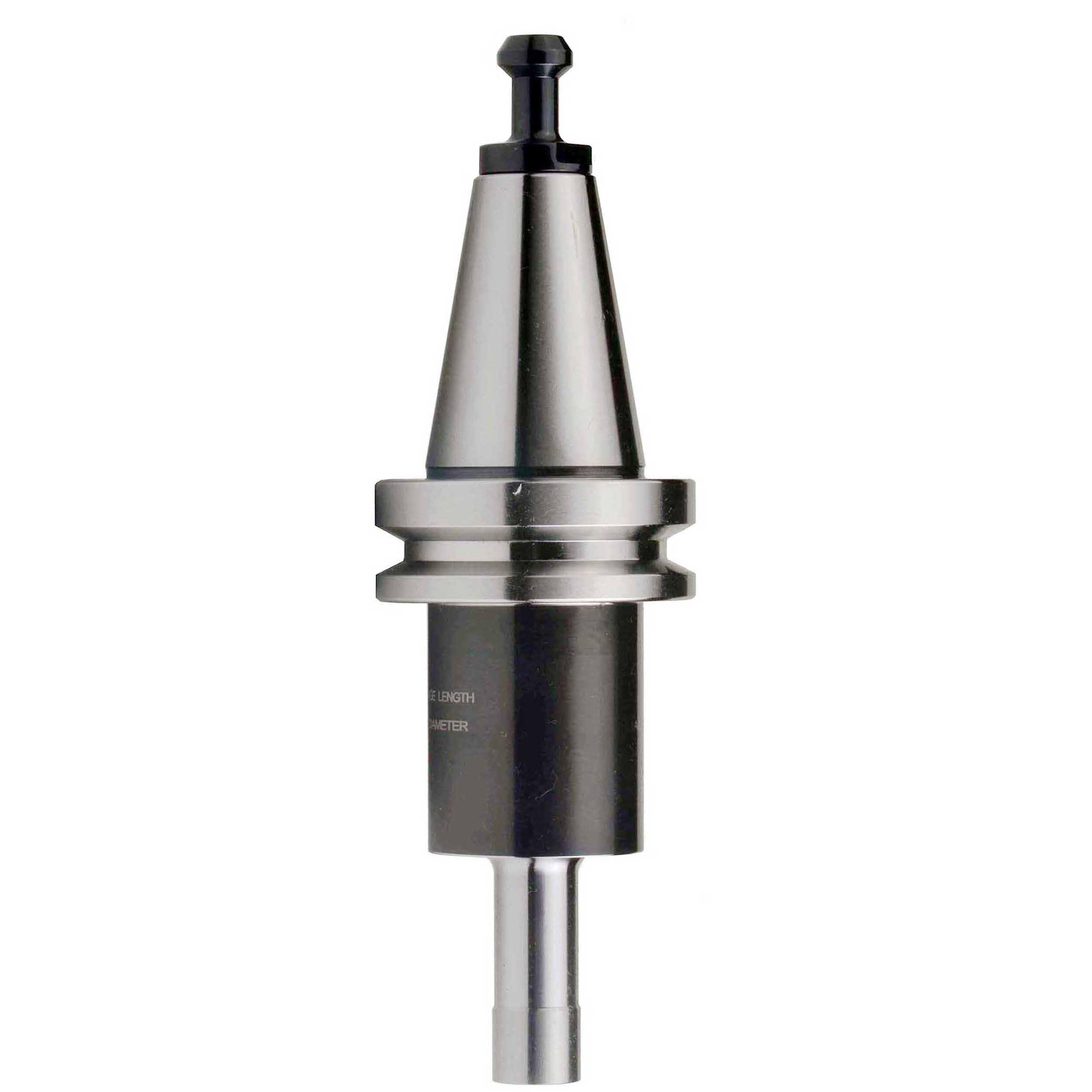

BT30 CALIBRATOR GAGE TOOL HOLDER
| MODEL | BT30Â CALIBRATOR | Â RUN OUT (TIR) | 0.0002″ |
| HOLDER TYPE | Â CALIBRATOR TOOL HOLDER | ARBOR DIAMETER | 1.5″ |
| SHANK TYPE | BT30 | DRAWBAR THREAD | M12 |
| Test Diameter | 0.5″ | Gage Length | 5.0″ |
The gage length is 5.000 inches to a tolerance of +-.0003
The probe diameter is .5000 inches to a tolerance of +-.0002Â Â Â Â Â Â Â
