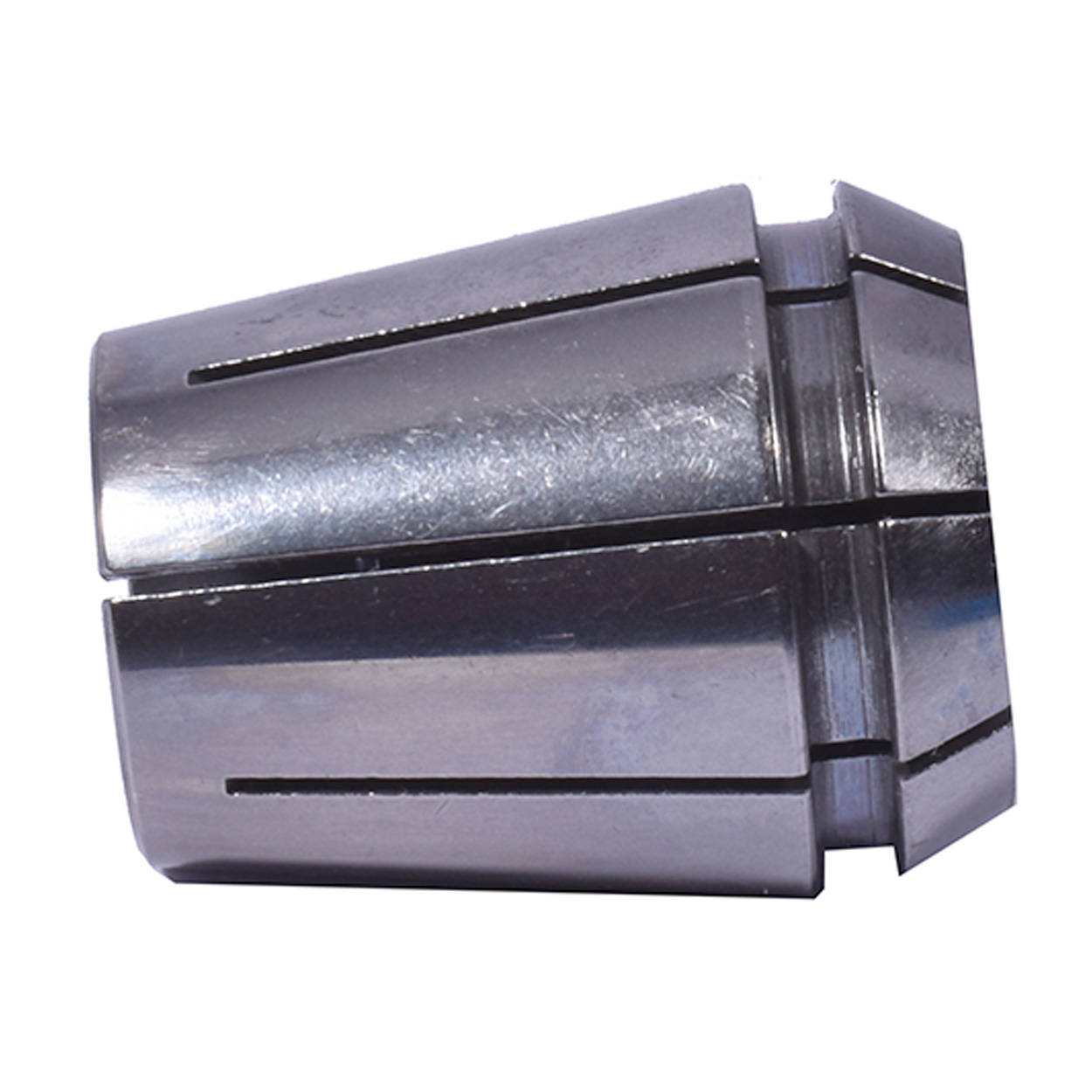

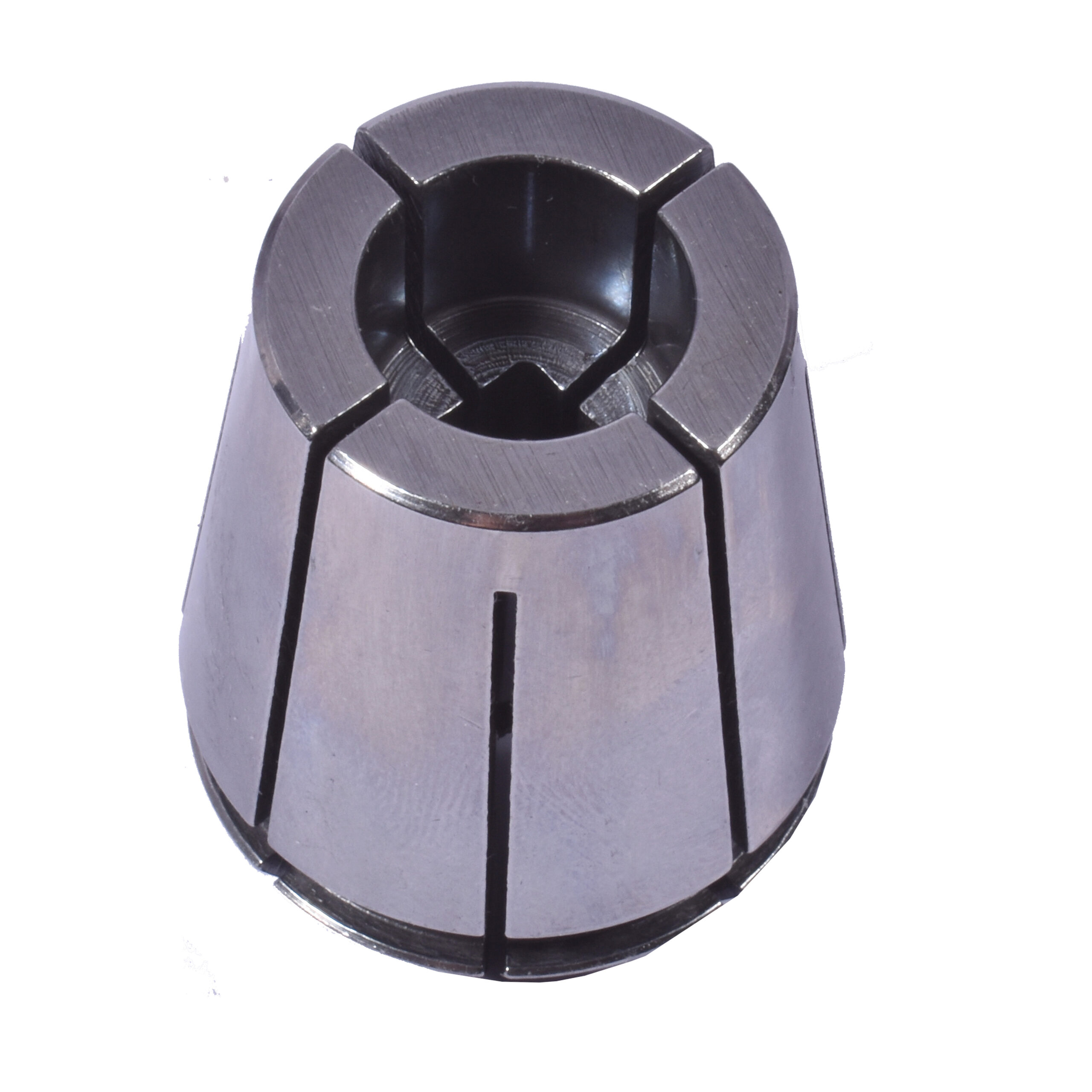

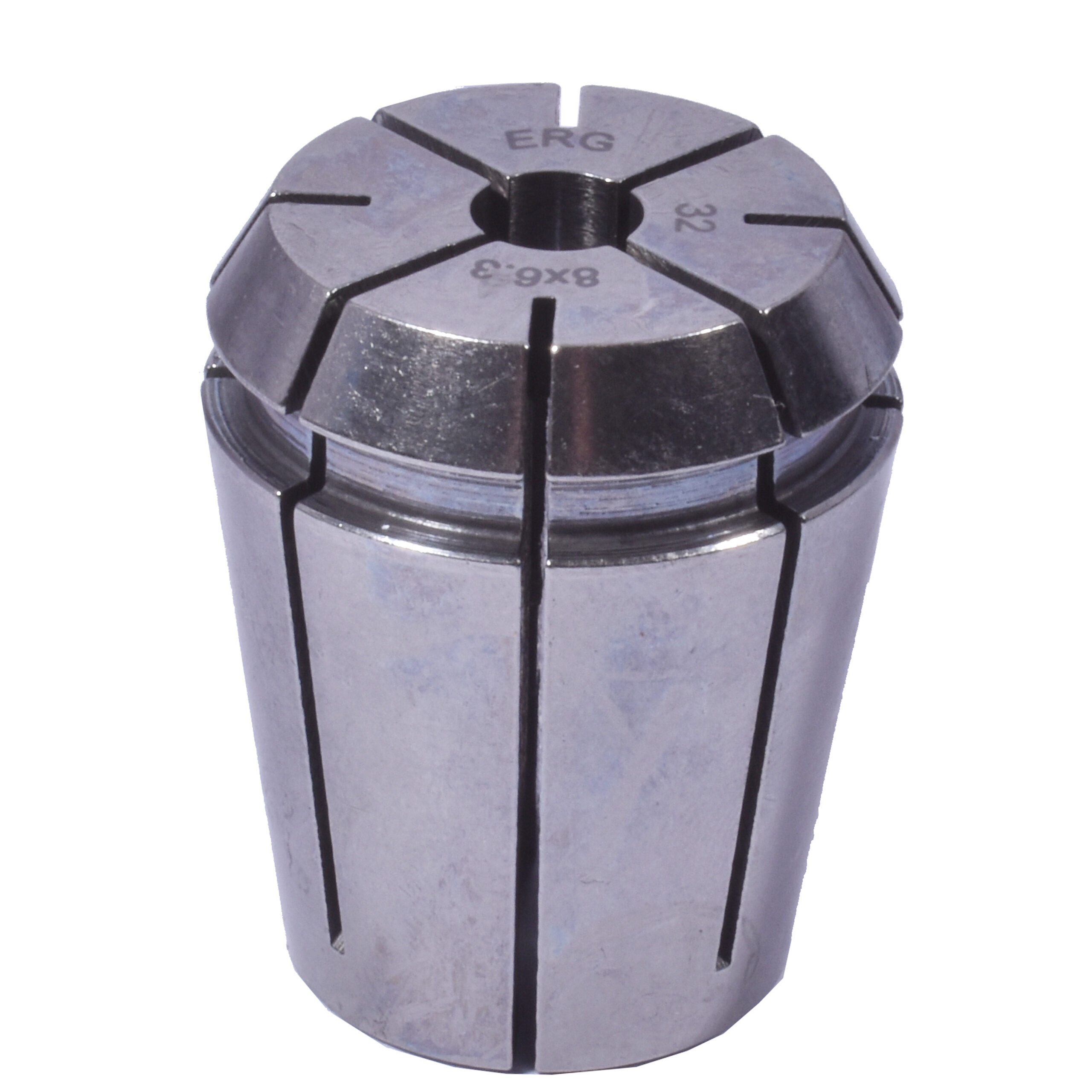

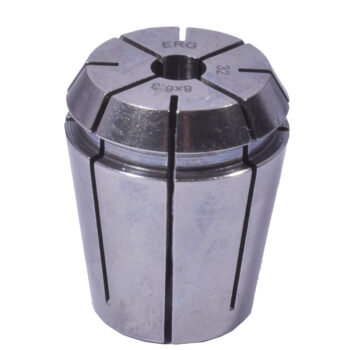

8MM ER32 TAP RIGID COLLETS
| STEEL SEALED COOLANT COLLET | ER32 | MATERIAL | SUJ2 |
| CLAMPING RANGE | 8mm | HARDNESS | HRC45 |

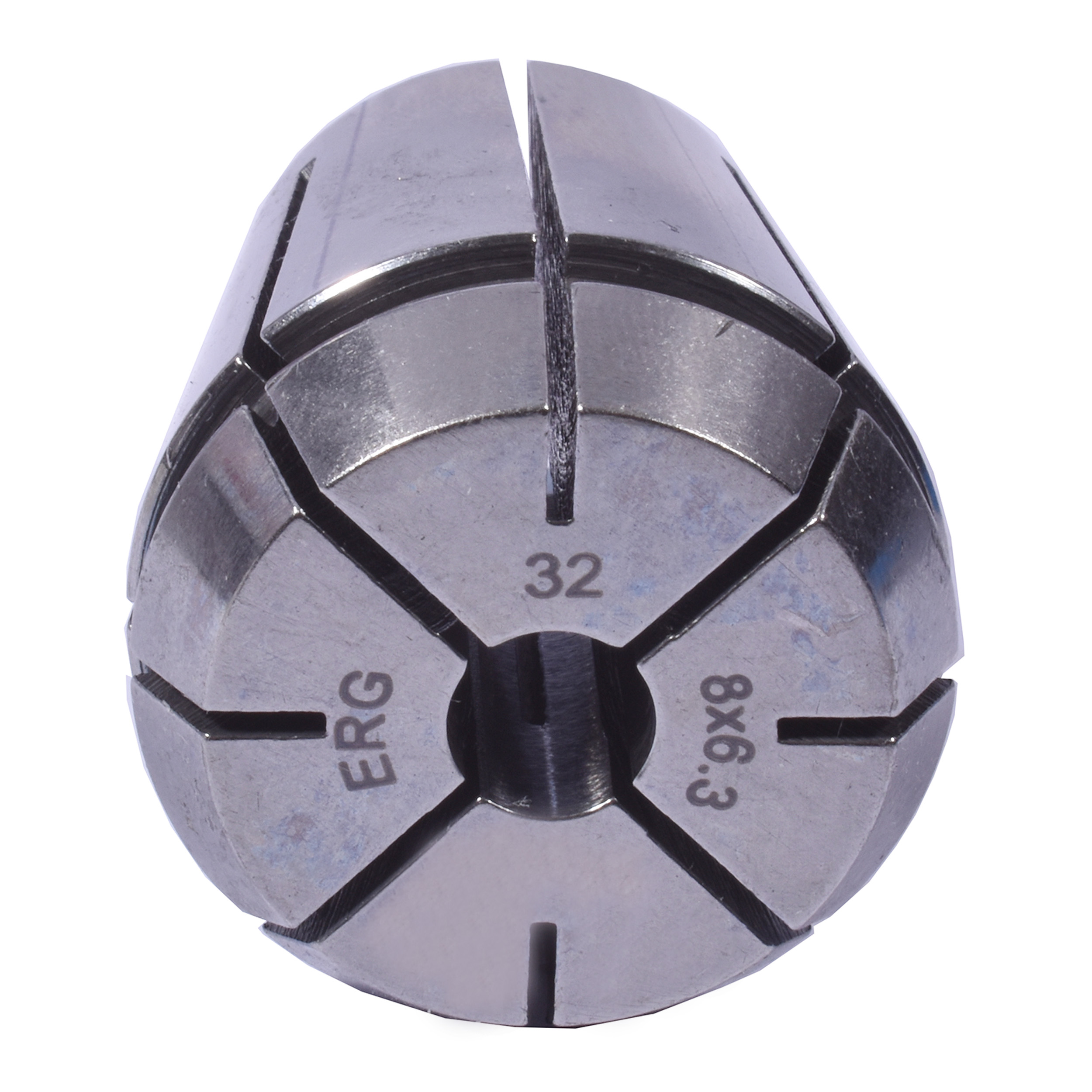

| RUN OUT (TIR) | 0.0005″ | HEX SIZE | Â 6.30mm |
| BRAND | iCarbide USA | TAPER | 16° |
Â
Use: For all DIN6499 standard tool holders in ER32Â tap collets
Finishing & Rough Cutting:Â High precision run out saving your cost-effective
Precision: High Precision Runout: TIR 10μm or 0.0005″
Hardened:Outside: HRC48Â Inside: HRC32Â Â Â

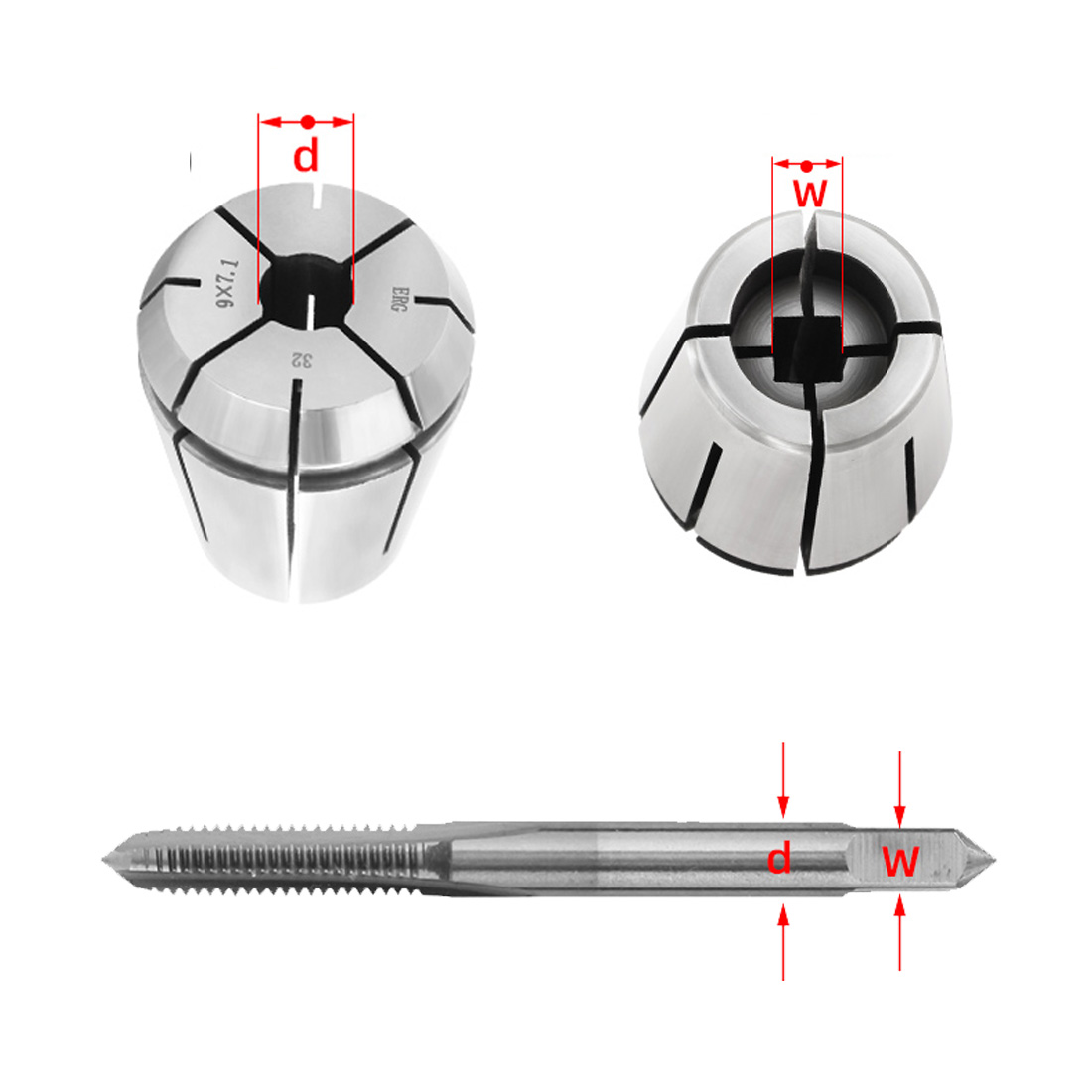

 Drawings
Related ER Collets
| Order NO | D | L | Clamping Ф mm | Run Out | Slot | Price |
|---|---|---|---|---|---|---|
| ICER1101 | 11.5 | 18 | 1 | ≤ 10μm | 16 | 9.99 |
| ICER1102 | 11.5 | 18 | 1.5 | ≤ 10μm | 16 | 9.99 |
| ICER1103 | 11.5 | 18 | 2 | ≤ 10μm | 16 | 7.99 |
| ICER1104 | 11.5 | 18 | 2.5 | ≤ 5μm | 16 | 7.99 |
| ICER1105 | 11.5 | 18 | 3 | ≤ 5μm | 16 | 7.99 |
| ICER1106 | 11.5 | 18 | 3.5 | ≤ 5μm | 16 | 7.99 |
| ICER1107 | 11.5 | 18 | 4 | ≤ 5μm | 16 | 7.99 |
| ICER1108 | 11.5 | 18 | 4.5 | ≤ 5μm | 16 | 7.99 |
| ICER1109 | 11.5 | 18 | 5 | ≤ 5μm | 16 | 7.99 |
| ICER1110 | 11.5 | 18 | 5.5 | ≤ 5μm | 16 | 7.99 |
| ICER1111 | 11.5 | 18 | 6 | ≤ 5μm | 16 | 7.99 |
| ICER1112 | 11.5 | 18 | 6.5 | ≤ 5μm | 16 | 7.99 |
| ICER1113 | 11.5 | 18 | 7 | ≤ 5μm | 16 | 7.99 |
| ICER1601 | 17 | 27.5 | 1 | ≤ 10μm | 16 | 9.99 |
| ICER1602 | 17 | 27.5 | 2 | ≤ 5μm | 16 | 9.99 |
| ICER1603 | 17 | 27.5 | 3 | ≤ 5μm | 16 | 6.99 |
| ICER1604 | 17 | 27.5 | 4 | ≤ 5μm | 16 | 6.99 |
| ICER1605 | 17 | 27.5 | 5 | ≤ 5μm | 16 | 6.99 |
| ICER1606 | 17 | 27.5 | 6 | ≤ 5μm | 16 | 6.99 |
| ICER1607 | 17 | 27.5 | 7 | ≤ 5μm | 16 | 6.99 |
| ICER1608 | 17 | 27.5 | 8 | ≤ 5μm | 16 | 6.99 |
| ICER1609 | 17 | 27.5 | 9 | ≤ 5μm | 16 | 6.99 |
| ICER1610 | 17 | 27.5 | 10 | ≤ 5μm | 16 | 6.99 |
| ICER2001 | 21 | 31.5 | 1 | ≤ 10μm | 16 | 9.99 |
| ICER2002 | 21 | 31.5 | 2 | ≤ 10μm | 16 | 9.99 |
| ICER2003 | 21 | 31.5 | 3 | ≤ 5μm | 16 | 6.99 |
| ICER2004 | 21 | 31.5 | 4 | ≤ 5μm | 16 | 6.99 |
| ICER2005 | 21 | 31.5 | 5 | ≤ 5μm | 16 | 6.99 |
| ICER2006 | 21 | 31.5 | 6 | ≤ 5μm | 16 | 6.99 |
| ICER2007 | 21 | 31.5 | 7 | ≤ 5μm | 16 | 6.99 |
| ICER2008 | 21 | 31.5 | 8 | ≤ 5μm | 16 | 6.99 |
| ICER2009 | 21 | 31.5 | 9 | ≤ 5μm | 16 | 6.99 |
| ICER2010 | 21 | 31.5 | 10 | ≤ 5μm | 16 | 6.99 |
| ICER2011 | 21 | 31.5 | 11 | ≤ 5μm | 16 | 6.99 |
| ICER2012 | 21 | 31.5 | 12 | ≤ 5μm | 16 | 6.99 |
| ICER2013 | 21 | 31.5 | 13 | ≤ 5μm | 16 | 6.99 |
| ICER2501 | 26 | 34 | 1 | ≤ 5μm | 16 | 12.99 |
| ICER2502 | 26 | 34 | 2 | ≤ 5μm | 16 | 12.99 |
| ICER2503 | 26 | 34 | 3 | ≤ 5μm | 16 | 8.99 |
| ICER2504 | 26 | 34 | 4 | ≤ 5μm | 16 | 8.99 |
| ICER2505 | 26 | 34 | 5 | ≤ 5μm | 16 | 8.99 |
| ICER2506 | 26 | 34 | 6 | ≤ 5μm | 16 | 8.99 |
| ICER2507 | 26 | 34 | 7 | ≤ 5μm | 16 | 8.99 |
| ICER2508 | 26 | 34 | 8 | ≤ 5μm | 16 | 8.99 |
| ICER2509 | 26 | 34 | 9 | ≤ 5μm | 16 | 8.99 |
| ICER2510 | 26 | 34 | 10 | ≤ 5μm | 16 | 8.99 |
| ICER2511 | 26 | 34 | 11 | ≤ 5μm | 16 | 8.99 |
| ICER2512 | 26 | 34 | 12 | ≤ 5μm | 16 | 8.99 |
| ICER2513 | 26 | 34 | 13 | ≤ 5μm | 16 | 8.99 |
| ICER2514 | 26 | 34 | 14 | ≤ 5μm | 16 | 8.99 |
| ICER2515 | 26 | 34 | 15 | ≤ 5μm | 16 | 8.99 |
| ICER2516 | 26 | 34 | 16 | ≤ 5μm | 16 | 8.99 |
| ICER3201 | 33 | 40 | 2 | ≤ 5μm | 16 | 13.99 |
| ICER3202 | 33 | 40 | 3 | ≤ 5μm | 16 | 13.99 |
| ICER3203 | 33 | 40 | 4 | ≤ 5μm | 16 | 9.99 |
| ICER3204 | 33 | 40 | 5 | ≤ 5μm | 16 | 9.99 |
| ICER3205 | 33 | 40 | 6 | ≤ 5μm | 16 | 9.99 |
| ICER3206 | 33 | 40 | 7 | ≤ 5μm | 16 | 9.99 |
| ICER3207 | 33 | 40 | 8 | ≤ 5μm | 16 | 9.99 |
| ICER3208 | 33 | 40 | 9 | ≤ 5μm | 16 | 9.99 |
| ICER3209 | 33 | 40 | 10 | ≤ 5μm | 16 | 9.99 |
| ICER3210 | 33 | 40 | 11 | ≤ 5μm | 16 | 9.99 |
| ICER3211 | 33 | 40 | 12 | ≤ 5μm | 16 | 9.99 |
| ICER3212 | 33 | 40 | 13 | ≤ 5μm | 16 | 9.99 |
| ICER3213 | 33 | 40 | 14 | ≤ 5μm | 16 | 9.99 |
| ICER3214 | 33 | 40 | 15 | ≤ 5μm | 16 | 9.99 |
| ICER3215 | 33 | 40 | 16 | ≤ 5μm | 16 | 9.99 |
| ICER3216 | 33 | 40 | 17 | ≤ 5μm | 16 | 9.99 |
| ICER3217 | 33 | 40 | 18 | ≤ 5μm | 16 | 9.99 |
| ICER3218 | 33 | 40 | 19 | ≤ 5μm | 16 | 9.99 |
| ICER3219 | 33 | 40 | 20 | ≤ 5μm | 16 | 9.99 |
| ICER4001 | 41 | 46 | 3 | ≤ 5μm | 16 | 14.99 |
| ICER4002 | 41 | 46 | 4 | ≤ 5μm | 16 | 14.99 |
| ICER4003 | 41 | 46 | 5 | ≤ 5μm | 16 | 14.99 |
| ICER4004 | 41 | 46 | 6 | ≤ 5μm | 16 | 14.99 |
| ICER4005 | 41 | 46 | 7 | ≤ 5μm | 16 | 14.99 |
| ICER4006 | 41 | 46 | 8 | ≤ 5μm | 16 | 14.99 |
| ICER4007 | 41 | 46 | 9 | ≤ 5μm | 16 | 14.99 |
| ICER4008 | 41 | 46 | 10 | ≤ 5μm | 16 | 14.99 |
| ICER4009 | 41 | 46 | 11 | ≤ 5μm | 16 | 14.99 |
| ICER4010 | 41 | 46 | 12 | ≤ 5μm | 16 | 14.99 |
| ICER4011 | 41 | 46 | 13 | ≤ 5μm | 16 | 14.99 |
| ICER4012 | 41 | 46 | 14 | ≤ 5μm | 16 | 14.99 |
| ICER4013 | 41 | 46 | 15 | ≤ 5μm | 16 | 14.99 |
| ICER4014 | 41 | 46 | 16 | ≤ 5μm | 16 | 14.99 |
| ICER4015 | 41 | 46 | 17 | ≤ 5μm | 16 | 14.99 |
| ICER4016 | 41 | 46 | 18 | ≤ 5μm | 16 | 14.99 |
| ICER4017 | 41 | 46 | 19 | ≤ 5μm | 16 | 14.99 |
| ICER4018 | 41 | 46 | 20 | ≤ 5μm | 16 | 14.99 |
| ICER4019 | 41 | 46 | 21 | ≤ 5μm | 16 | 14.99 |
| ICER4020 | 41 | 46 | 22 | ≤ 5μm | 16 | 14.99 |
| ICER4021 | 41 | 46 | 23 | ≤ 5μm | 16 | 14.99 |
| ICER4022 | 41 | 46 | 24 | ≤ 5μm | 16 | 14.99 |
| ICER4023 | 41 | 46 | 25 | ≤ 5μm | 16 | 14.99 |
| ICER4024 | 41 | 46 | 26 | ≤ 5μm | 16 | 14.99 |
Quality Â
Material Application
Japanese JIS standard SUJ2 high carbon chromium bearing steel, corresponding to the national
standard GCr15, SUJ2 high carbon chromium bearing steel, can be fully hardened, the hardness
can reach HRC58-61, has the wear resistance of the bearing, also strengthens the rigidity,
workability Good, and can be directly processed and shaped, using mold times 2-3 times higher
than SKD-61 (HRC52) full hardware. During quenching and tempering, the size does not change much, and fatigue resistance is quite good.
