Home/SPECIAL OFFERS/SPECIAL OFFERS/3PCS CAT40 ER20 2.5″ Collet Chuck Tool Holder G2.5 25000rpm &11pcs ER20 Collets
  • CAT40 ER20 Collet Chuck tool holder
  • ER20 collet

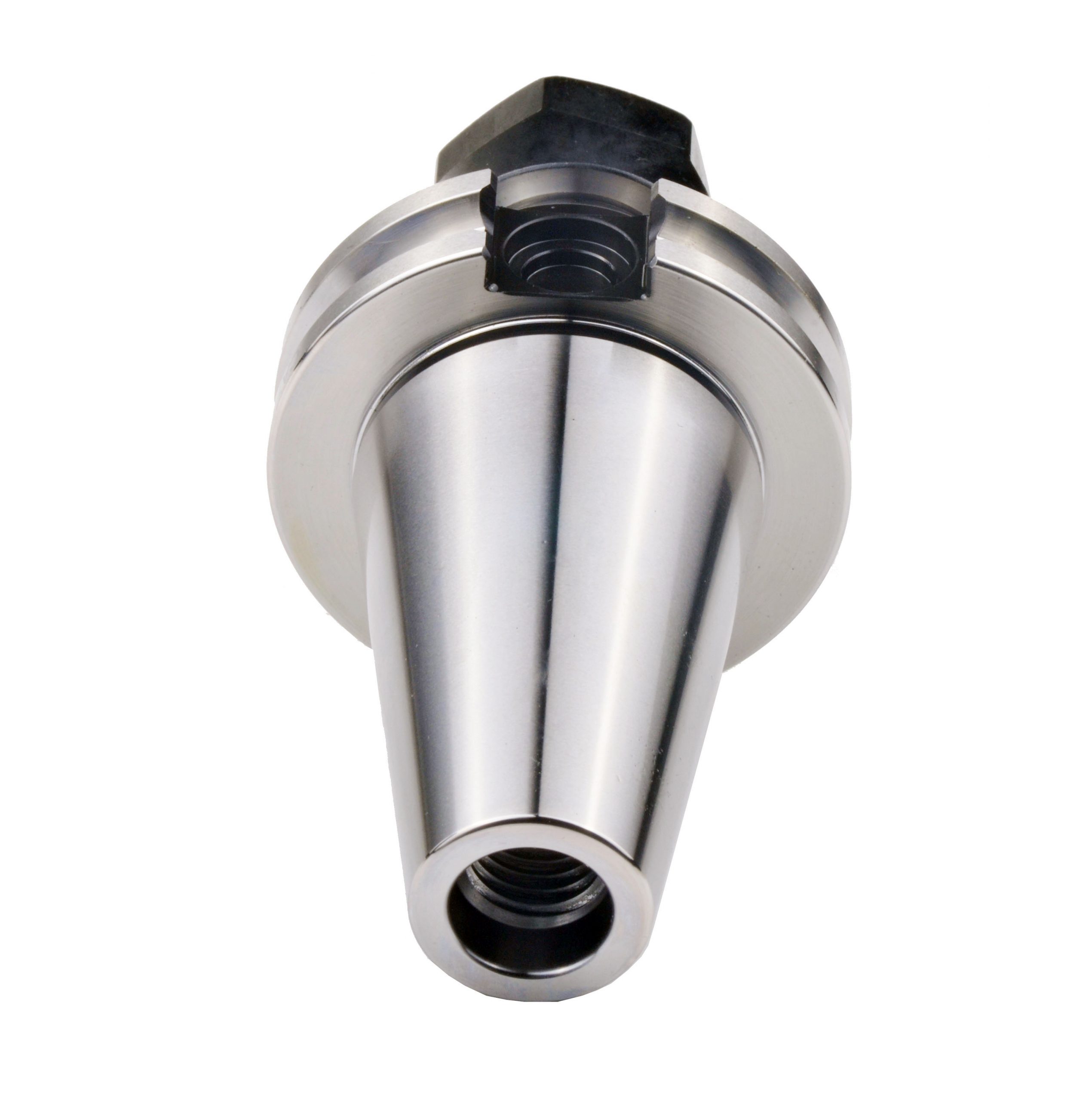

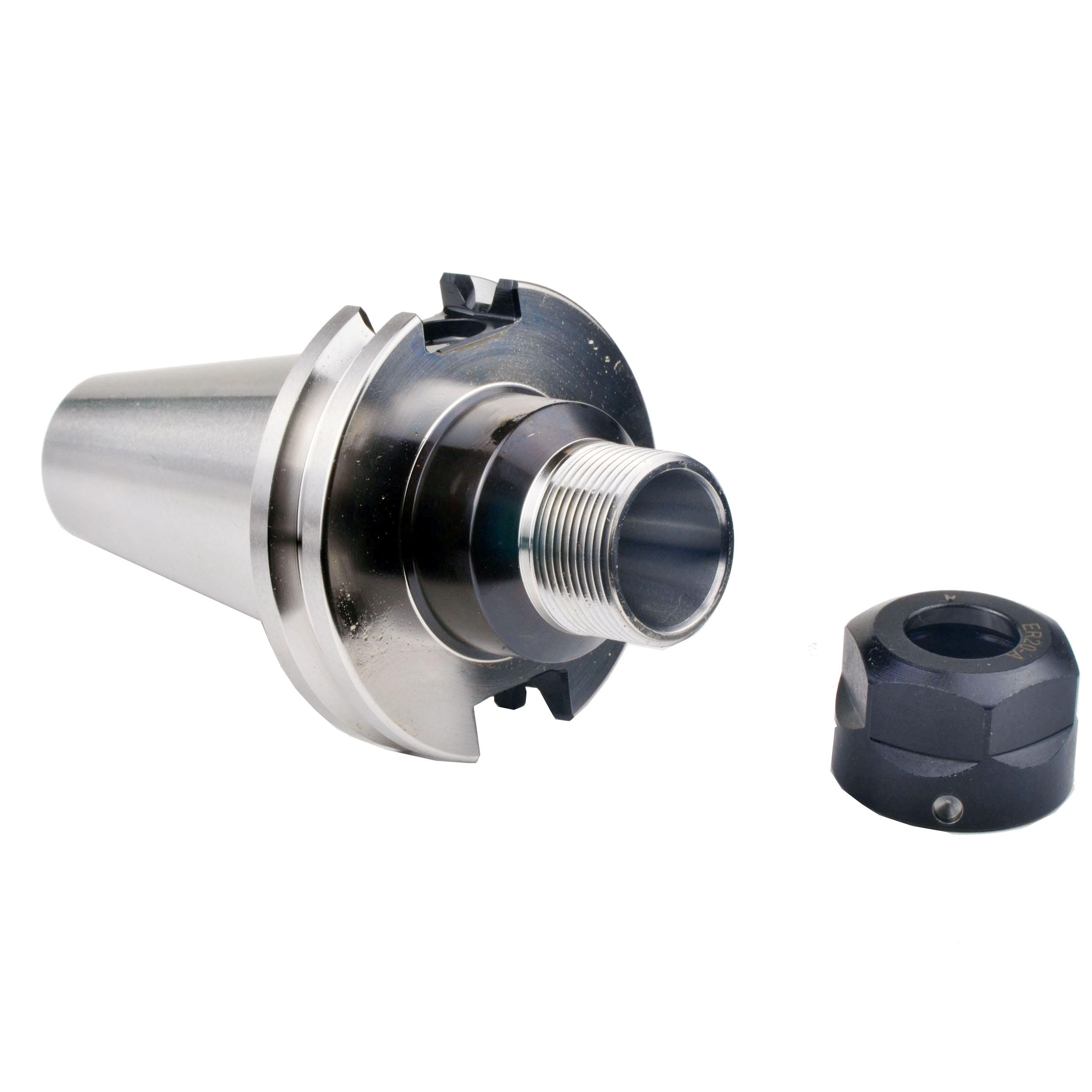

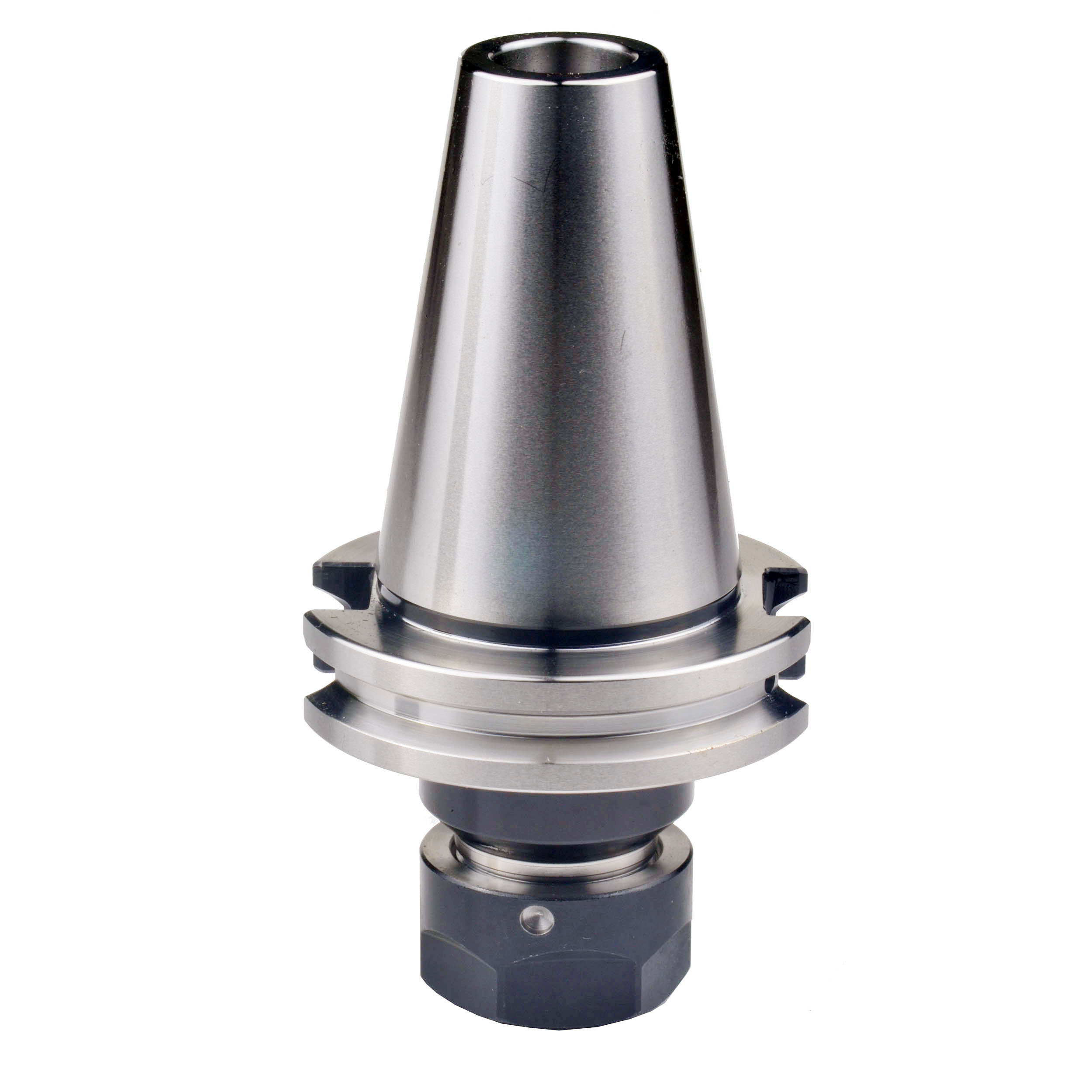

CAT40 ER20 Collet Chuck tool holder

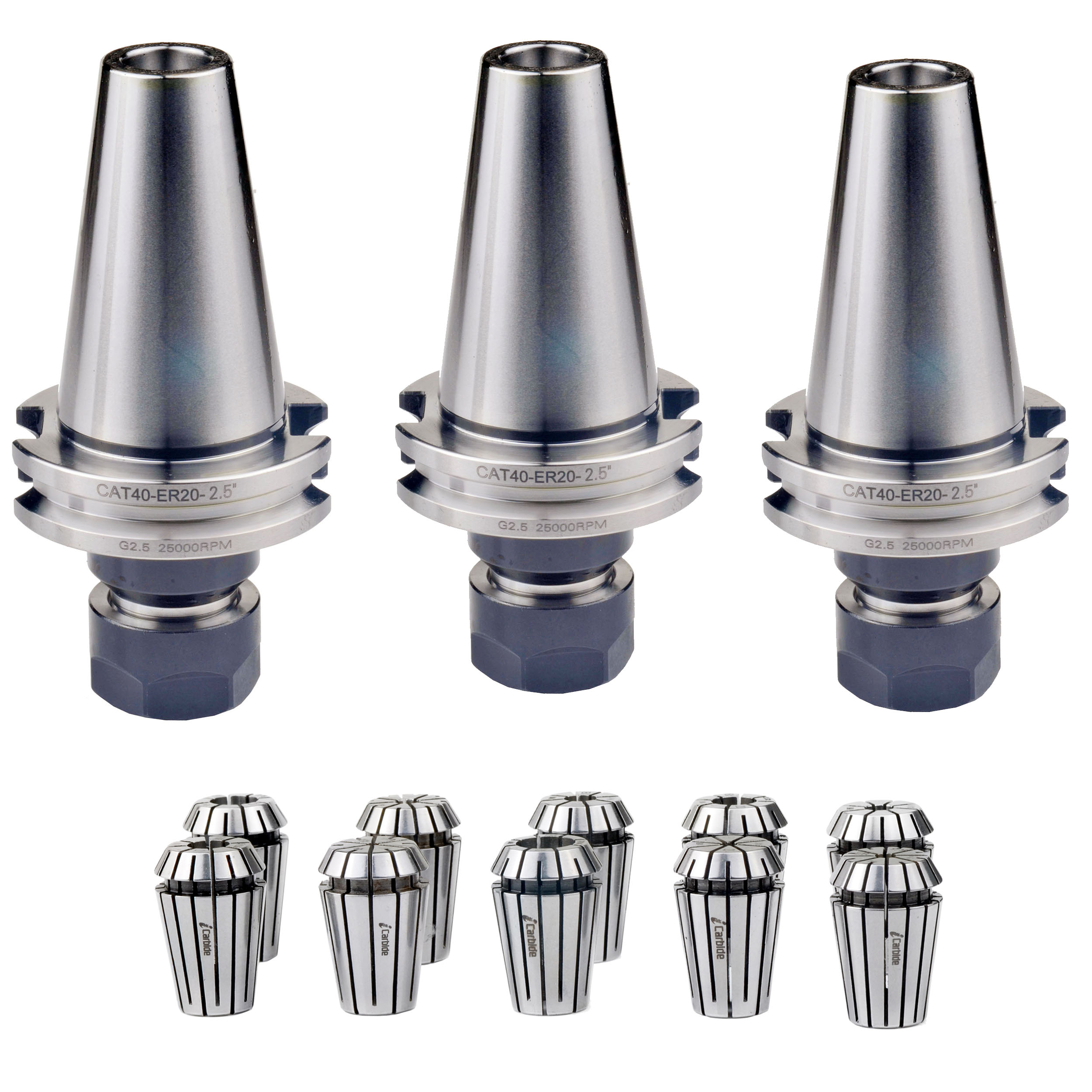

3PCS CAT40 ER20 2.5″ Collet Chuck Tool Holder G2.5 25000rpm &11pcs ER20 Collets

In Stock

SKU: BCAT40ER20250ER2011

$239.99

Wishlist
Compare

3PCS  CAT40 ER20 2.5 ”  +  ER20 collet set (11pcs 3/32  3/16 1/8 1/4 3/8 5/16 5/32  11/32 7/32 7/16 1/2)

Finishing & Rough Cutting:– High-Speed Cutting (G2.5 25000rpm) Balance Available

Precision: Runout: TIR  3μm or 0.00015 ”    For all ER20 collet

Hardened: HRC58  / Gage length: 2.5 ” / Rear Thread:5/8-11

SHIP 1-3 DAYS PRIORITY USPS

Qty
Compare
Categories:

CAT40 ER COLLET CHUCK  TOOL HOLDER

MODEL CAT40-ER20-2.5″  RUN OUT (TIR) 0.00015″ NECK  DIAMETER D 1.2″
HOLDER TYPE ER COLLET CHUCK CLAMPING RANGE  3/32-1/2″ CLAMPING SIZE ER20
SHANK TYPE CAT40 DRAWBAR THREAD 5/8-11″ COLLET NUT ER20
BALANCE G2.5 25000rpm Gage Length 2.5″ COOLANT YES



High-Speed Cutting (G2.5 25000rpm) Balance

High Precision Runout: TIR  5μm or 0.00015

Hardened:  surface HRC58 inside is HRC45

Protection: oxide black





Drawings & Parameters Table



CAT40 TAPER 8° TAPER D1 L1 FLANGE D
DRAWBAR THREAD CAT40 5/8-11 UNC 1.75″ 2.69″ 2.5″

Weight 8.5 lbs
Dimensions 15 × 45 × 65 in
Measurement system

Inch (in)
Product Category

Collet Chuck Tool Holder
Sales Unit

set
Shank Type

CAT40
Clamping Type

Collet Chuck
