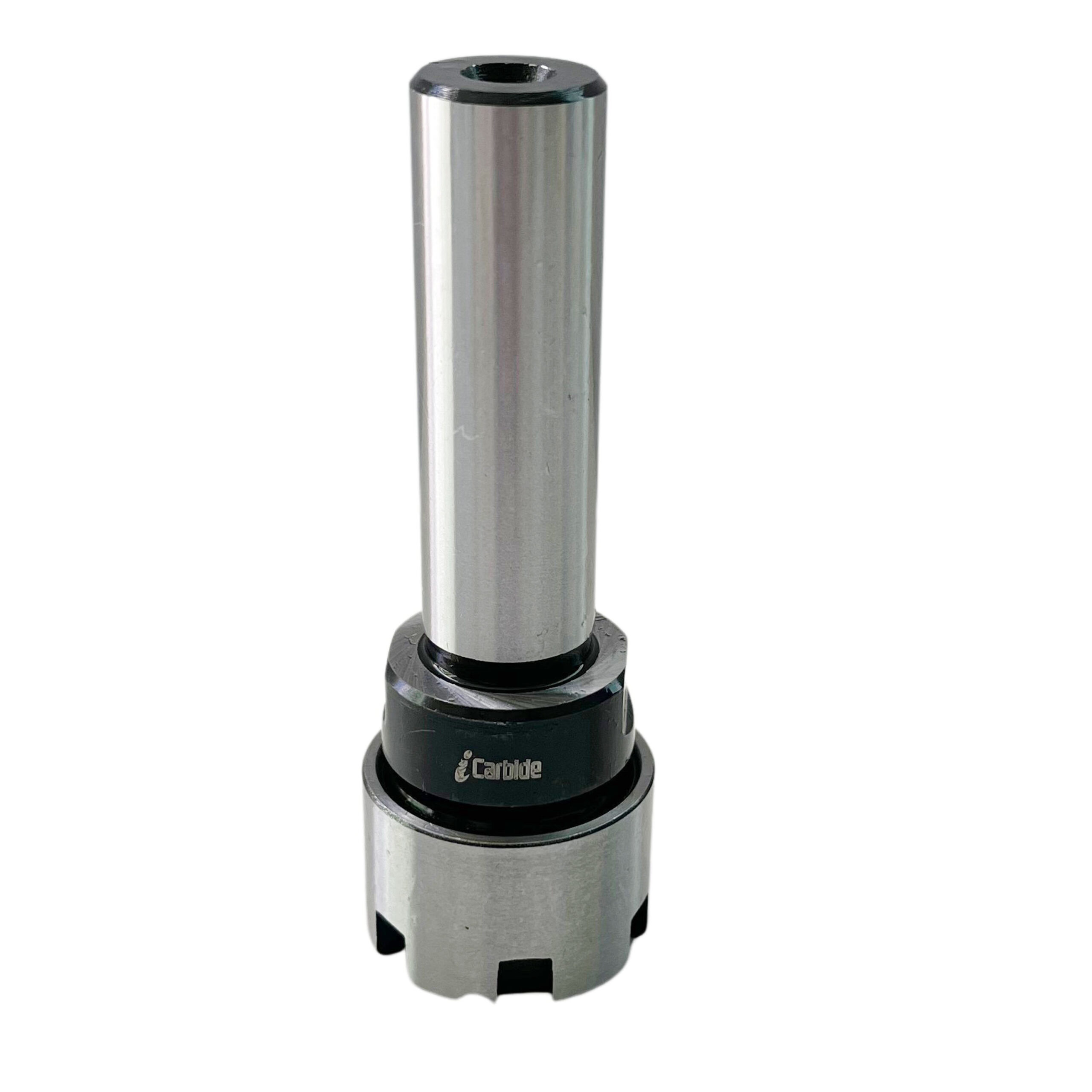

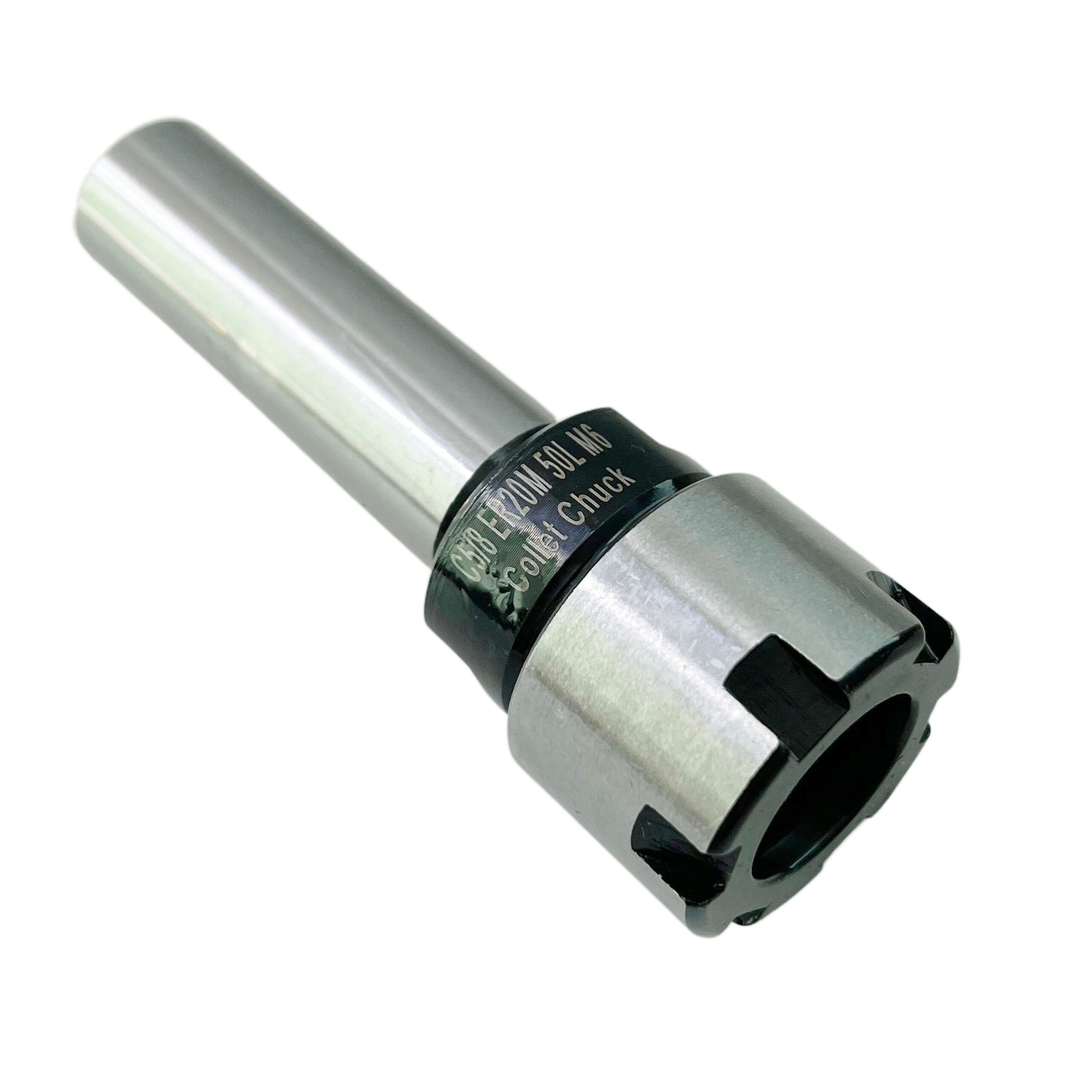

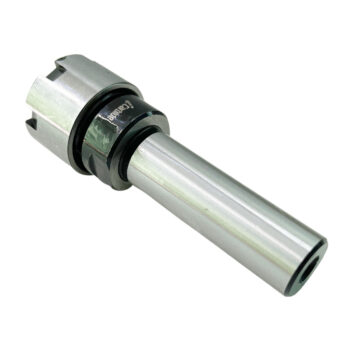

5/8″ X 2″ ER20 STRAIGHT SHANK TOOL HOLDER COLLET CHUCK
| MODEL | ER20 COLLET CHUCK | RUN OUT (TIR) | 0.0002″ | FLANGE DIAMETER | 1.20″ |
| HOLDER TYPE | ER COLLET CHUCK | CLAMPING RANGE | 3/16-1/2″ | CLAMPING SIZE | ER20 |
| SHANK TYPE | STRAIGHT TOOL HOLDER | DRAWBAR THREAD | M6 | COLLET NUT | ER20 Mini |
| BALANCE | MAX 12,000RPM | SHANK DIAMETER | 5/8″ | COLOR | oxide black |
| OVERALL LENGTH | 3″ | SHANK LENGTH | 2″ | SHANK WITH FLAT | NO |
5/8″ X 4″ ER20 STRAIGHT SHANK TOOL HOLDER COLLET CHUCK
For all er20 collets
Made from alloy steel and hardness is HRC55
Coolant thru all the shank
Nut included
