| ORDER NO | ICB1131 | MATERIAL | MIRCO-TUNGSTEN |
| CUTTING TYPE | BALL NOSEÂ END MILL | CUTTING DIAMETER | 3/8 |
| NUMBER OF FLUTE | 6 | FLUTE LENGTH | 3/4 |
| FINISHING COATE | Altin | SHANK DIAMETER | 3/8 |
| HELIX ANGLE | 35 | OVER LENGTH | 3 |
| SHAPE | FLAT SIDE MILL | SHANK TYPE | ROUND |
| BRAND | MADE IN TAIWAN | CUTTING TYPE | SINGLE END |

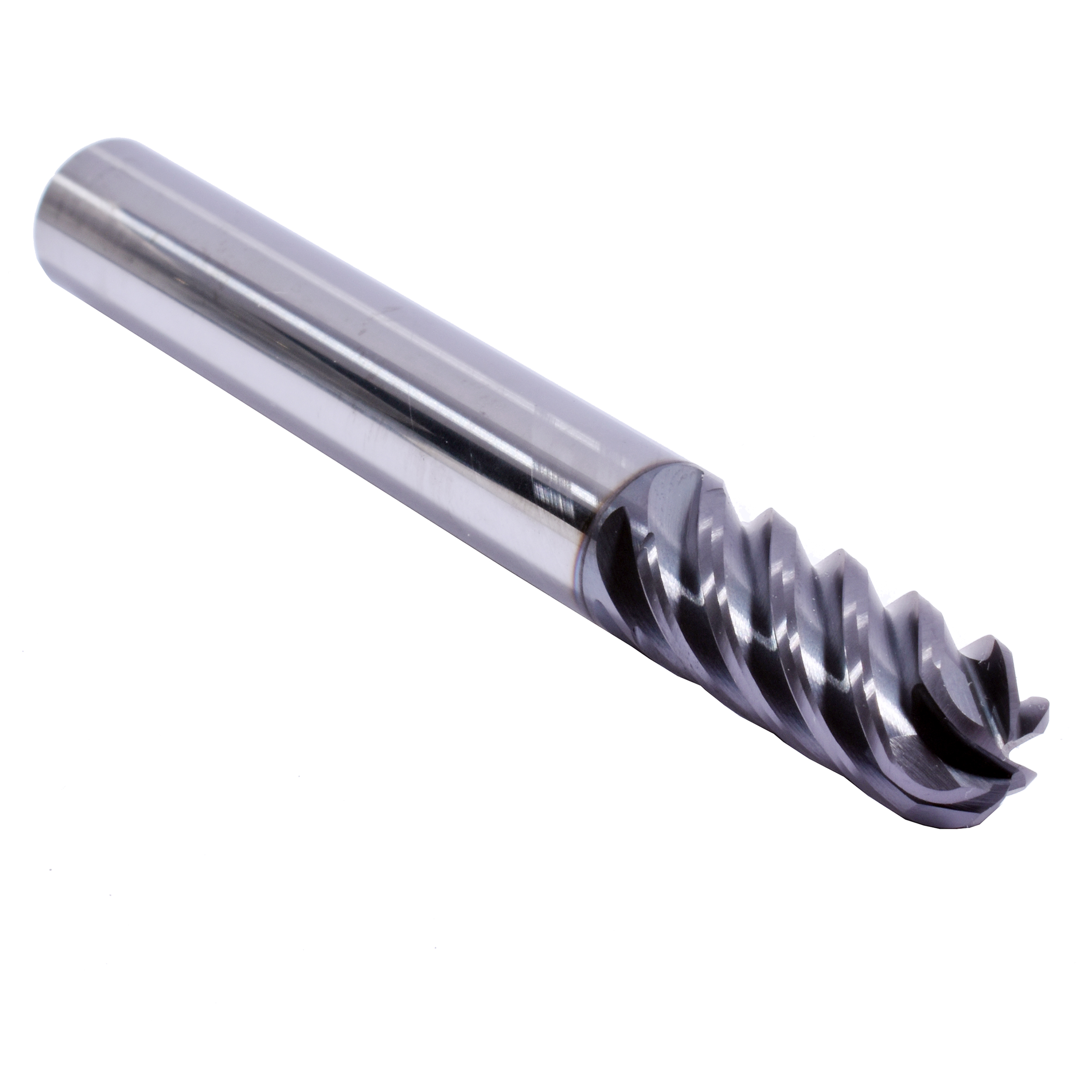

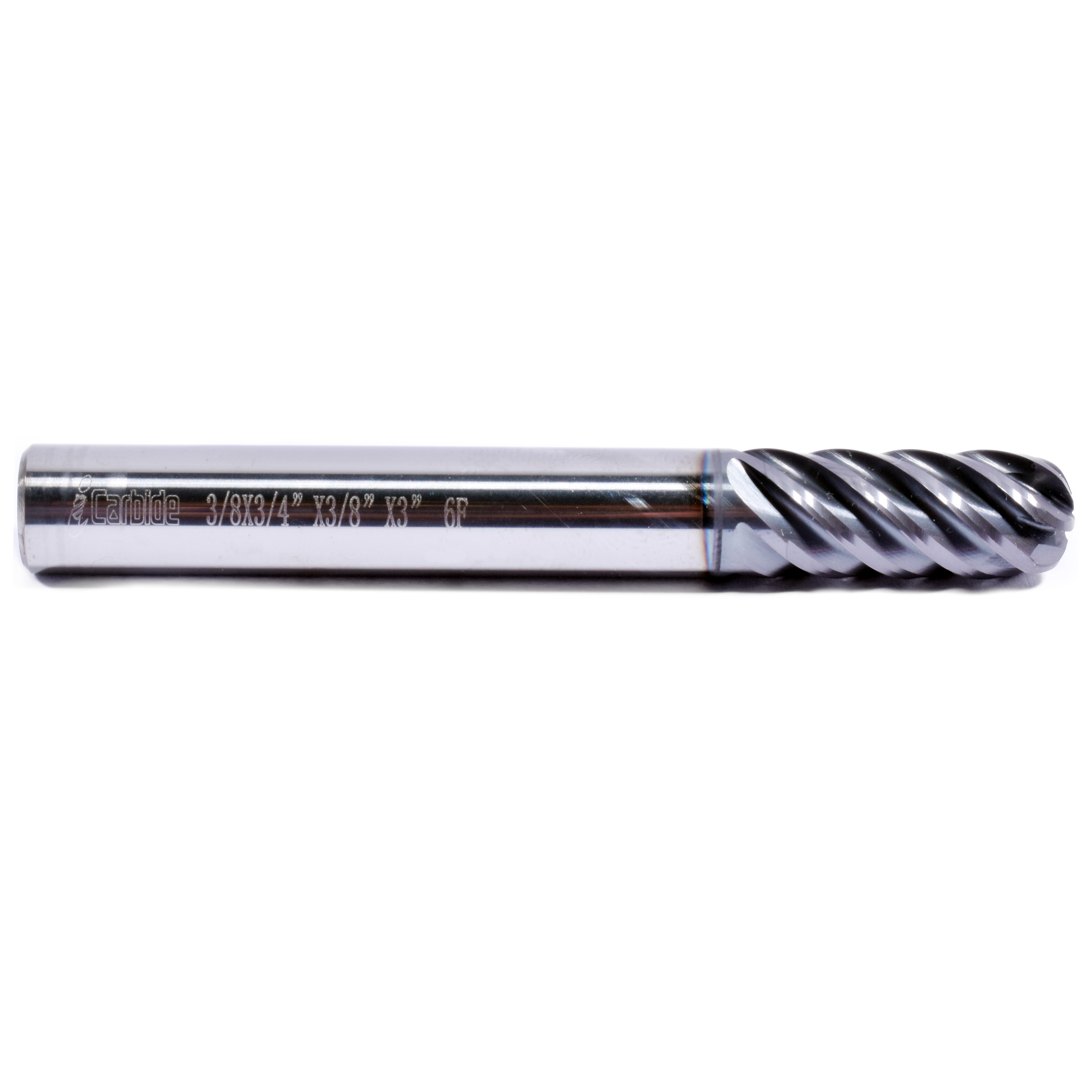

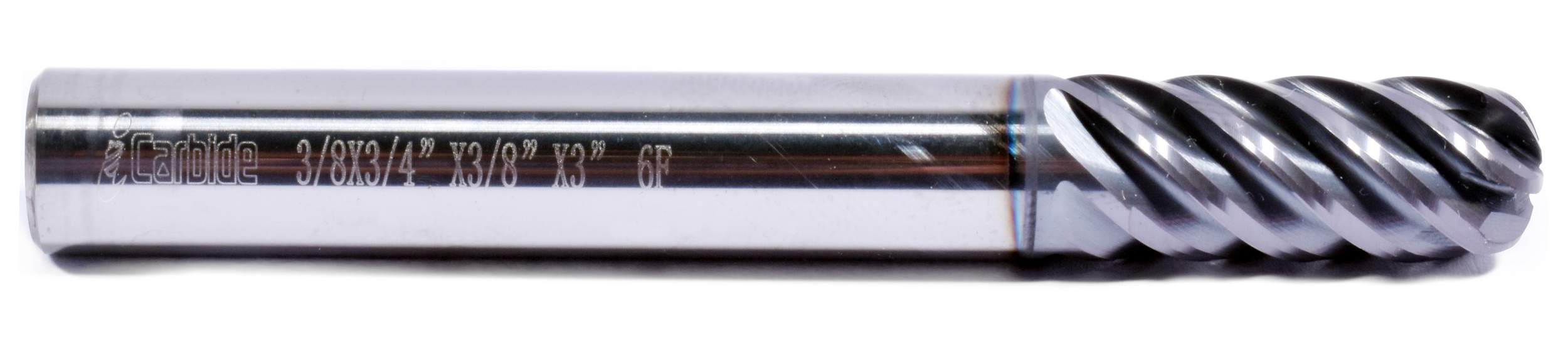

3/8X3″Â 6FLUTE BALL NOSE SOLID CARBIDE END MILL FOR TITANIUM
 Best For TITANIUM
And to be used on different materials ( Alloy steel, die-casting steel, iron, carbon steel, aluminum steel, brass, Inconel, Bright steel, tool steel.)
The sharpness of the knife can be maintained after coating
High toughness and high rigidity
Self-lubricating function: a low affinity for cold welding, cutting edge
The surface is extremely smooth, and the chip flutes can be removed without chips during milling and drilling
Excellent smoothness on the guide vane and excellent alignment of the machined holes
Very suitable for processing aluminum, copper, titanium alloys and ALSi alloys with a silicon content of less than 10% (for products with higher silicon content, we recommend using diamond coating)
Cutting Condition
| Diameter | VC(m/min) | AP（mm) | AE(mm) | FEED (mm/min) | RPM/MIN |
|---|---|---|---|---|---|
| 1/8 | 150 | 0.15 | 0.15 | 2000 | 24000 |
| 3/16 | 226 | 0.17 | 0.17 | 2500 | 18000 |
| 1/4 | 350 | 0.2 | 0.2 | 2800 | 15000 |
| 3/8 | 420 | 0.25 | 0.25 | 3000 | 13000 |
| 1/2 | 450 | 0.3 | 0.3 | 3500 | 8000 |
Tungsten Material Tungsten (WC+Co) hard alloy (YG)
It has high toughness of flexural strength and good thermal conductivity, but has a poor heat resistance and wear resistance. It is mainly used for processing cast iron and non-ferrous metals. Fine-grained YG cemented carbide (such as YG3X, YG6X), when the cobalt content is the same, its hardness and wear resistance are higher than YG3 and YG6, and its strength and toughness are slightly worse. It is suitable for processing hard cast iron and austenitic stainless steel. , Heat-resistant alloy, hard bronze, etc.
Related Products
| ORDER NO | DIAMETER | FLUTE LENGTH | SHANK DIAMETER | OVERALL LENGTH | TOOTH |
|---|---|---|---|---|---|
| ICB1126 | 1/16 | 3/16 | 1/8 | 1-3/4 | 2 |
| ICB1127 | 3/32 | 3/8 | 1/8 | 1-3/4 | 4 |
| ICB1128 | 1/8 | 3/8 | 1/8 | 1-3/4 | 4 |
| ICB1129 | 3/16 | 1/2 | 3/16 | 1-3/4 | 4 |
| ICB1130 | 1/4 | 1/2 | 1/4 | 2-1/2 | 6 |
| ICB1131 | 3/8 | 3/4 | 3/8 | 3 | 6 |
| ICB1132 | 1/2 | 3/4 | 1/2 | 3 | 6 |
Ionbond provides thin-film coating services and operates, includes PVD, PACVD, CVD, CVA, and CVI technologies,
including a broad range of DLC coatings. Please contact us for further information.
We look forward to serving you.
