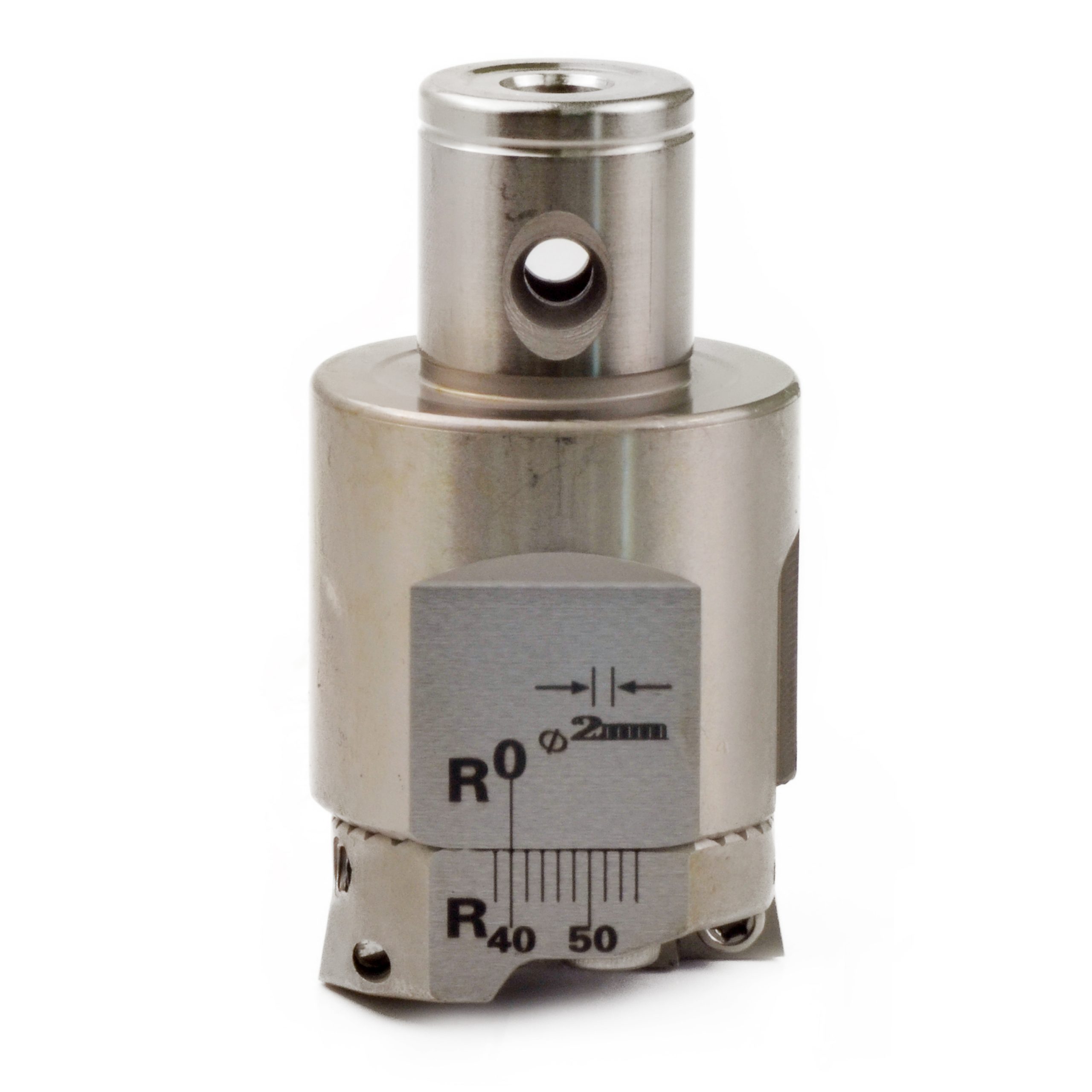

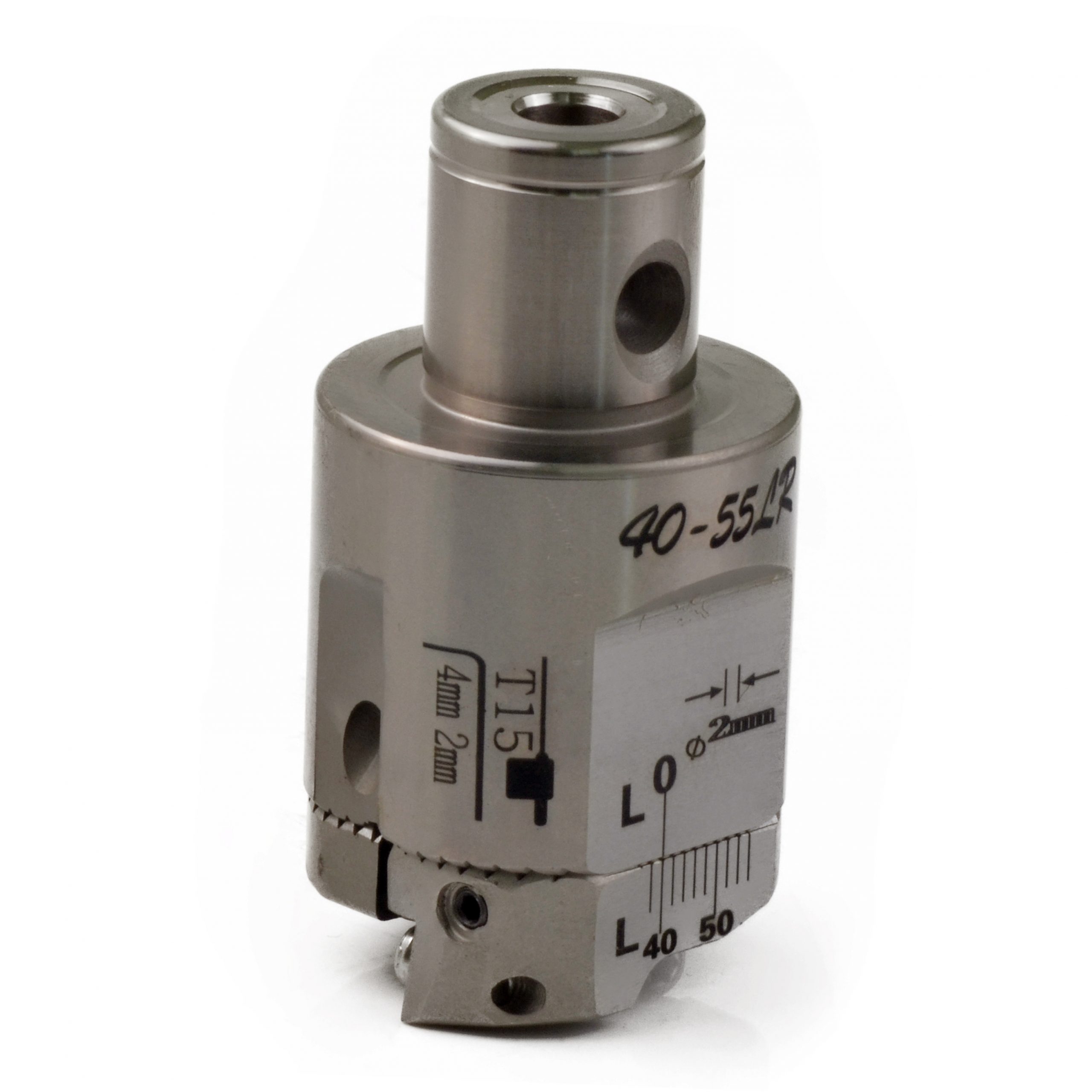

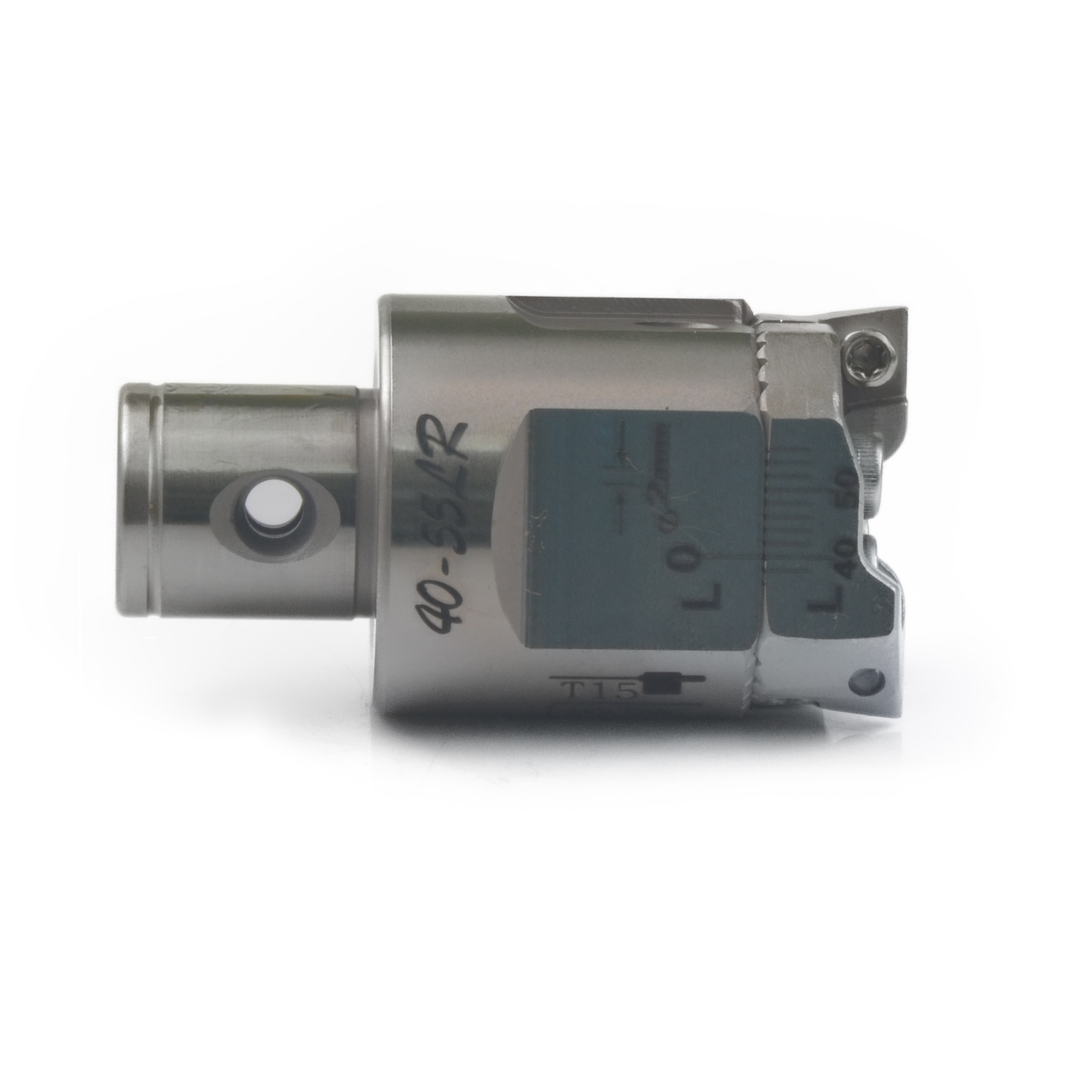

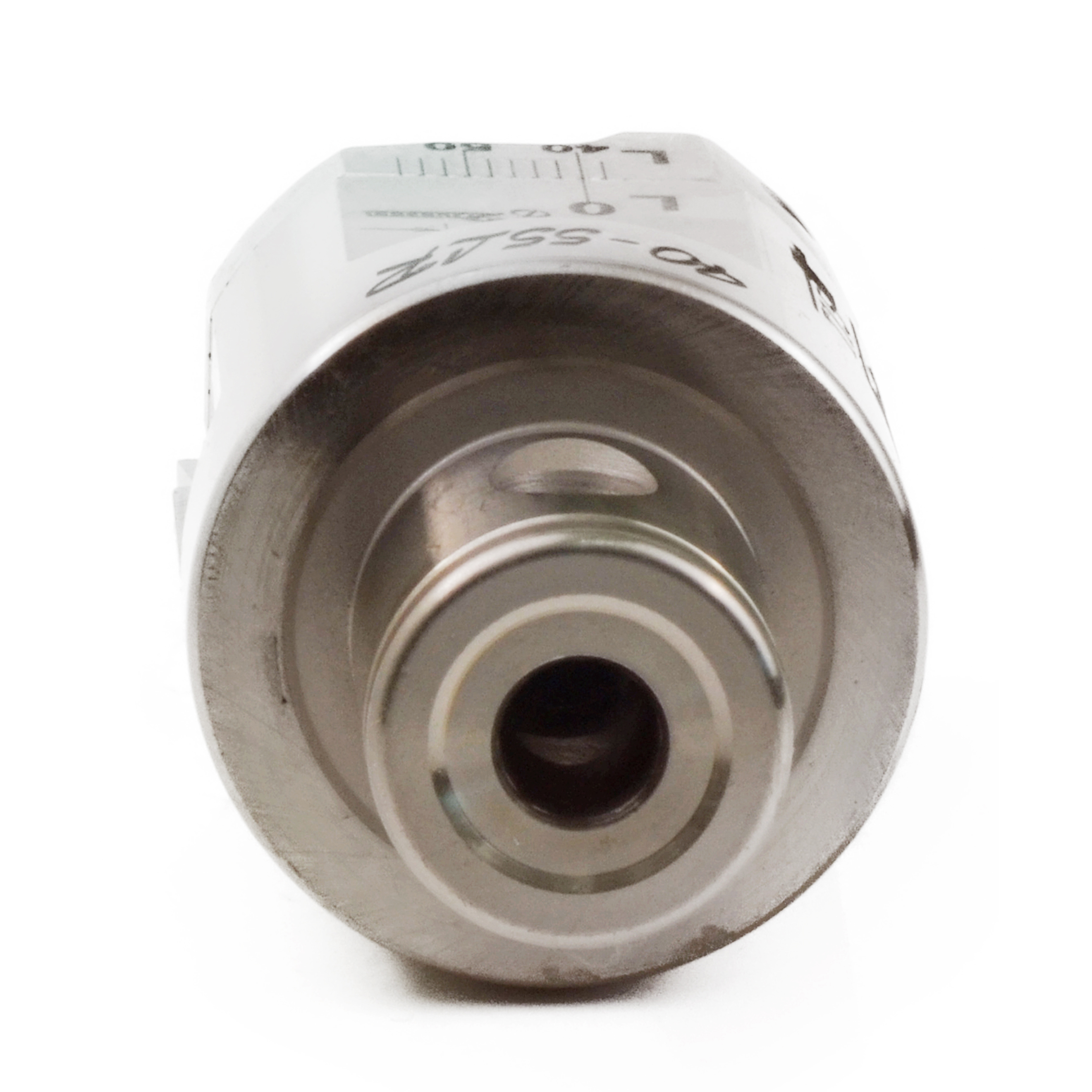

2″ TWIN ROUGH BORING HEADÂ BORING TOOL
| MODEL | ROUGH BORING HEAD | Â RUN OUT (TIR) | 0.0002″ |
| HOLDER TYPE | Â BORINGÂ TOOL HOLDER | CARBIDE INSERT | CCMT0904** |
| SHANK TYPE ACCEPT | LBK3 | Â DRAWBAR THREAD | NO |
| CUTTING FLUTE | 2 | Gage Length | 2.5″ |
| BORING RANGE | 1.57″-2″ / 40-55 mm | BORINGÂ DIAMETER MAX | 2.0″ |
Adjustable rough boring head
Boring precision 0.0002 ” increased
| Â Â Â Â Â Â MODEL | Â Â Â BORING RANGÂ Â
(MM) |
BORING DEPTH |
   INSERTS
|
  ACCEPT    ARBOR | BORING FEED
    mm/rev |
  CUTTING SPEED
      m/min |
  WRENC H |
| RBH19-25 | 19-25 | 32 | CCMT0602** | LBK1 | 0.05-0.030 | 100-200 | T8 |
| RBH26-35 | 26-35 | 40 | CCMT0602** | LBK2 | 0.05-0.030 | 100-200 | T8 |
| RBH40-55 | 40-55 | 52 | CCMT0903** | LBK3 | 0.05-0.035 | 100-200 | T15 |
| RBH52-75 | 52-72 | 68 | CCMT0903** | LBK5 | 0.05-0.035 | 100-200 | T15 |
| RBH68-110 | 68-110 | 83 | CCMT1204** | LBK6 | 0.05-0.035 | 100-300 | T15 |
| RBH110-164 | 110-164 | 135 | CCMT1204** | BST | 0.07-0.030 | 100-300 | T20 |
| RBH160-200 | 160-200 | 140 | CCMT1204** | BST | 0.07-0.035 | 70-300 | T20 |
| RBH200-250 | 200-250 | 150 | CCMT1204** | BST | 0.07-0.035 | 70-300 | T20 |
