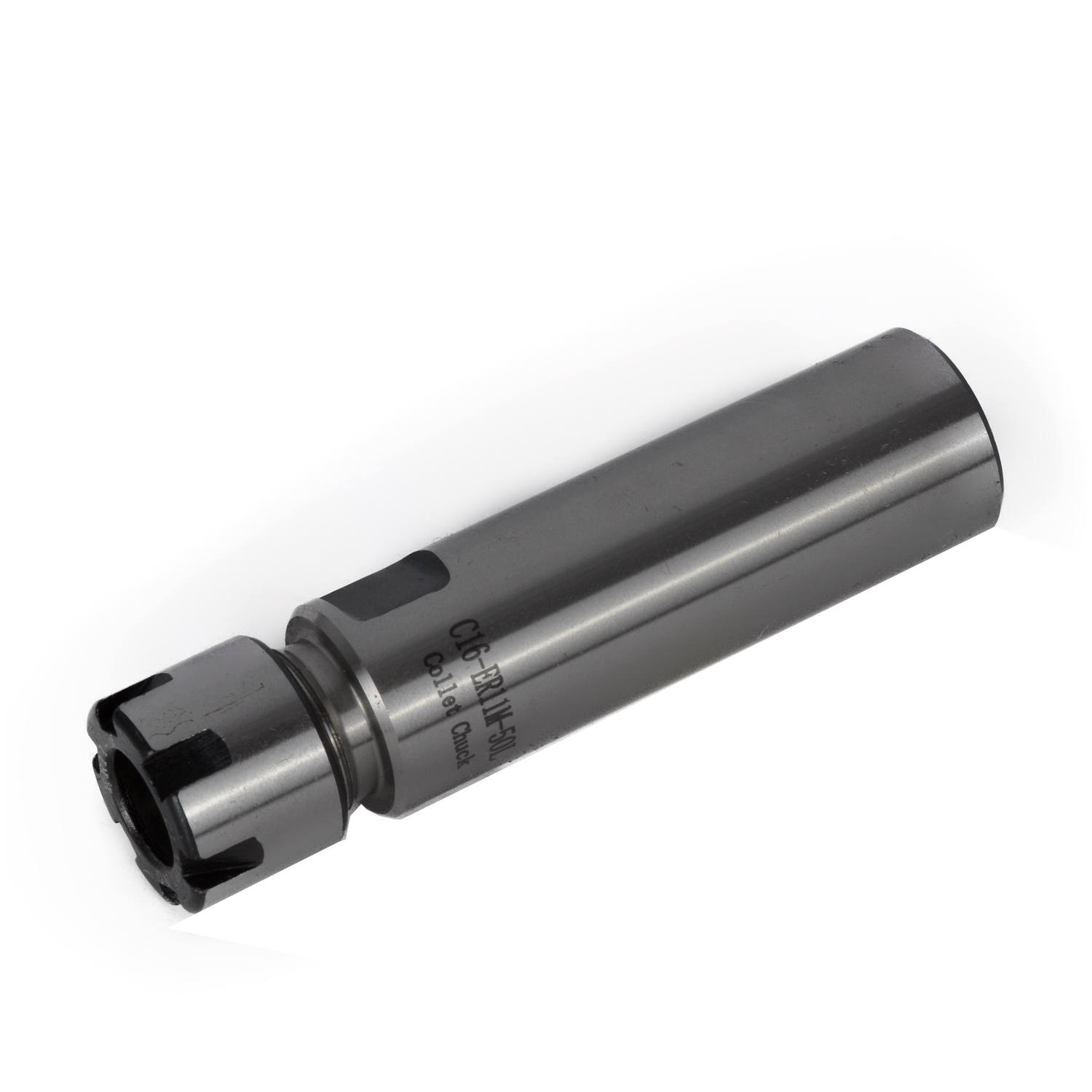

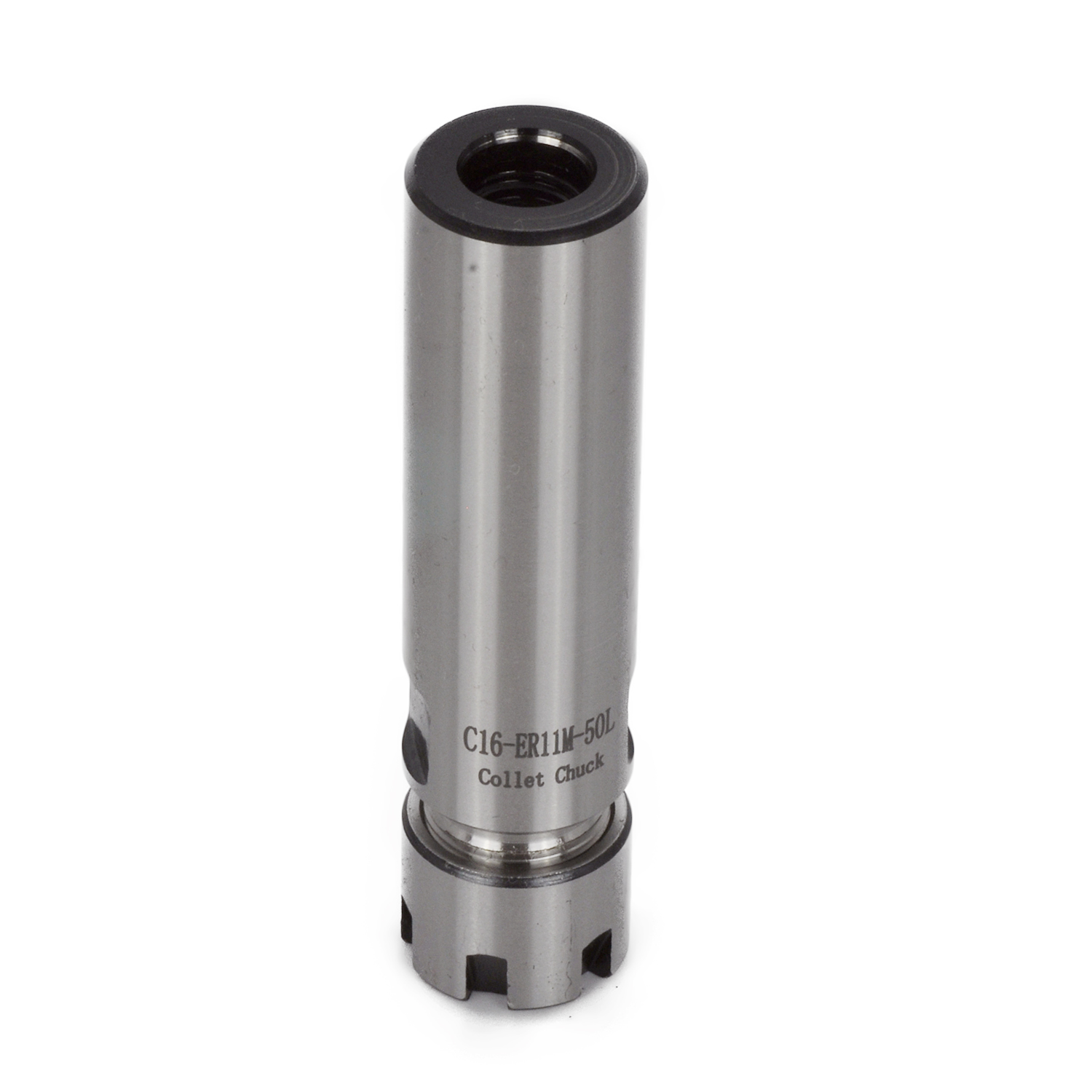

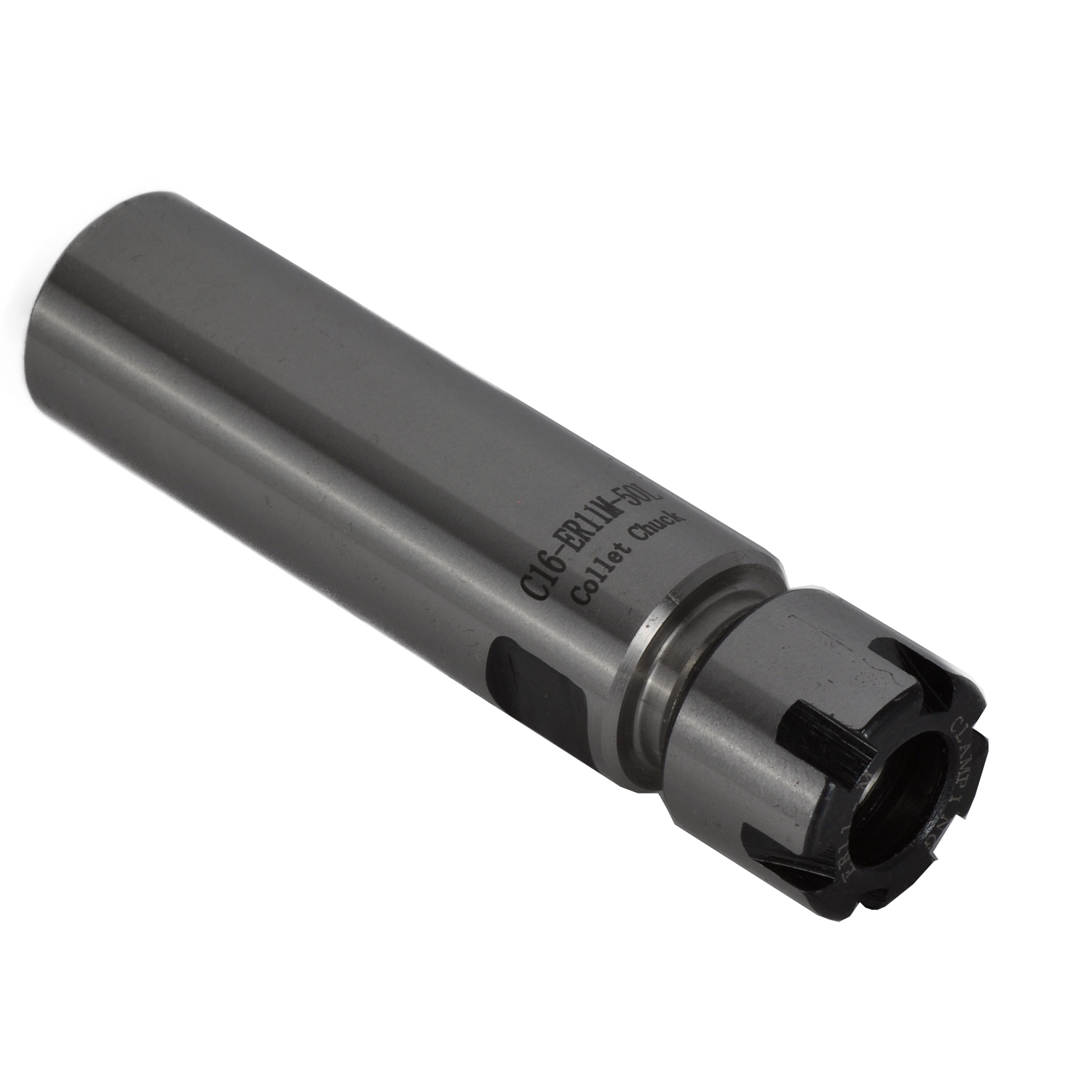

16MM X 100MM ER11 STRAIGHT SHANK COLLET HOLDER DRILL HOLDER
| MODEL | ER11 COLLET CHUCK | Â RUN OUT (TIR) | 0.0002″ | FLANGE DIAMETER | 0.6″ |
| HOLDER TYPE | ER COLLET CHUCK | CLAMPING RANGE | Â 1/16-1/4″ | CLAMPING SIZE | ER11 |
| SHANK TYPE | STRAIGHT TOOL HOLDER | DRAWBAR THREAD | NO | COLLET NUT | ER11 M |
| BALANCE | MAX 12,000RPM | SHANK DIAMETER | 16MM | COLOR | oxide black |
| OVERALL LENGTH | 70MM | SHANK LENGTH | 50MM | Â COOLANT | Â NO |
STRAIGHT SHANK COLLET CHUCK EXTENSION HOLDER
For all er11 collets
Made from alloy steel and hardness is HRC55
Coolant thru all the shank
Nut included
