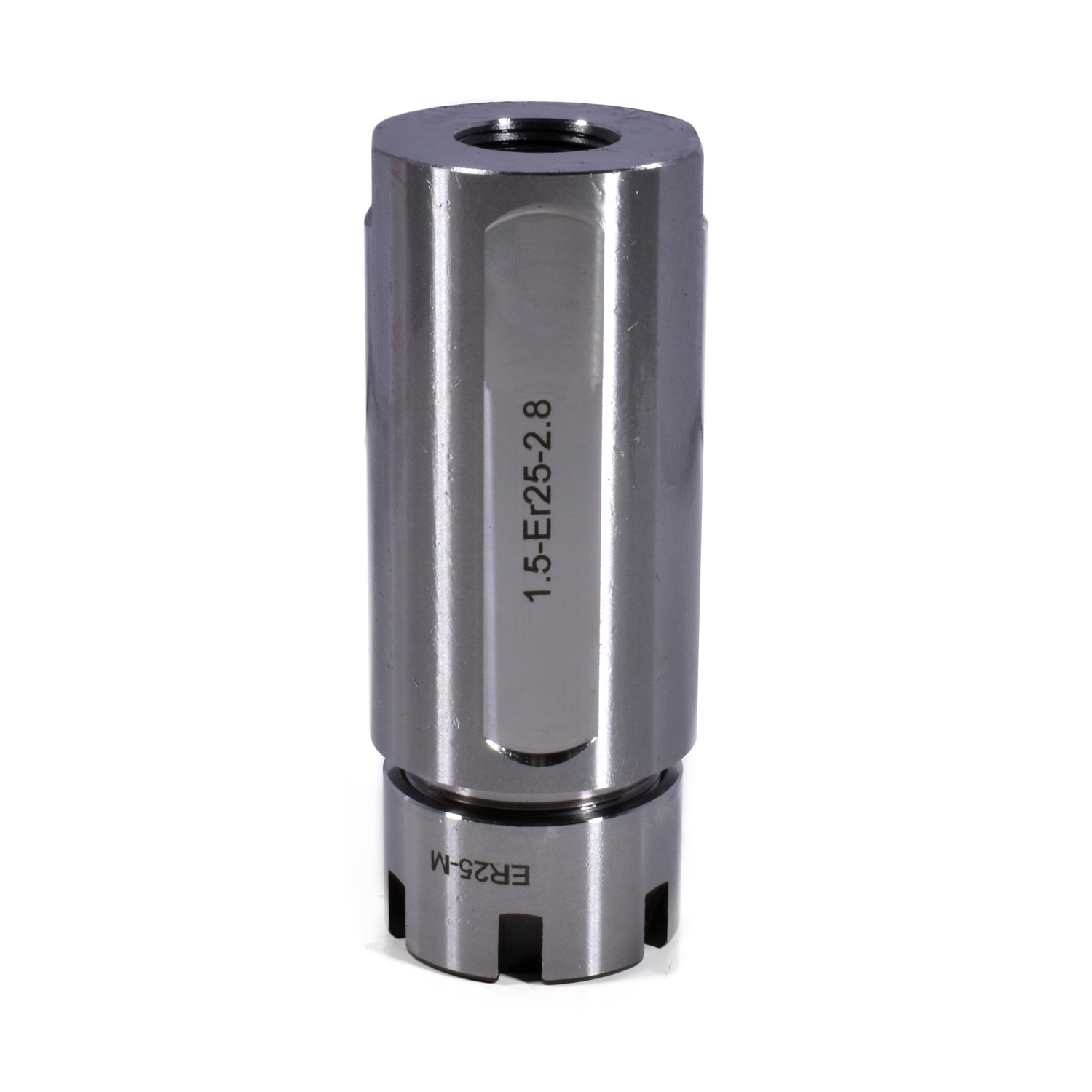

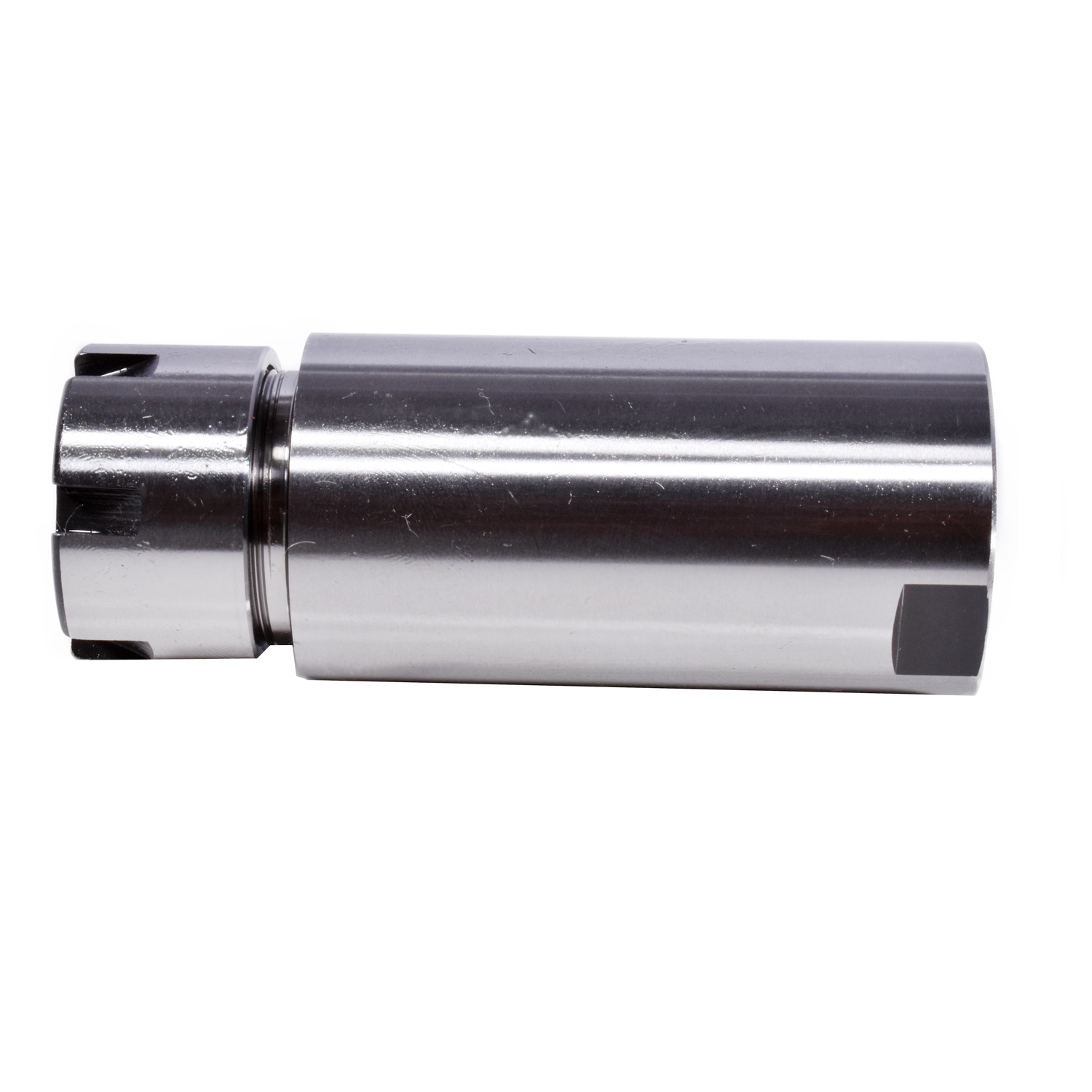

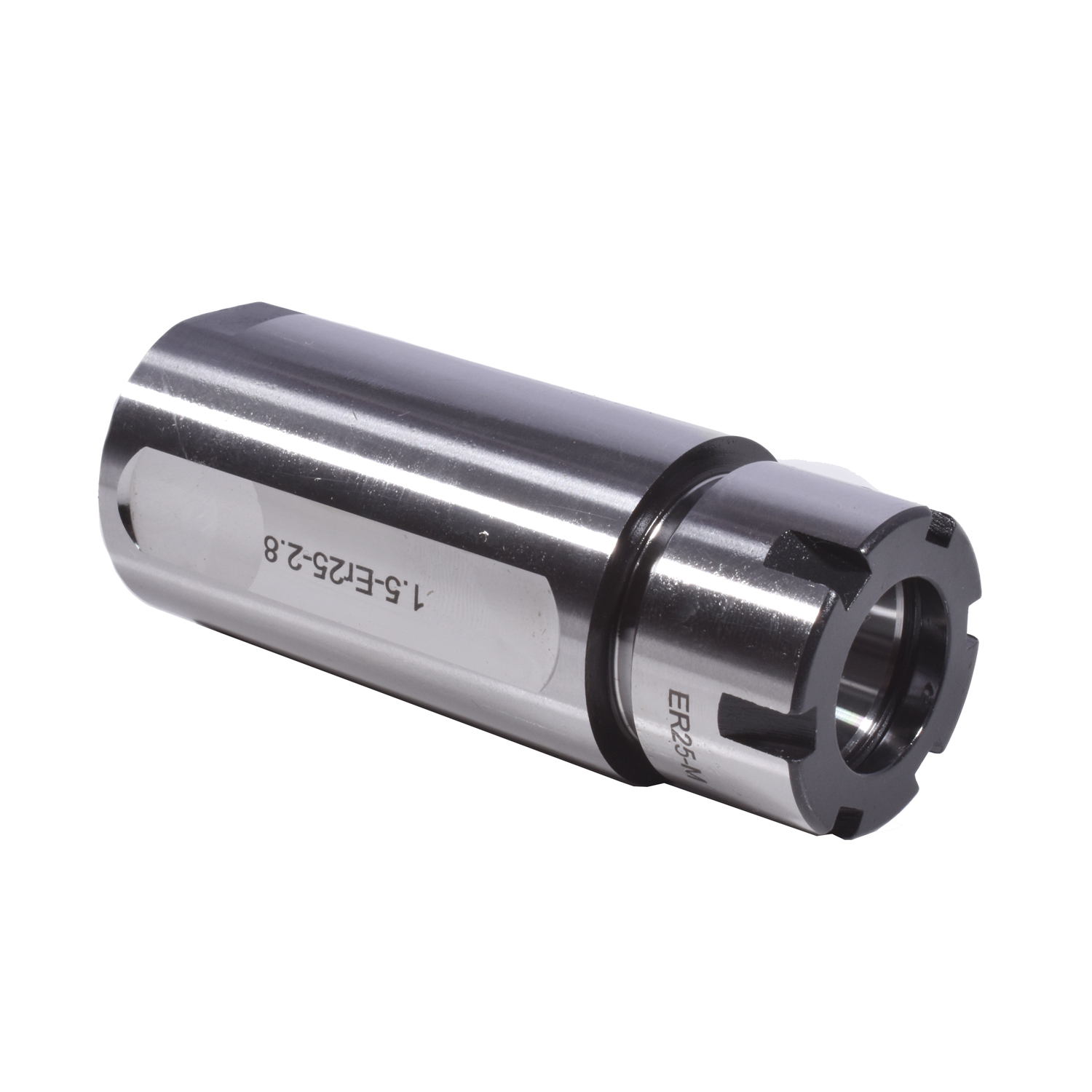

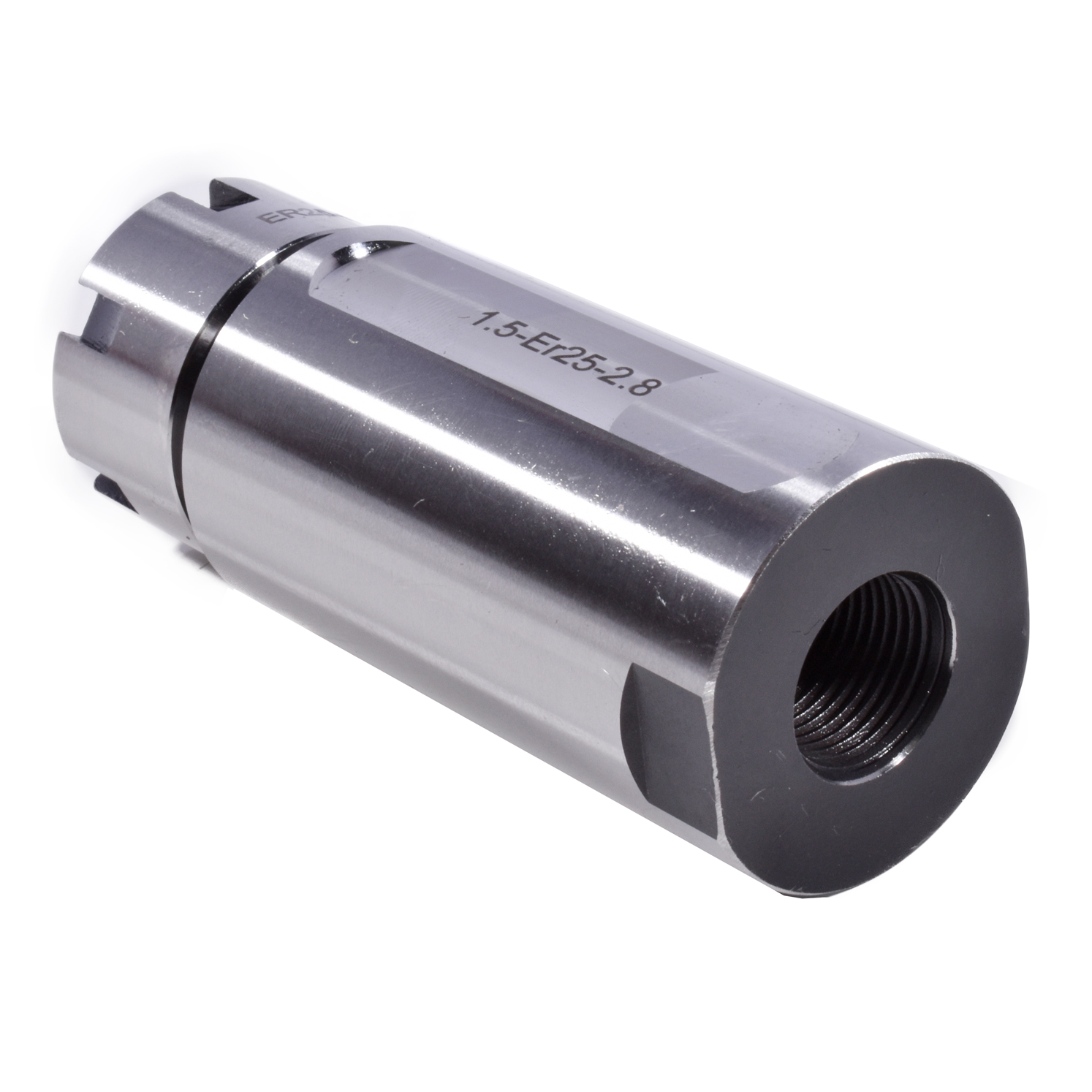

1.5″X 2.8″ ER25 STRAIGHT SHANK TOOL HOLDER COLLET CHUCK
| MODEL | ER25 COLLET CHUCK | Â RUN OUT (TIR) | 0.0002″ | FLANGE DIAMETER | 1.2″ |
| HOLDER TYPE | ER COLLET CHUCK | CLAMPING RANGE | Â 3/16-5/8″ | CLAMPING SIZE | ER25 |
| SHANK TYPE | STRAIGHT TOOL HOLDER | DRAWBAR THREAD | M12 | COLLET NUT | ER25 |
| BALANCE | MAX 15,000RPM | SHANK DIAMETER | 1-1/2 | COLOR | Oxide Black |
| OVERALL LENGTH | 3.8″ | SHANK LENGTH | 2.8″ | SHANK WITH FLAT | YES |
1.5″X 2.8″ ER25Â STRAIGHT SHANK TOOL HOLDER COLLET CHUCK
For all er25 collets
Made from alloy steel and hardness is HRC55
Coolant thru all the shank
Nut included
